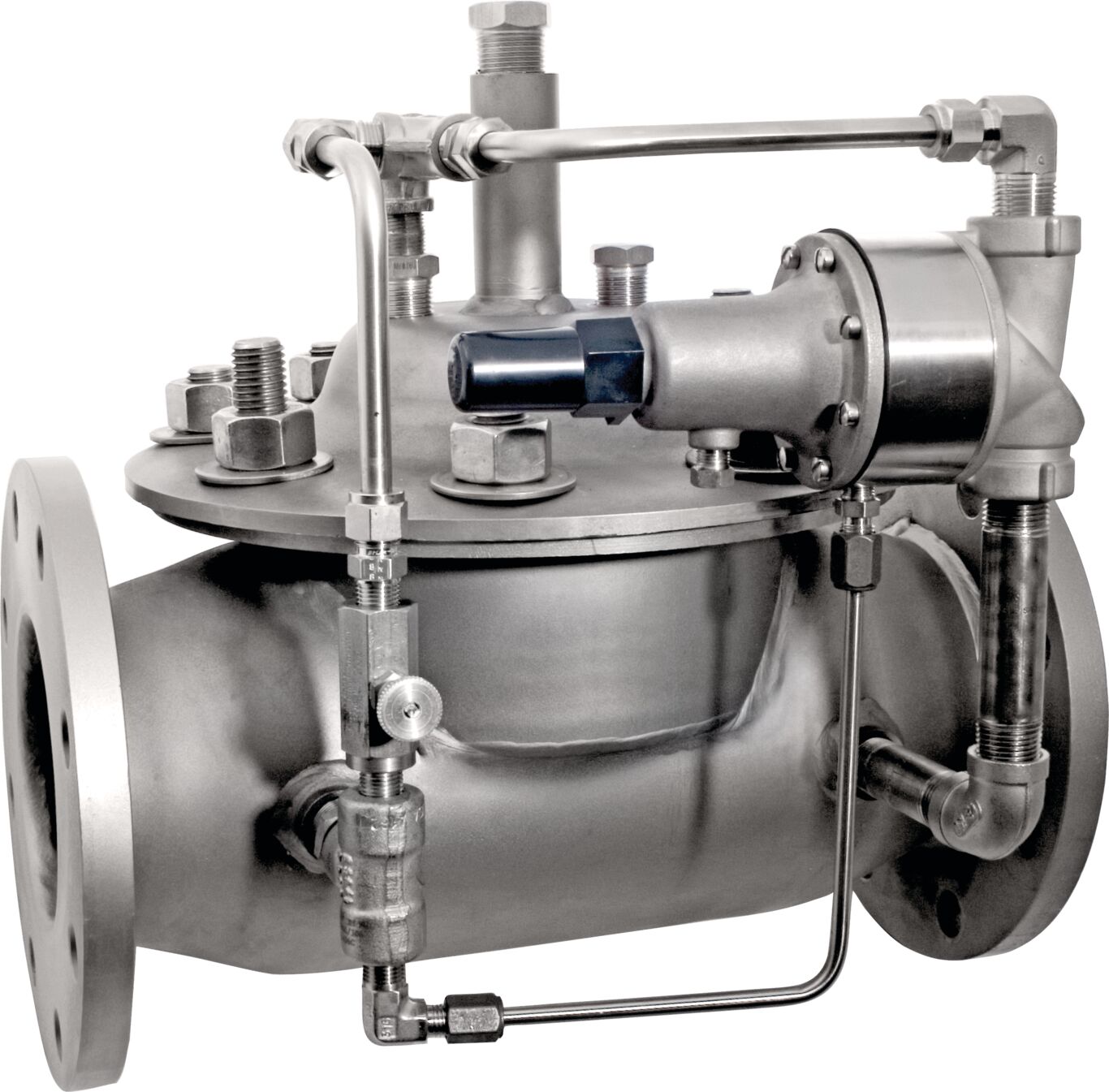

S116 Watts

Pressure Relief, Sustaining or Backpressure Control Valve

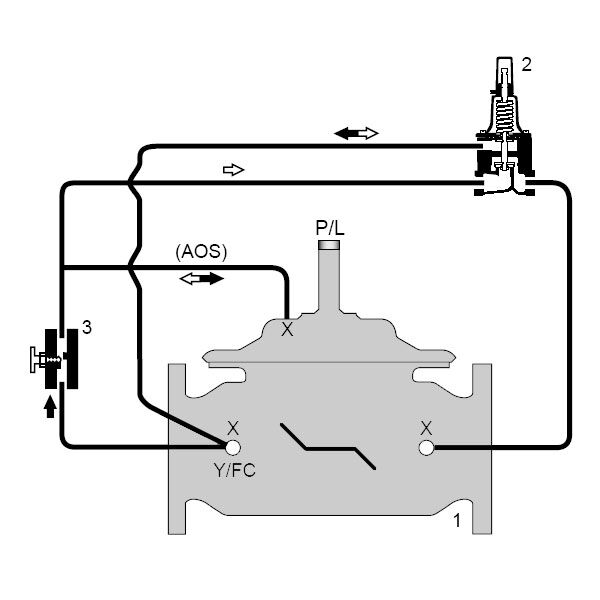

Series S116, S1116 Pressure Relief, Sustaining or Backpressure Control Valve is designed to permit flow when upstream pressure is above the adjustable setpoint of the control pilot, and throttle toward closed when upstream pressure falls below the adjustable setpoint. When the valve is installed off the main line on the branch of a tee, it serves as a Pressure Relief Control Valve. It is normally closed, and quickly opens when upstream pressure exceeds the pilot setting, relieving excess pressure. When valve installed in line connecting two distribution zones, the valve acts as a Pressure Sustaining Control Valve. When pressure in the upstream zone falls below the pilot setting, the valve modulates toward a closed position, sustaining pressure in the upstream zone. When the valve is installed in line on the discharge of a pump, it acts as Backpressure Control Valve. When pump discharge pressure falls below the pilot setting, the valve modulates toward a closed position, increasing backpressure against the pump.

Features

  • When installed "in line" connecting two distribution zones, the valve acts as a Pressure Sustaining Control Valve
  • When installed "in line" on the discharge of a pump, the valve acts as Backpressure Control Valve
  • Designed to permit flow when upstream pressure is above the adjustable setpoint of the control pilot
  • When installed "off the main line" on the branch of a tee, the valve serves as a Pressure Relief Control Valve

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific S116

Approval Information

For the latest product certification information and documentation, please visit our certification partner websites:
