670

Part of the 670 Series

Ordering Code: 670

UPC: 779655067001

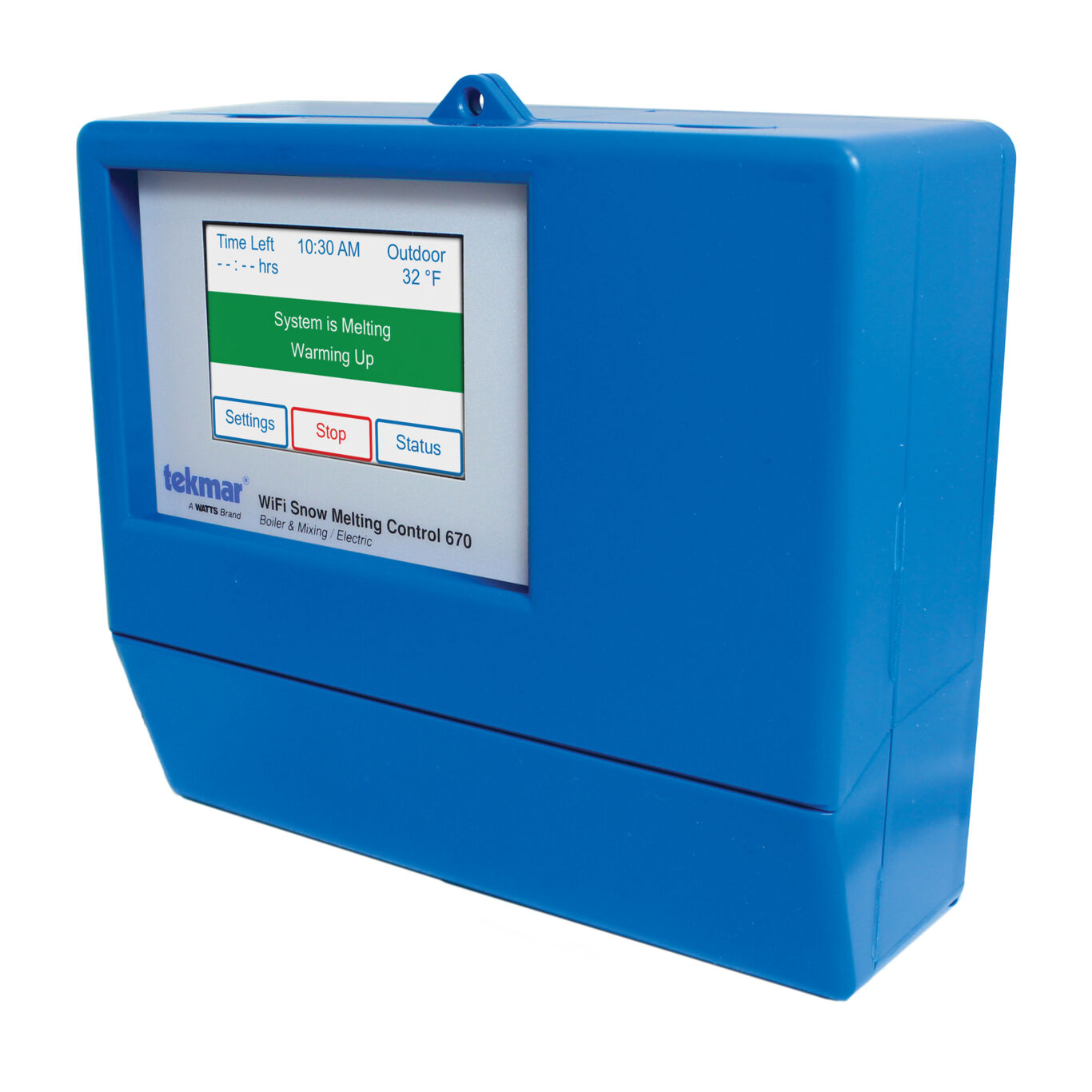

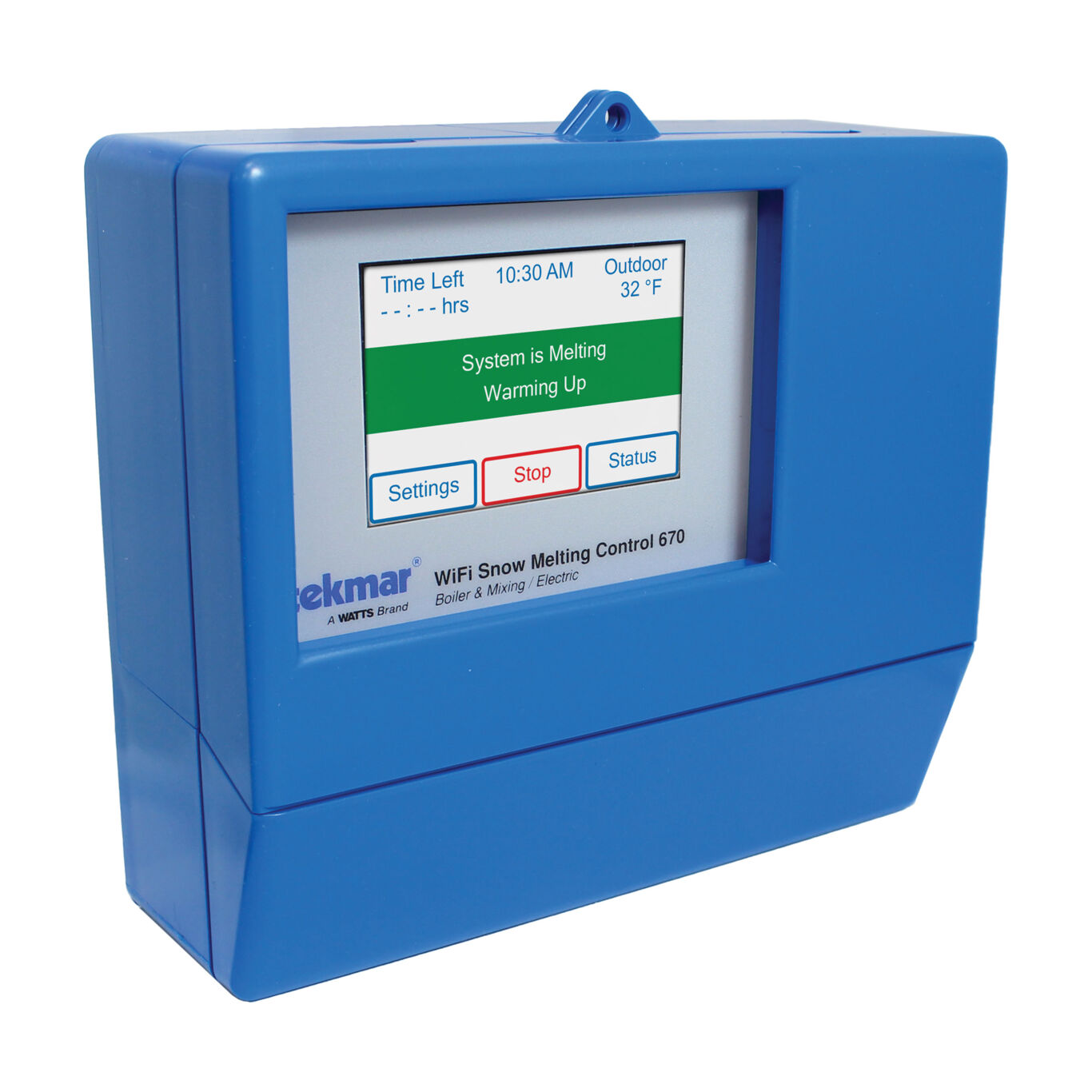

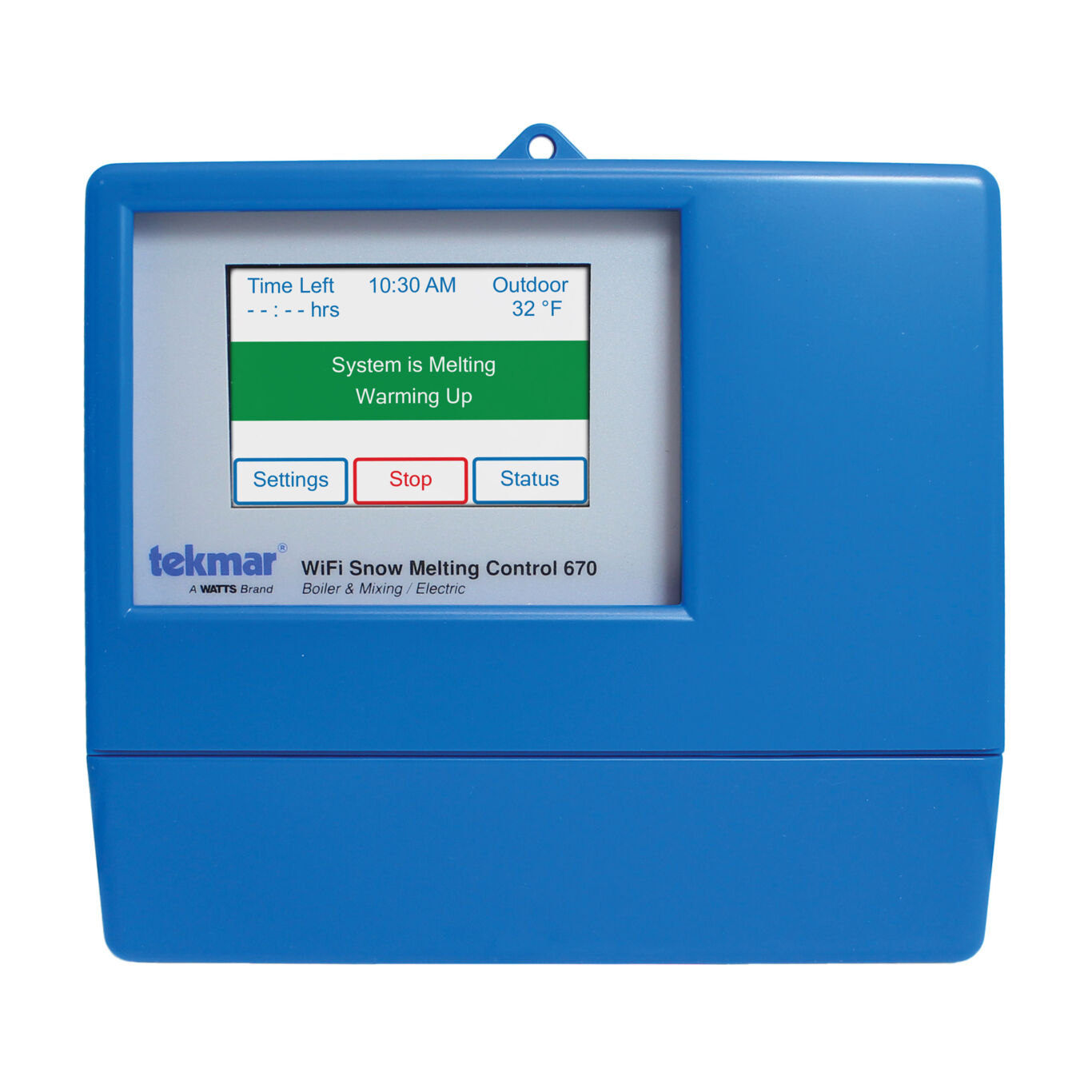

WiFi Snow Melting Control, Boiler and Mixing, Electric

The WiFi Snow Melting Control 670 operates hydronic and electric heating equipment designed to melt snow and/or ice from roads and walkway surfaces. The control works with the tekmar Snow/Ice Sensor 090 or Snow Sensor 095 to automatically detect snow or ice and operates a single boiler, steam valve, or electric cable to supply heat to the slab. Boiler return protection is provided to non-condensing boilers using a mixing valve or variable speed injection mixing pump. The tekmar Connect mobile application allows for remote operation and monitoring of the snow melting system from anywhere in the world.

Product Features

  • EconoMelt
  • Equipment exercising
  • Mobile app for iOS and Android, automatic software updates
  • Slab protection
  • Tandem snow/ice detection
  • Cold weather cut-out
  • Automatic snow/ice detection, Supports both inslab and retrofit aerial sensors
  • Auto storm, warm weather shut down
  • Supports multiple zones with priority, Idling
Specifications
Agency Approvals CSA C US, meets Class B: ICES & FCC Part 15
Ambient Conditions -4 to 122 degree F (-20 to 50 degree C), less than 90 percent RH non-condensing, outdoor use permitted when installed inside an NEMA 3 enclosure
Analog Mixing Output 0-10 V (dc) 500 ohms min impedance / 4-20 mA 1 k ohms max impedance
Boiler Modulation Output 0-10 V (dc) 500 ohms min impedance / 4-20 mA 1 k ohms max impedance
Communications Type WiFi 802.11n, 2.4 GHz, WPA2 encryption
Control Type Microprocessor control. This is not a safety (limit) control
Dimensions 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
Display 3.5" color touchscreen
Enclosure Material Blue PVC plastic
Enclosure NEMA Rating NEMA 1
Floating Mixing Output 230 V (ac), 5 A
Injection Mixing Output 230 V (ac), 2.4 A, 1/6 hp, fuse T2.5 A 250V
Manual Melt Call Short or 0 - 32 V(ac)
Mobile App Apple iOS 9 or higher, Android 5 or higher
Power Supply 115 V (ac)plus / minus 10 percent, 60 Hz, 20 VA
Relay 230 V (ac), 5 A, 1/3 hp
Sensor NTC thermistor, 10 k ohms at 77 degree F (25 degree Cplus / minus 0.2 degree C) Beta =3892
Snow Melting Control Type Snow Melting Control
