Part of the 301P Series

Ordering Code: 301P

UPC: 779655030105

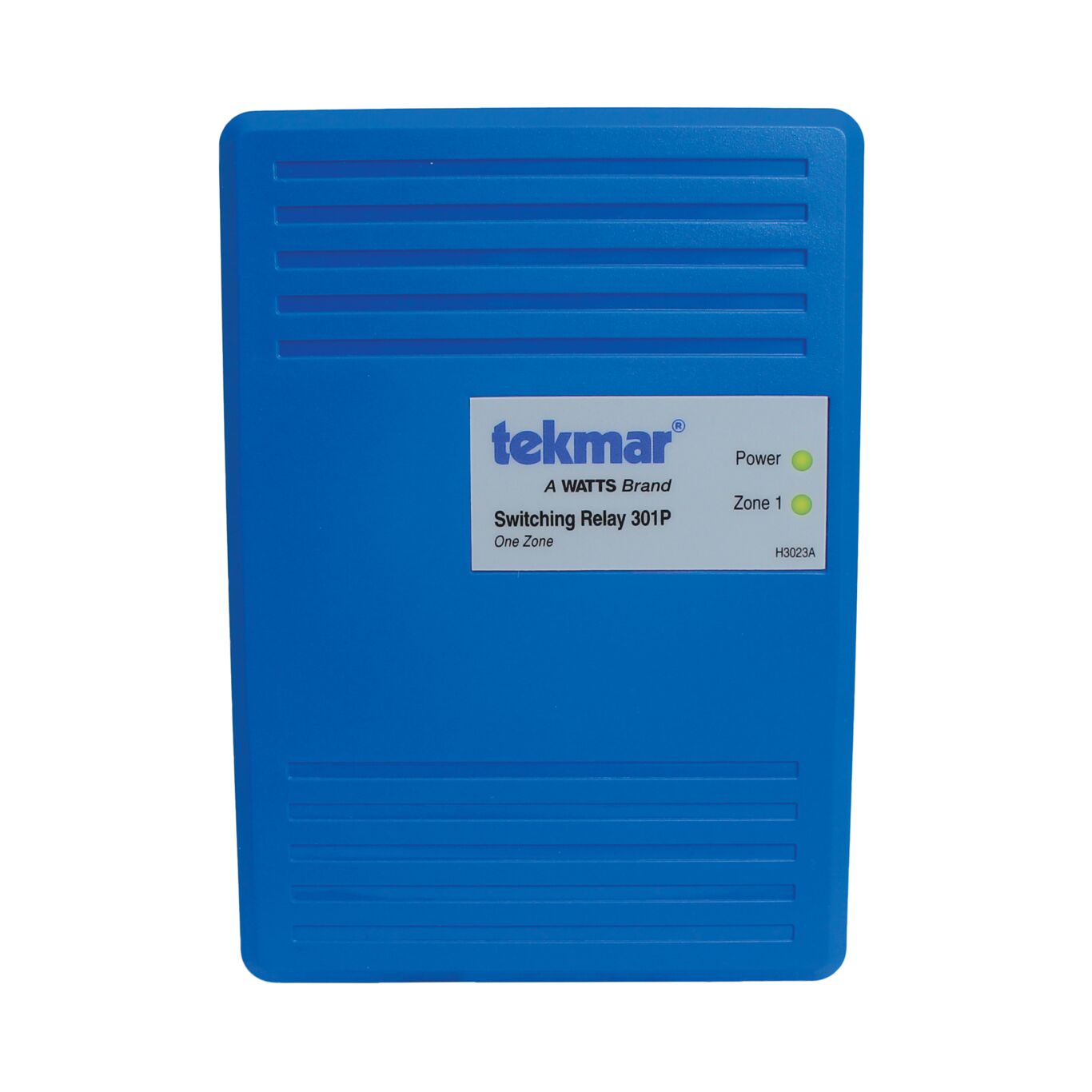

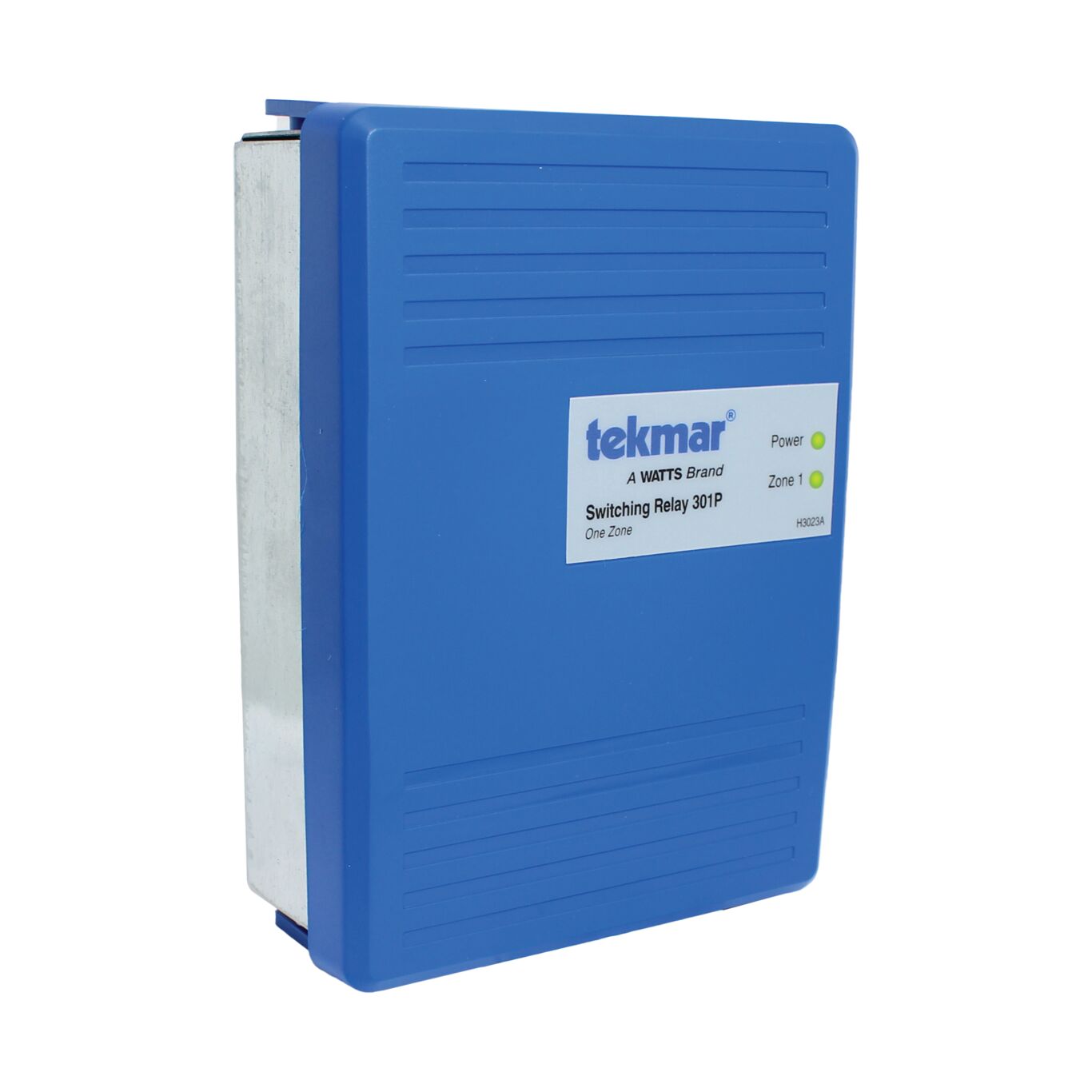

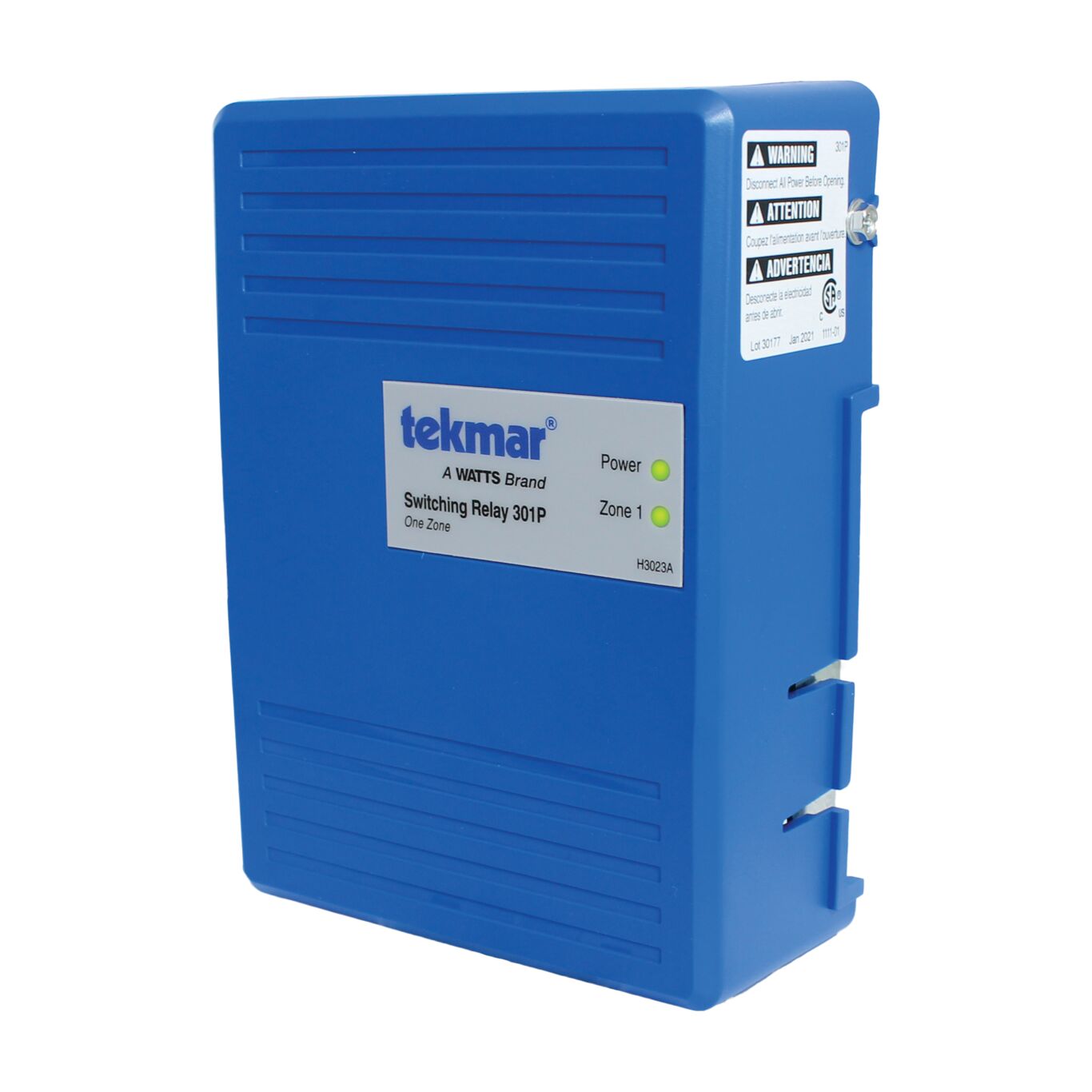

Switching Relay, One Zone


Quick Product Search

Quick links:

Control Selector

tekmar Home

  • Top, bottom and back conduit knockouts, fuse protects pump
  • 20 VA transformer
  • Spare fuse included
  • 3-year warranty
  • Thermal circuit breaker protects transformer
  • Compatible with all low voltage thermostats, pump exercising
  • CSA approved
  • Post purge, LED for power and zone
  • Hinged cover
Agency Approvals CSA C US
Ambient Conditions Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Control Load 7.5 VA at 115 V (ac)
Control Type Microprocessor control, this is not a safety (limit) control
Dimensions 6-11/16" H x 4-15/16" W x 2-7/16" D (169 x 123 x 62 mm)
Enclosure Material Cover: ABS plastic, Base: galvanized steel
Enclosure NEMA Rating NEMA 1
End Switch Relay 24 V (ac), 5 A
Fuses T5A 250 V slow blow, spare fuse included
Power Supply 115 V (ac) plus / minus 10 percent, 60 Hz, 5 A
Pump Relay 230 V (ac), 5 A, 1/3 hp
Transformer 20 VA at 24 V (ac), 16 VA available for thermostat
Zoning - Thermostat Type Switching Relay
