Help Page for Boiler Control 294

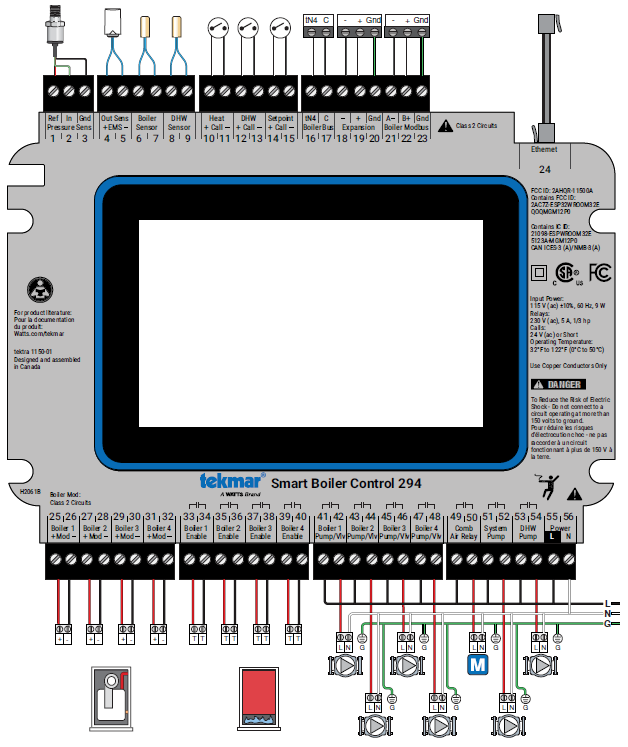

Wiring Schematic

Wiring Schematic



Control Memory Error

A memory error has been detected. The control will not operate the boilers until all settings have been reviewed. You may also reload factory defaults and use the Setup Wizard to configure the control. If the memory error keeps recurring after a power outage, the control may require replacement. Consult technical support for assistance.



Boiler Sensor Short Error

A short circuit is detected on the boiler supply temperature sensor input. The control will not operate the boilers until this fault is corrected.

To correct, remove the wires from the boiler supply sensor terminals, then use an electrical multimeter to measure the resistance. The resistance should be proportional to the temperature lookup table in the Installation and Operation Manual. Check the wires for damage. If the wires are OK, then replace the Universal Sensor 082. Once the fault is corrected, the error clears automatically.

Boiler Sensor Short Error



Boiler Sensor Open Error

An open circuit is detected on the boiler supply temperature sensor input. The control will not operate the boilers until this fault is corrected.

To correct, remove the wires from the boiler supply sensor terminals, then use an electrical multimeter to measure the resistance. The resistance should be proportional to the temperature lookup table in the Installation and Operation Manual. If the resistance is open circuit, check the wires for loose wiring connections. If the wires are OK, then replace the Universal Sensor 082. Once the fault is corrected, the error clears automatically.

Boiler Sensor Open Error



Domestic Hot Water Short Sensor Error

A short circuit is detected on the domestic hot water temperature sensor input. The control will not heat the domestic hot water tank until this fault is corrected.

To correct, remove the wires from the DHW sensor terminals, then use an electrical multimeter to measure the resistance. The resistance should be proportional to the temperature lookup table in the Installation and Operation Manual. If the resistance is short circuit, check the wires for damage. If the wires are OK, then replace the Universal Sensor 078. Once the fault is corrected, the error clears automatically.

Domestic Hot Water Short Sensor Error



Domestic Hot Water Open Sensor Error

An open circuit is detected on the domestic hot water temperature sensor input. The control will not heat the domestic hot water tank until this fault is corrected.

The DHW sensor is optional and the setting incorrectly turned on. Check if a sensor is installed. If not installed, set DHW Sensor to off. If installed, remove the wires from the DHW sensor terminals, then use an electrical multimeter to measure the resistance. The resistance should be proportional to the temperature lookup table in the Installation and Operation Manual. If the resistance is open circuit, check the wires for loose wiring connections. If the wires are OK, then replace the Universal Sensor 078. Once the fault is corrected, the error clears automatically.

Domestic Hot Water Open Sensor Error



Outdoor Sensor Short Error

A short circuit is detected on the outdoor air temperature sensor input. The control operates the central heating system at the boiler design temperature until this fault is corrected.

To correct, remove the wires from the outdoor air sensor terminals, then use an electrical multimeter to measure the resistance. The resistance should be proportional to the temperature lookup table in the Installation and Operation Manual. If the resistance is short circuit, check the wires for damage. If the wires are OK, then replace the Outdoor Sensor 070. Once the fault is corrected, the error clears automatically.

Outdoor Sensor Short Error



Outdoor Sensor Open Error

An open circuit is detected on the outdoor air temperature sensor input. The control operates the central heating system at the boiler design temperature until this fault is corrected.

To correct, remove the wires from the outdoor air sensor terminals, then use an electrical multimeter to measure the resistance. The resistance should be proportional to the temperature lookup table in the Installation and Operation Manual. If the resistance is open circuit, check the wires for loose wiring connections. If the wires are OK, then replace the Outdoor Sensor 070. Once the fault is corrected, the error clears automatically.

Outdoor Sensor Open Error



tekmarNet Outdoor Sensor Error

The control has not received an outdoor temperature report from the tekmarNet network. Check the tekmarNet network for the location of the outdoor sensor measurement. Check the sensor for open or short circuits and replace the Outdoor Sensor 070 if necessary. Once the fault is corrected, the error clears automatically.



Internet Outdoor Sensor Error

The control has not received an outdoor temperature report from the Internet. Please check that your Router is not blocking Port 443. Please contact an IT professional if assistance is required.



Pressure Sensor Open Circuit Error

An open circuit is detected on the pressure sensor input. The control continues to operate normally but is unable to detect pressure changes. If a pressure sensor is not installed, set the Pressure Sensor setting in the System menu to Off.

If a pressure sensor is installed, inspect the wires for loose connections. If the wires are OK, use an electrical meter to measure the DC voltage between the pressure sensor Ref and Gnd terminals. This should measure 5.0 V(dc). Then check the voltage between pressure sensor In and Gnd. This voltage should measure 0.5 to 4.5 V(dc) depending on the system pressure. If either voltage reading is abnormal then replace the Pressure Sensor 088. Once the fault is corrected, the error clears automatically.

Pressure Sensor Open Circuit Error



Pressure Sensor Short Circuit Error

A short circuit is detected on the pressure sensor input. The control continues to operate normally but is unable to detect pressure changes.

Inspect the pressure sensor wires for damage. If the wires are OK, use an electrical meter to measure the DC voltage between the pressure sensor Ref and Gnd terminals. This should measure 5.0 V(dc). Then check the voltage between pressure sensor In and Gnd. This voltage should measure 0.5 to 4.5 V(dc) depending on the system pressure. If either voltage reading is abnormal then replace the Pressure Sensor 088. Once the fault is corrected, the error clears automatically.

Pressure Sensor Short Circuit Error



Expansion Communication Error

The control has lost communication to all Smart Boiler Expansion. Boilers 5 through 16 will not operate until this error is corrected.

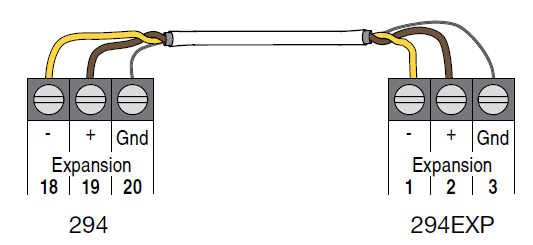

To correct, check the expansion communication wires +, -, and Gnd on both the control and expansion to ensure the wire polarity is correct, the wire insulation is stripped, and the wire terminals are tight.

Expansion Communication Error



Expansion 5 to 8 Lost Error

The control has lost communication to the Smart Boiler Expansion operating boilers 5 to 8. Boilers 5 through 8 will not operate until this error is corrected.

To correct, check that the expansion power light is on. If the power light is off, use an electrical multimeter to check the power line and neutral terminals for 115 V(ac). If the expansion power light is on, then check the expansion communication wires +, -, and Gnd on both the control and expansion to ensure the wire polarity is correct, the wire insulation is stripped, and the wire terminals are tight.

Expansion 5 to 8 Lost Error



Expansion 9 to 12 Lost Error

The control has lost communication to the Smart Boiler Expansion operating boilers 9 to 12. Boilers 9 through 12 will not operate until this error is corrected.

To correct, check that the expansion power light is on. If the power light is off, use an electrical multimeter to check the power line and neutral terminals for 115 V(ac). If the expansion power light is on, then check the expansion communication wires +, -, and Gnd on both the control and expansion to ensure the wire polarity is correct, the wire insulation is stripped, and the wire terminals are tight.

Expansion 9 to 12 Lost Error



Expansion 13 to 16 Lost Error

The control has lost communication to the Smart Boiler Expansion operating boilers 13 to 16. Boilers 13 through 16 will not operate until this error is corrected.

To correct, check that the expansion power light is on. If the power light is off, use an electrical multimeter to check the power line and neutral terminals for 115 V(ac). If the expansion power light is on, then check the expansion communication wires +, -, and Gnd on both the control and expansion to ensure the wire polarity is correct, the wire insulation is stripped, and the wire terminals are tight.

Expansion 13 to 16 Lost Error



tN4 Bus Error

Communication has been lost on the Boiler Bus. Check the tN4, C and R wires for each tN4 device. Check the polarity of the C and R wires. Check for loose or broken wires. The error message self clears once the error condition is corrected.



tN4 Device b:01 to b:24 Lost Error

Communication is lost to tekmarNet device with address b:##. The ## varies from 01 to 24.

To correct, ensure that there is power to the lost device. Trace the wires from the control to the lost device looking for loose or damaged wires. The error message self clears when the error condition is corrected. If the tN4 device is deliberately removed, go to the Reset menu and press tekmarNet Device Reset.



tN4 Duplicate Master Error

More than one tN4 system control has been detected on the tN4 Boiler Bus. The 294 is a “Master Device” and no other tekmarNet boiler control can be added to the tN4 Boiler Bus terminals.

To correct, remove all other tekmarNet boiler controls from the tN4 Bus.



tN4 Device b:01 to b:25 Error

A tN4 thermostat or device with address b:## has an error that requires corrective action. The ## varies from 01 to 25. Locate the tN4 device and troubleshoot using the device’s Installation and Operating Manual.



Ethernet Disconnected Error

The Ethernet is not connected to a network. Check the Ethernet cable connection to the control and the Router or Switch. Check that the Router or Switch is powered on and operating correctly.



Wi-Fi Disconnected Error

The Wi-Fi network could not be found. Please check that the Wi-Fi network name was entered correctly and that the Router signal is medium to high strength. If necessary, please reconfigure your Wi-Fi network.



Wi-Fi Invalid Password Error

The Wi-Fi Password was not accepted. Please check that the password was entered correctly. If necessary, please reconfigure your Wi-Fi network.



DHCP Address Error

The router has not assigned the control an IP address. Please check the router’s configuration settings and ensure that the DHCP server is enabled and enough IP addresses are available. Please contact an IT professional for assistance.



Internet Unavailable Error

The control is unable to communicate to the Watts cloud through the Internet. The error will automatically clear once Internet communications are established. You may also set the Internet Connection Type to Off to clear the error.

To correct:
1. Check the control’s Internet DNS 1 and DNS 2 settings
2. Check that the router firewall is not blocking or filtering MAC addresses
3. Check that the router firewall is not blocking outbound port 23



Watts® OnSite Error

The control is unable to connect to Watts OnSite. Please check that your router is not blocking outbound ports 443 or 8883. Please contact an IT professional for assistance.



Boiler Plant No Heat Alert

The boiler supply temperature did not increase within the boiler alert time. There is likely a mechanical failure with either a boiler or circulator that requires immediate attention. The control operates normally while this alert is present.

To reset the alert, press the ‘X’ button to dismiss the error message on the home screen.



Boiler High Temperature Alert

The boiler supply temperature exceeded the boiler high temperature alert threshold. There is likely a mechanical failure with either a boiler or circulator that requires immediate attention. The control operates normally while this alert is present.

The alert clears when the boiler supply temperature falls 2°F (1°C) below the boiler high temperature alert threshold.



Boiler Low Temperature Alert

The boiler supply temperature fell below the boiler low temperature alert threshold. There is likely a mechanical failure with either a boiler or circulator that requires immediate attention. The control operates normally while this alert is present.

The alert clears when the boiler supply temperature rises 2°F (1°C) above the boiler low temperature alert threshold.



High Pressure Alert

The system pressure exceeded the high pressure alert threshold. There may be a problem with the system expansion tank or makeup water feed. The control operates normally while this alert is present.

The alert clears when the pressure falls 1 psi (7 kPa) below the high pressure alert threshold.



Low Pressure Alert

The system pressure exceeded the low pressure alert threshold. There may be a leak in the system. The control operates normally while this alert is present.

The alert clears when the pressure rises 1 psi (7 kPa) above the low pressure alert threshold.



Boiler 01 to 16 Error

The control has read an error code status from boiler 01 to 16 through the modbus communication channel.

To correct the issue, please lookup the error code in the boiler manufacturer’s manual.

Manufacturer: List of select boiler manufacturers

Series: List of select supported boiler series

Model: List of select supported boiler models

Code: Modbus error code from boiler



Modbus Bus Error

The control has detected a problem with the boiler modbus communication. Check the modbus wire polarity, the cable length, connection to the boiler, and connection of any terminating resistors.

Modbus Bus Error



Modbus Boiler 01 to 16 Lost Error

The control is unable to communicate to Boiler 01 to 16 through Modbus. Please check that the boiler manufacturer, make and model are set correctly. Please contact tekmar technical support for further assistance.



Boiler 01 to 16 Service Hours Alert

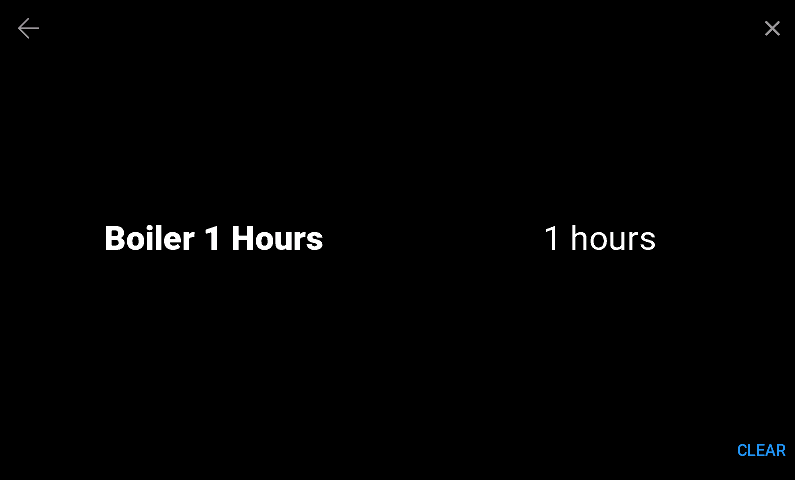

The boiler run time has exceeded the recommended boiler service hours alert interval. Once maintenance has been completed, the service interval can be reset in the boiler status screen.

Boiler 01 to 16 Service Hours Alert



Boiler 01 to 16 Service Cycles Alert

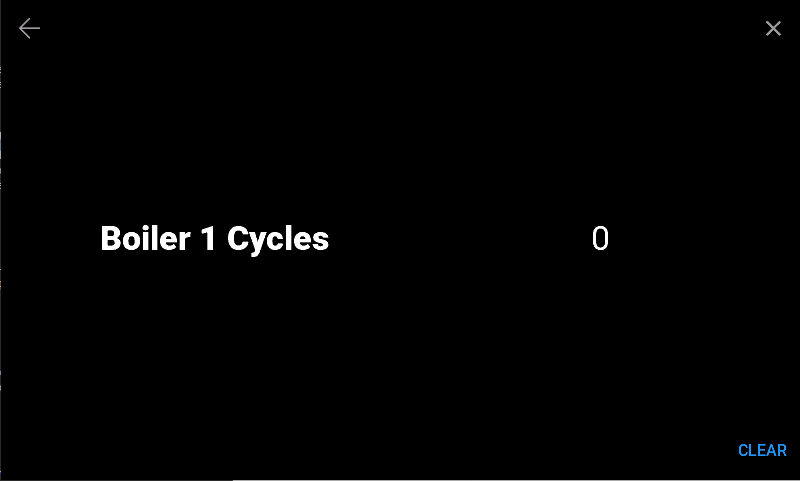

The boiler has exceeded the recommended boiler service cycles. Once maintenance has been completed, the service interval can be reset in the boiler status screen.

Boiler 01 to 16 Service Cycles Alert



Unsupported tN4 Device

An unsupported tN4 device is connected to tekmarNet communication network. This may include the Mixing Expansion Modules 440, 441, and 444. The error will clear automatically one this device is removed.



Hardware Fault

An internal hardware fault has been detected. Please power the control off then back on. If the hardware fault reoccurs, the control may require replacement. Please contact technical support for assistance.



Resistance versus Temperature Chart

Resistance versus Temperature Chart
