Part of the Boiler and Mixing Controls Series

Ordering Code: 361

UPC: 779655036107

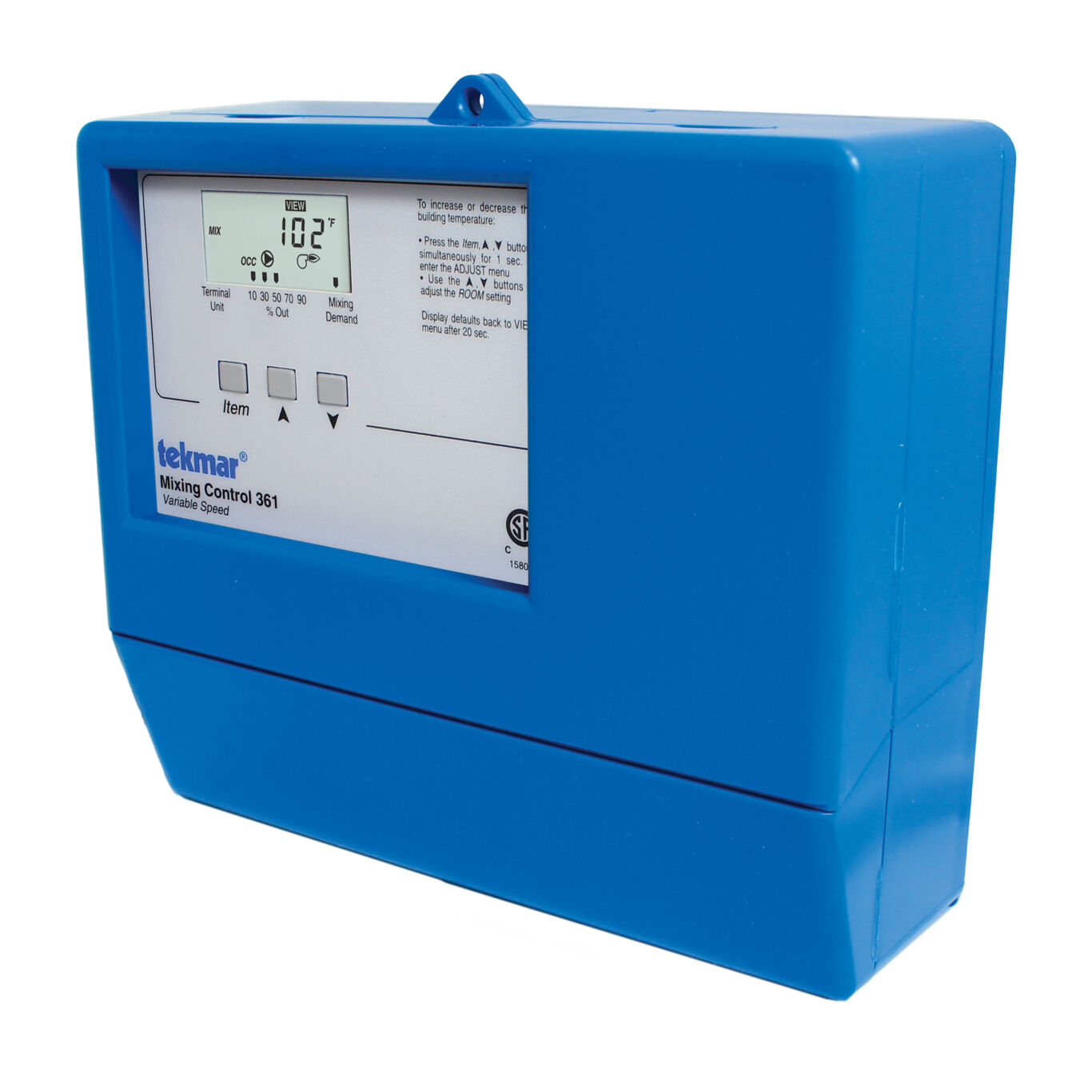

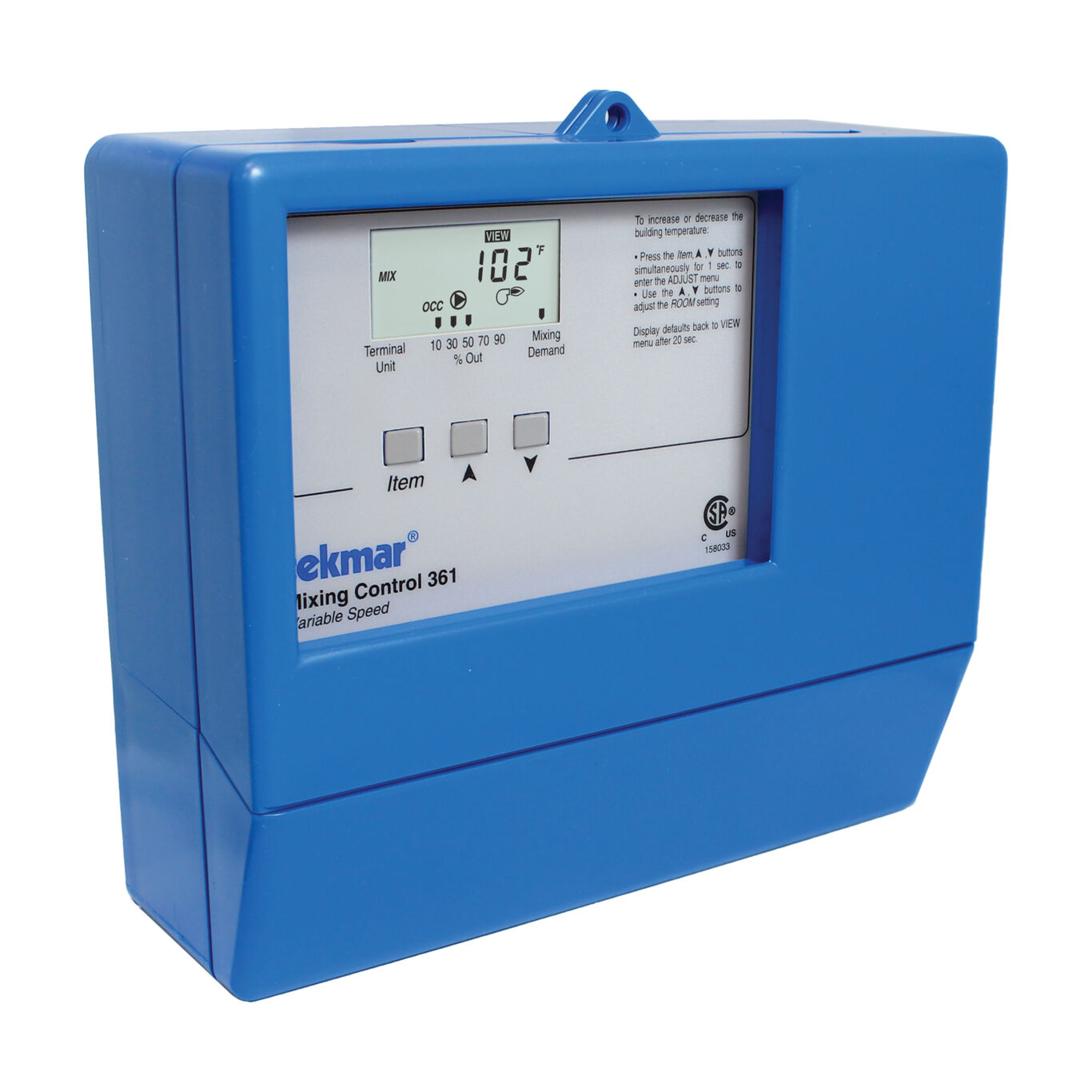

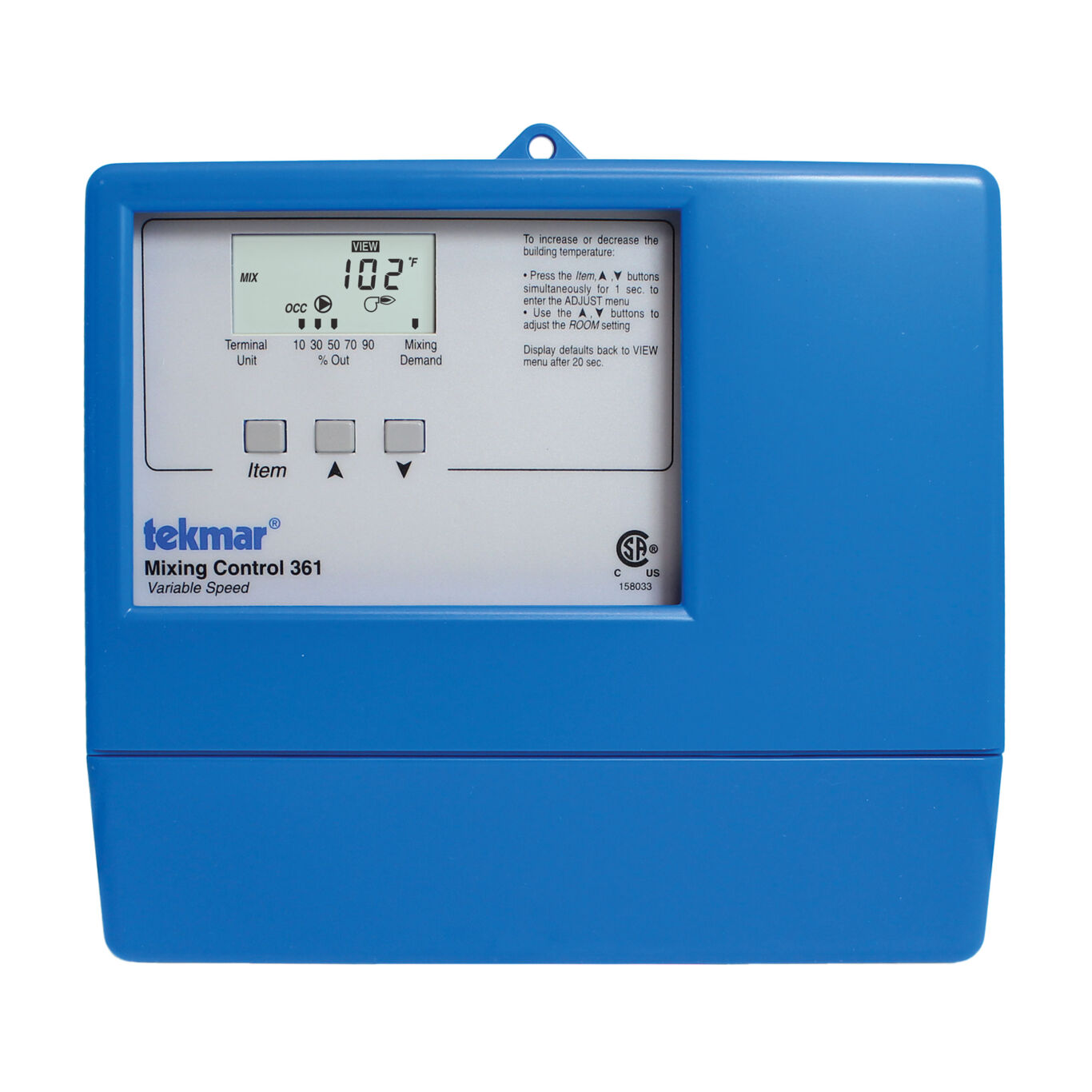

Variable Speed Mixing Control


Quick Product Search

Quick links:

Control Selector

tekmar Home

  • Outdoor temperature reset, indoor temperature feedback (with optional indoor sensor)
  • Warm weather shut down, boiler load control
  • Automatic boiler differential, variable speed pump control
  • Powered mixing system pump output, quick setup for easy installation and programming of control
  • User comfort adjustment to increase or decrease building space temperature
  • Advanced settings to fine-tune building requirements
  • Test sequence to ensure proper component operation
  • Setback input for energy savings
  • CSA C US certified (approved to applicable UL standards)
Agency Approvals CSA C US, meets class B: ICES & FCC Part 15
Ambient Conditions Indoor use only, 32 to 104 degrees F (0 to 40 degrees C), RH less than or equal to 90 percent Non-condensing
Control Type Microprocessor control, this is not a safety (limit) control
Demand 20 to 260 V (ac) 2 VA
Dimensions 6 5/8 IN H x 7 9/16 IN W x 2 13/16 IN D (170 x 193 x 72 MM)
Enclosure Material Blue PVC plastic
Enclosure NEMA Rating NEMA 1
Hydronic - HVAC Control Type Mixing Control
Power Supply 120 V (ac) plus / minus 10 percent, 50/60 Hz, 1650 VA
Relay 240 V (ac) 10 A 1/3 hp
Sensor NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
Variable Pump 120 V (ac) 2.4 A (FLA) 5 A (LRA) fuse T2.5 A 250 V
