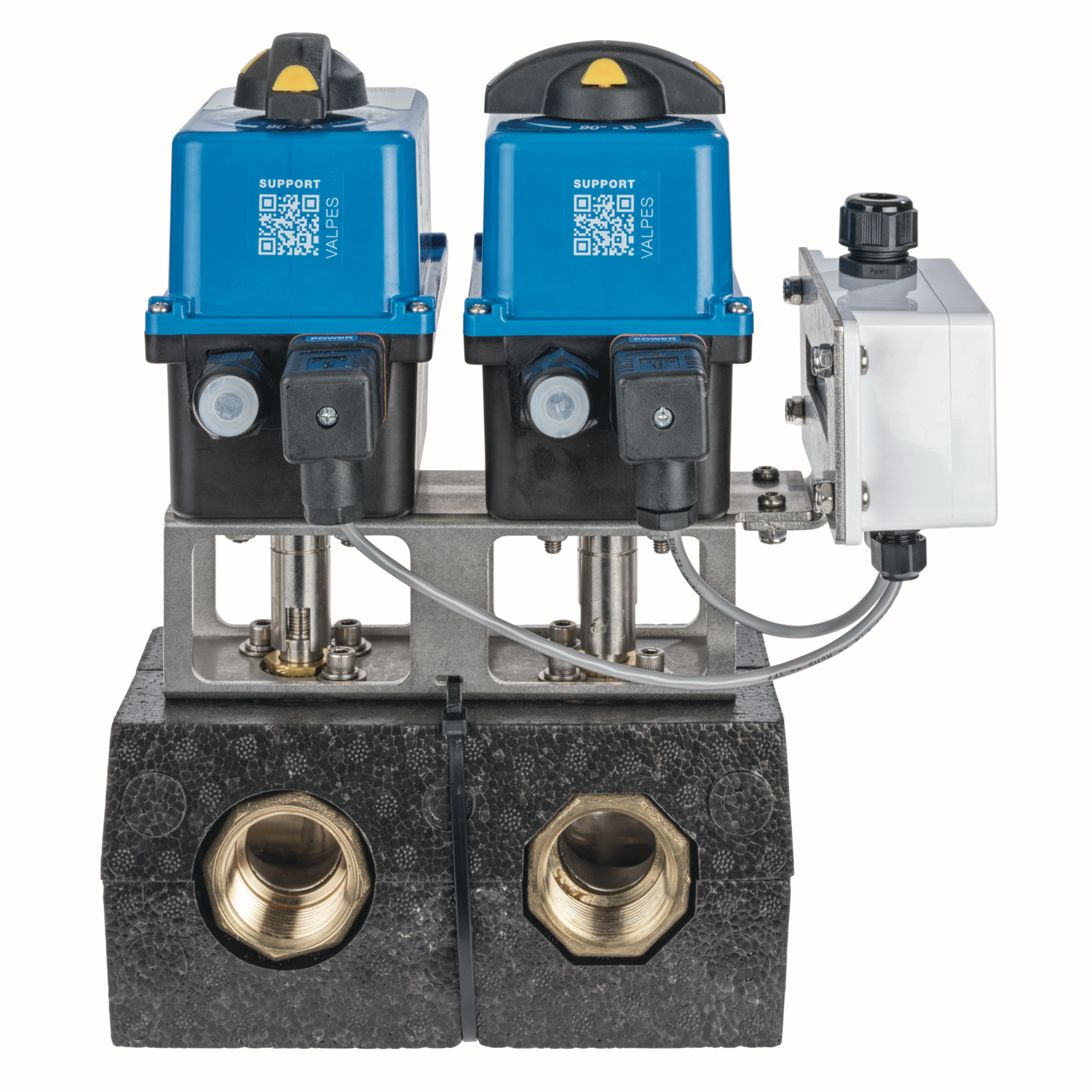

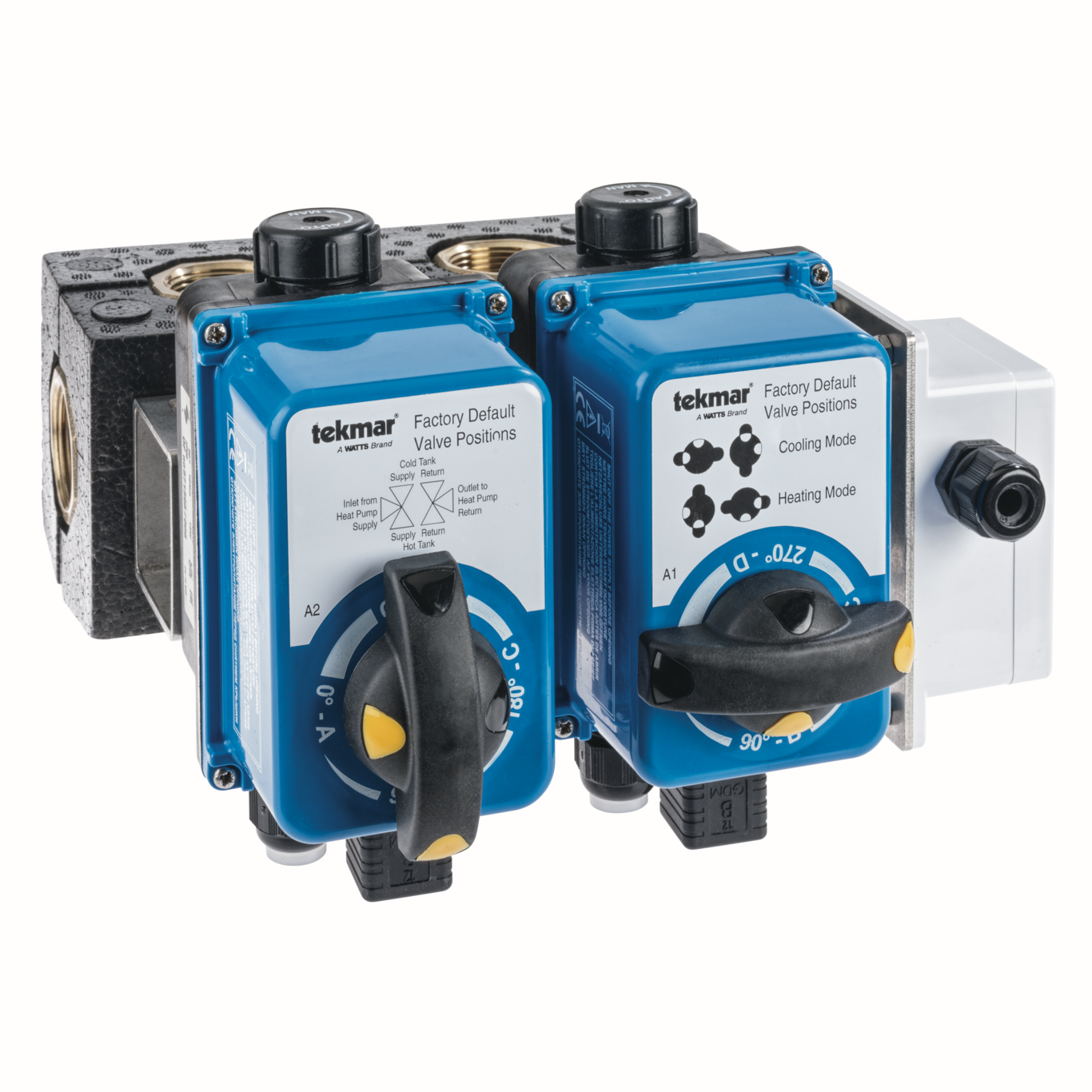

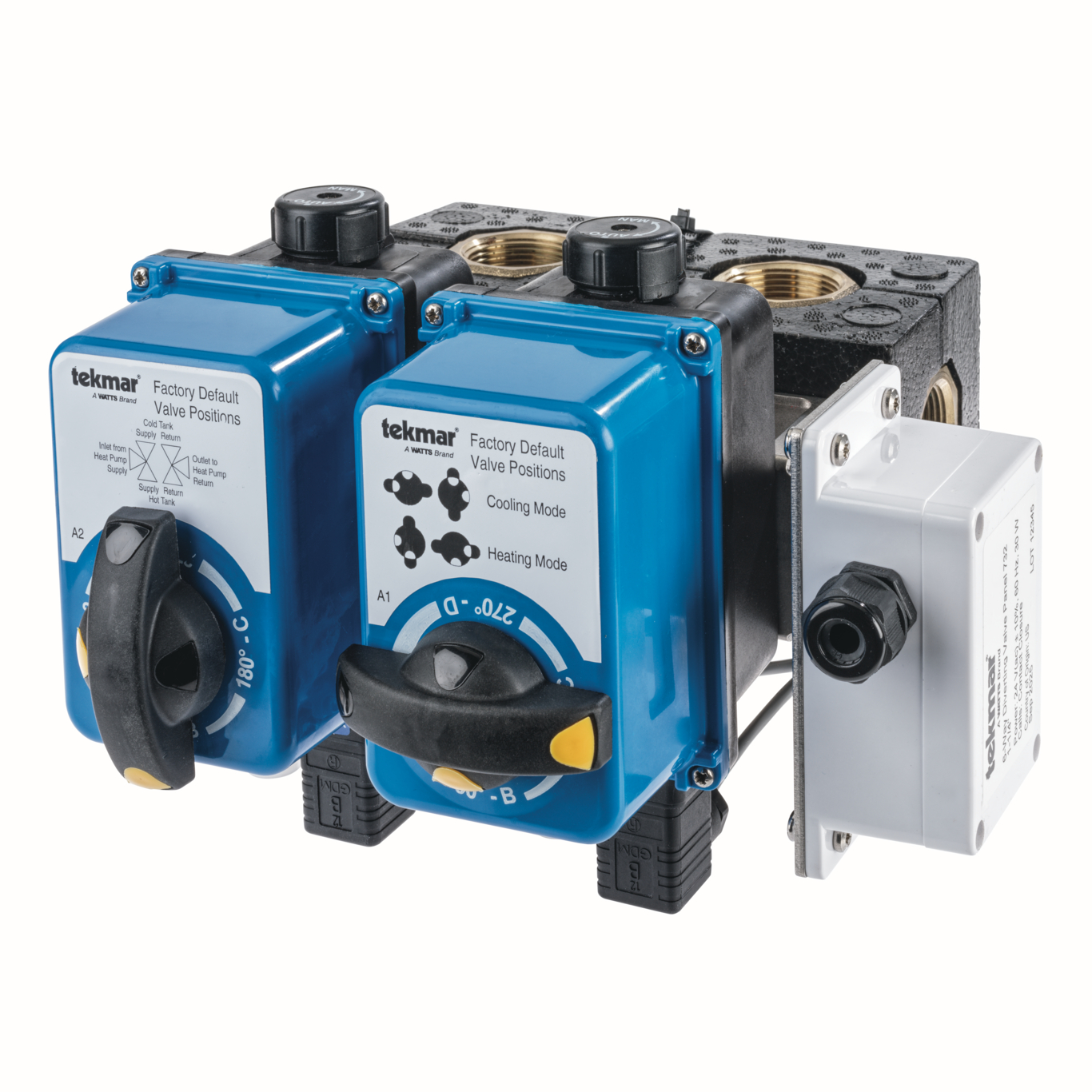

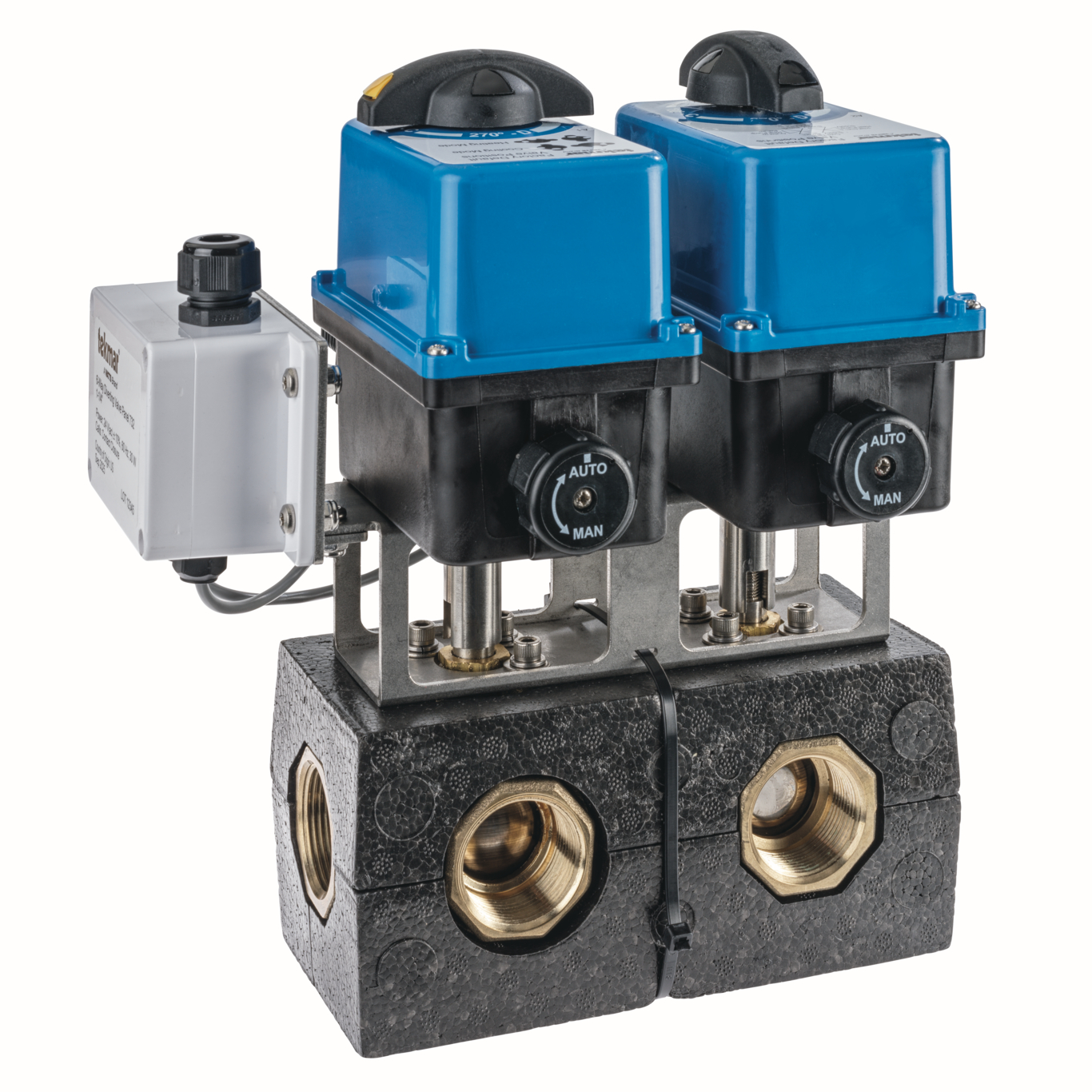

6-Way Diverting Valve Panel, 1 1/4 IN Brass, Insulated
The 6-way Diverting Valve Panel 732 operates dual 3-way valves with actuators to divert water between hot and chilled water tanks in 4-pipe configuration heat pump systems. The assembly features 1 1/4 inch female NPT threads and comes pre-insulated to prevent sweating. A built-in relay synchronizes the valves for efficient operation and can be reversed if the piping direction is installed inversely.
Features
- Designed to work with 4-pipe heat pump systems
- 1 1/4 inch connection size
- Brass construction to resist corrosion
- Valves are insulated to prevent sweating
- Relay logic can be reversed in case of inverse installation in the field
| Specifications | |
|---|---|
| Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), less than 90 percent RH non-condensing |
| Control Signal Input | 24V (ac), floating action |
| Dimensions | 2.25 IN H x 11 IN W x 7.5 IN D (311 x 279 x 191 mm) |
| Enclosure Material | ABS plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Markets | Commercial Buildings with BAS, Multifamily Homes, Single-Family Homes, Small Commercial Buildings |
| Motor Speed | 11s (1/4 turn) |
| Power Supply | 24V (ac) plus/minus 10 percent, 60 Hz |
