294KIT

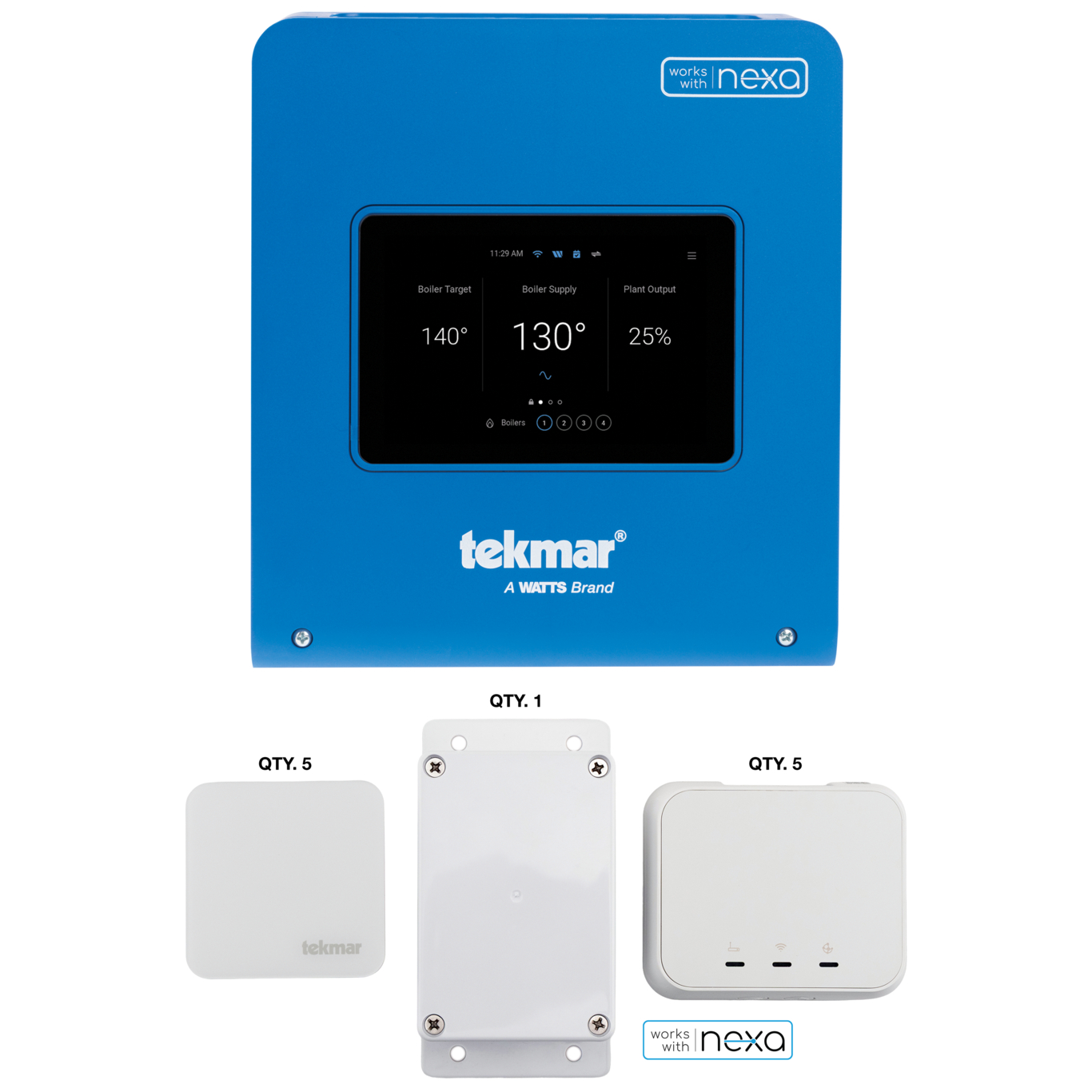

The Smart Boiler Control 294KIT provides central and indirect domestic hot water heating or volume domestic hot water heating by operating up to four boilers. This can be expanded in groups of four boilers through the use of expansion controls up to a maximum of sixteen boilers. The Smart Boiler Control 294 operates both condensing and non-condensing boilers that are either modulating, single, two, three or four-stage to provide a flexible, cost-effective hybrid boiler plant solution. The Nexa(TM) by Watts web and mobile applications provide real-time remote monitoring, setting adjustments, and notifications. The 294KIT comes with wireless mesh indoor and outdoor sensors and mesh network extenders to set up a mesh network for advanced indoor feedback.
Features
- Includes 1x tekmar Mesh Wireless Outdoor Sensor 043
- Includes 5x tekmar Mesh Wireless Indoor Sensor 042
- Includes 5x tekmar Mesh Network Extender 041
- Remote access using Nexa by Watts web/mobile app and notifications through email, or text
- Operates 4 boilers, expandable up to 16 using expansion controls
- Sequential or parallel staging for condensing and non-condensing boiler groups
- Central heating using outdoor reset, indirect DHW, dedicated DHW, setpoint, and tekmarNet calls
- Supports reverse return, primary-secondary, and variable primary flow piping systems
- 5-inch color touchscreen with Setup Wizard for simplified installation
| Specifications | |
|---|---|
| Agency Approvals | CSA C US, FCC Part 15B, ICES-003 Class A |
| Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), less than 90 percent RH Non-condensing, Altitude Less Than 6560 feet (2000 m), Installation Category II, Pollution Degree 2 |
| Calls | 24 V (ac) or Short |
| Control Type | Microprocessor control, is not a safety/limit control |
| Dimensions | 9 IN H x 8 IN W x 2 11/32 IN D (229 x 203 x 60 MM) |
| Display | 5 IN color touchscreen |
| Enclosure Material | Blue ABS Plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Markets | Multifamily Homes, Single-Family Homes, Small Commercial Buildings |
| Modulating Output | 0-10 V (dc) 500 ohms minimum load impedance / 4-20 mA 1 k ohms max load impedance |
| Power Supply | 115 V (ac) plus / minus 10 percent, 60 Hz, 9 W |
| Pump Relay | 230 V (ac), 5A, 1/3 hp |
