150

Part of the Setpoint Controls Series

Ordering Code: 150

UPC: 779655015003

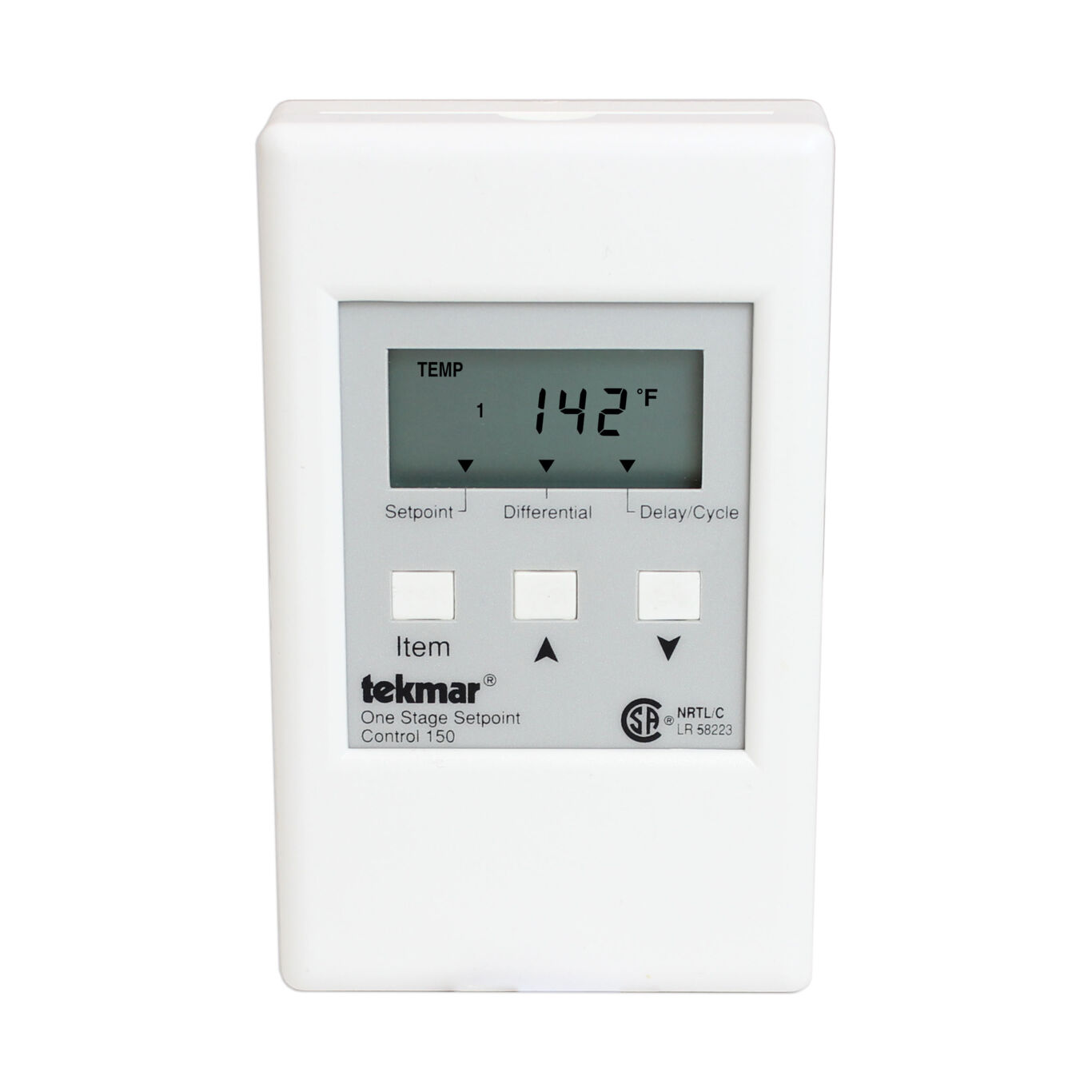

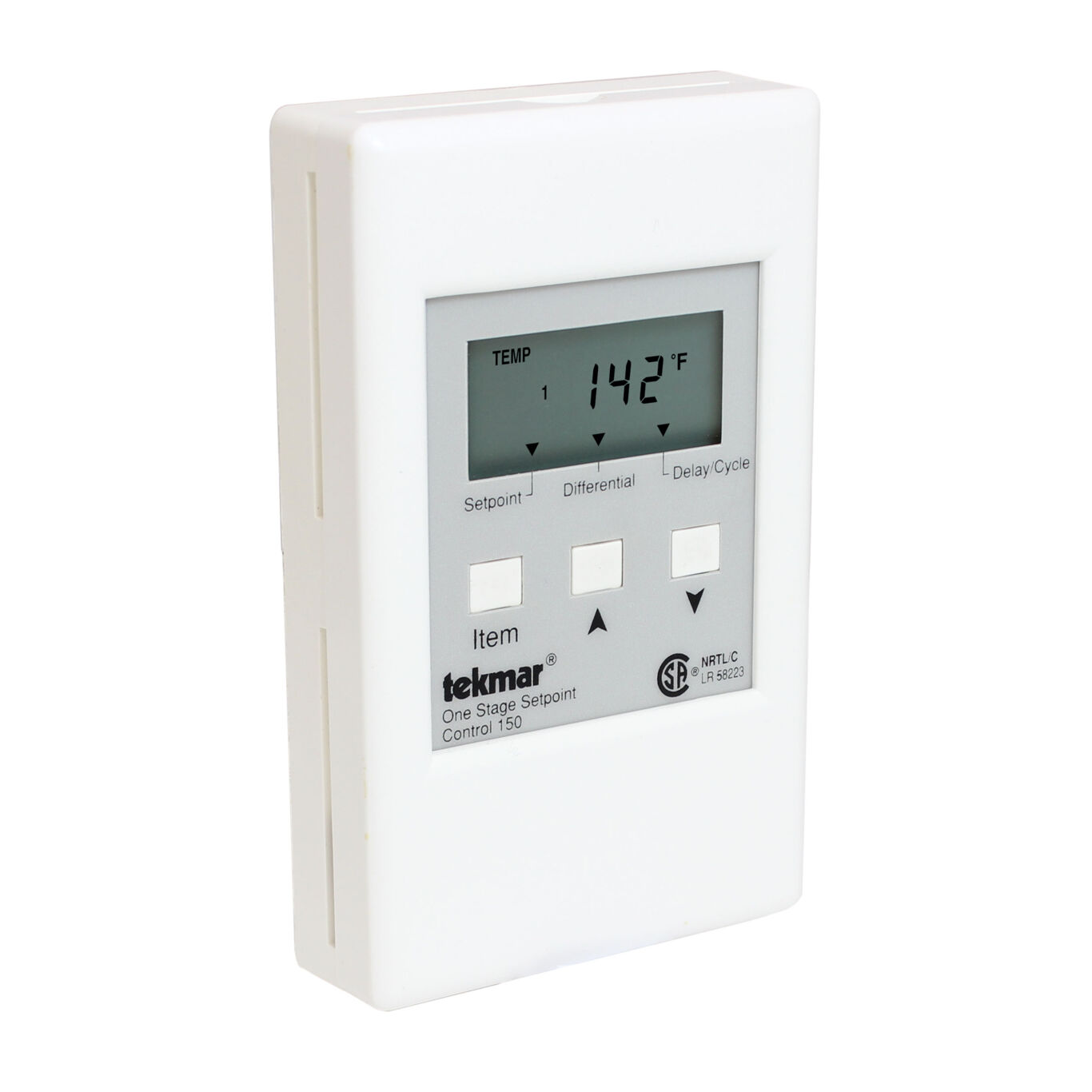

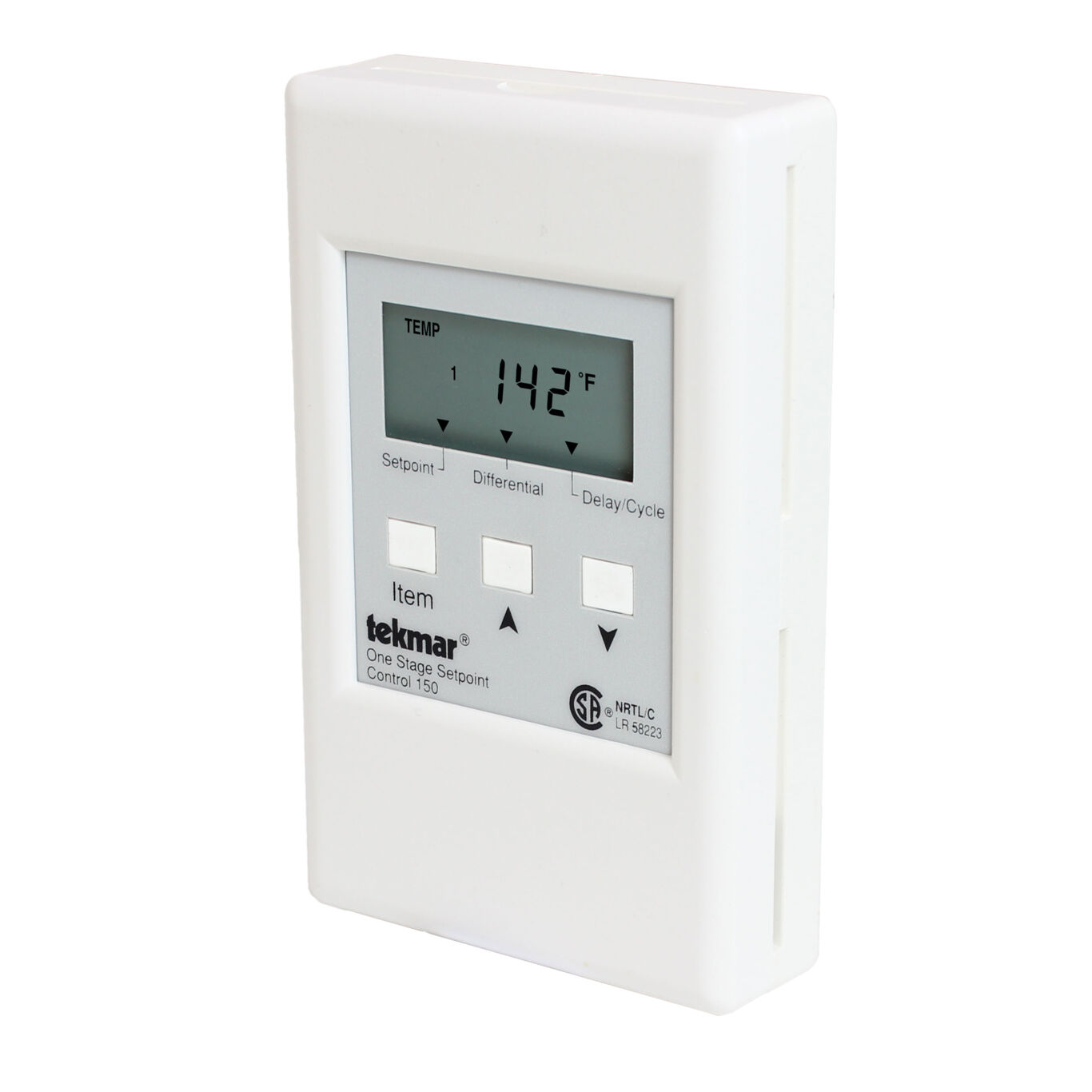

One Stage Setpoint Control



Quick Product Search


Quick links:

Control Selector

tekmar Home




  • Heat or cool setpoint control
  • Pulse width modulation control
  • Digital display
  • Normally open and normally closed relay
Specifications
Agency Approvals CSA C US, meets class B: ICES & FCC Part 15
Ambient Conditions Indoor use only, -20 to 120 degrees F (-30 to 50 degrees C), RH less than or equal to 90 percent Non-condensing
Control Type Microprocessor control, this is not a safety (limit) control
Demand Does Not Apply To Product
DHW - Valve Output Does Not Apply To Product
DHW - Zone Valve Does Not Apply To Product
Dimensions 4 3/4 IN H x 2 7/8 IN W x 7/8 IN D (120 x 74 x 22 MM)
Enclosure Material White PVC plastic
Enclosure NEMA Rating NEMA 1
Hydronic - HVAC Control Type One Stage Setpoint Control
Power Supply 24 V (ac) plus / minus 10 percent, 50/60 Hz, 1.3 VA, 24 V (dc) plus / minus 10 percent, 0.02 A
Pump Relay Does Not Apply To Product
Relay 240 V (ac) 8 A max, 1/4 hp
Sensor NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
