667
×
![]()
Discontinued - Replaced By: 670
Part of the Snow Melting Controls Series
Ordering Code: 667
UPC: 779655066701

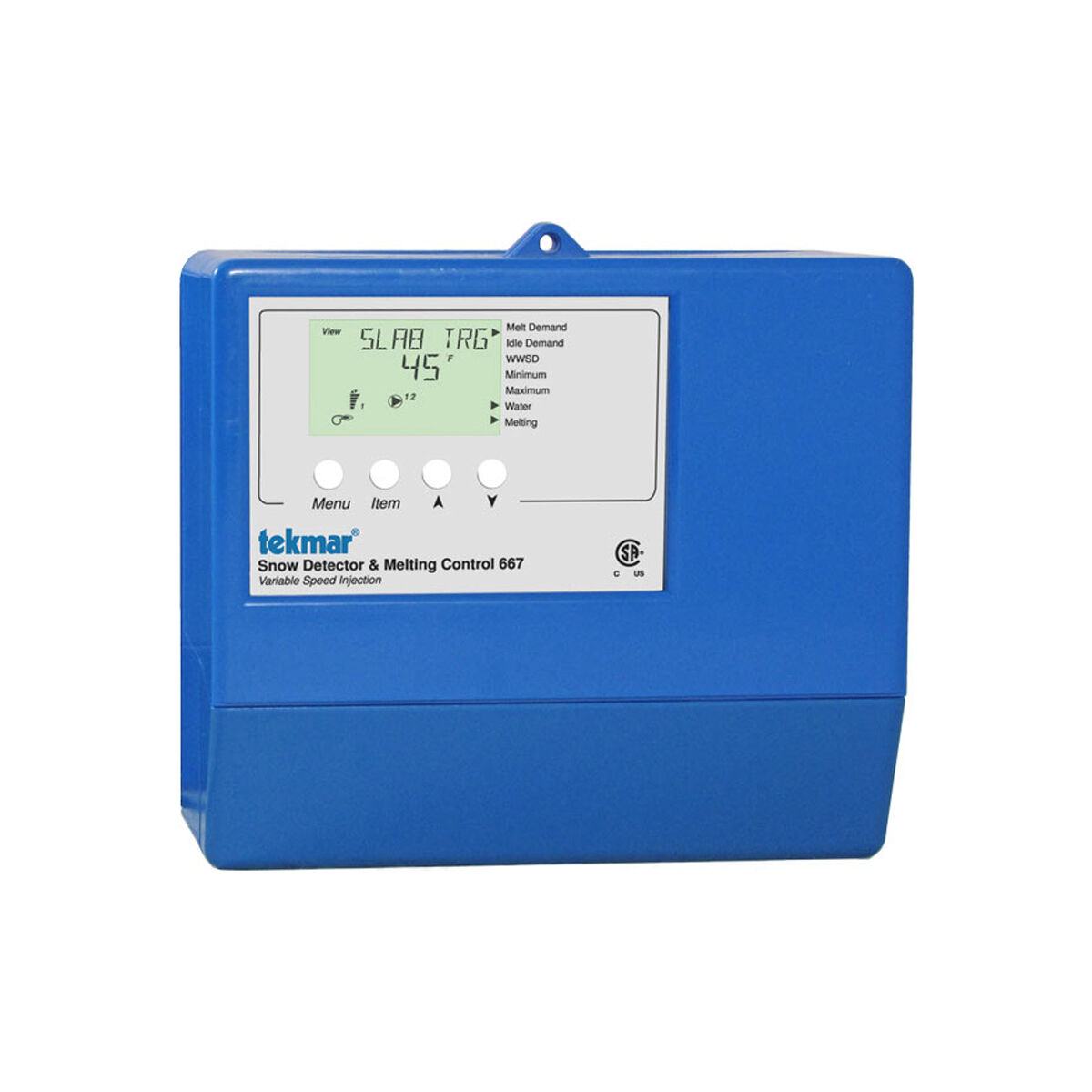

667 Snow Detector & Melting Control
The Snow Detector & Melting Control 667 is designed to operate mechanical equipment to melt snow off an outdoor slab. It can be used in hydronic snow melting applications with one boiler with mixing. This product uses a tekmar snow/ice detection sensor in order to automatically melt snow while protecting the boiler and slab with mixing. It is capable of controlling 1 on/off boiler, a variable speed injection pump for mixing, a boiler pump, and a mix system pump.
Features
- Automatic snow detection and melt control (090 Sensor), slab temperature control
- Mixing control (variable speed), temporary idle
- Slab protection for the snow melting system, boiler control
- Boiler protection, manual override
| Specifications | |
|---|---|
| Agency Approvals | CSA C US, meets class B: ICES & FCC Part 15 |
| Ambient Conditions | Indoor use only, 32 to 104 degree F (0 to 40 degree C), RH less than or equal to 90 percent non-condensing |
| Control Type | Microprocessor control, this is not a safety (limit) control |
| Demand | 20 to 260 V (ac) 2 VA |
| Enclosure Material | Blue PVC plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Power Supply | 115 V (ac) plus / minus 10 percent, 50/60 Hz, 600 VA |
| Relay | 230 V (ac) 5 A, 1/3 hp |
| Sensor | NTC thermistor, 10 k ohms at 77 degree F (25 degree Cplus / minus 0.2 degree C) Beta =3892 |
