681
Part of the Snow Melting Controls Series
Ordering Code: 681
UPC: 779655068108

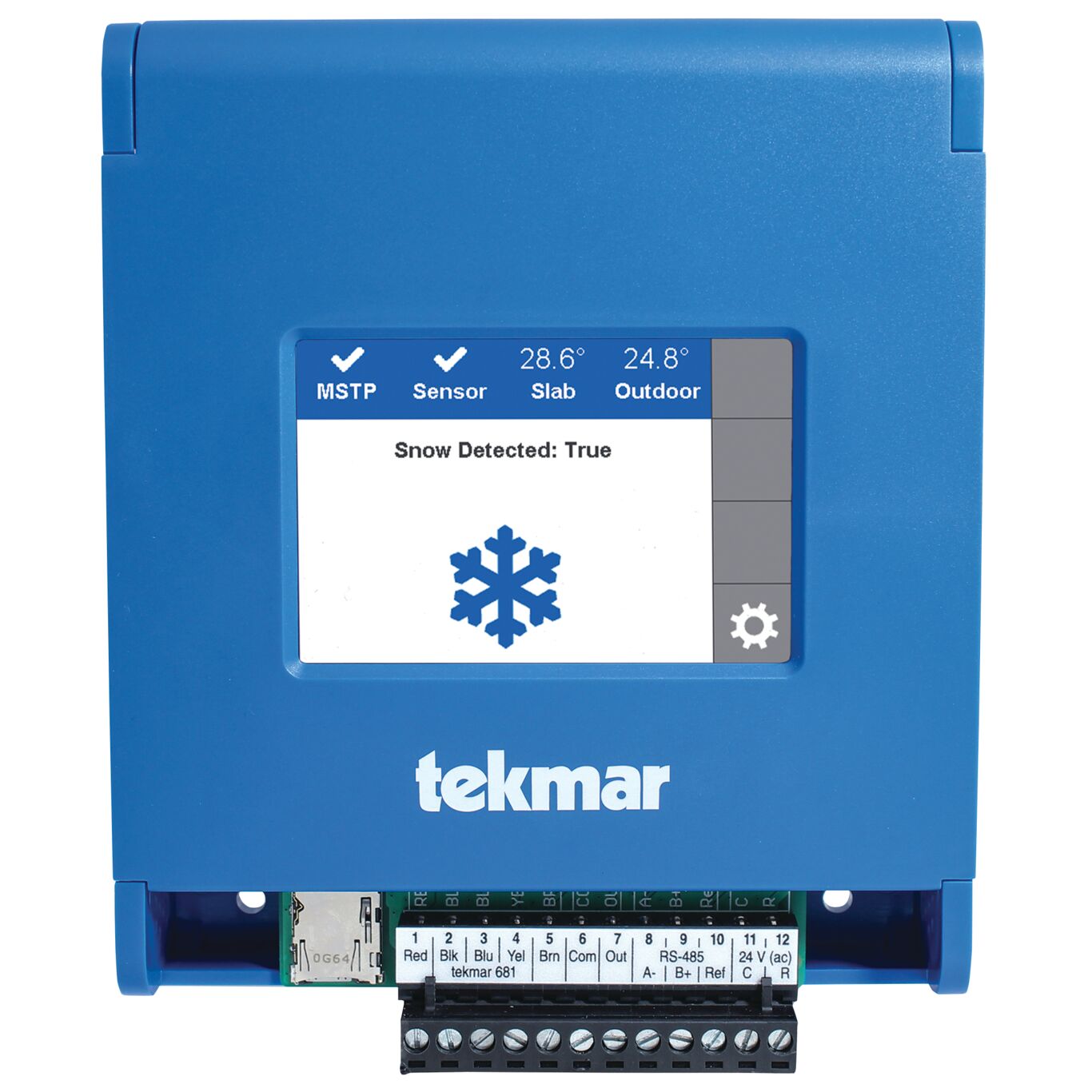

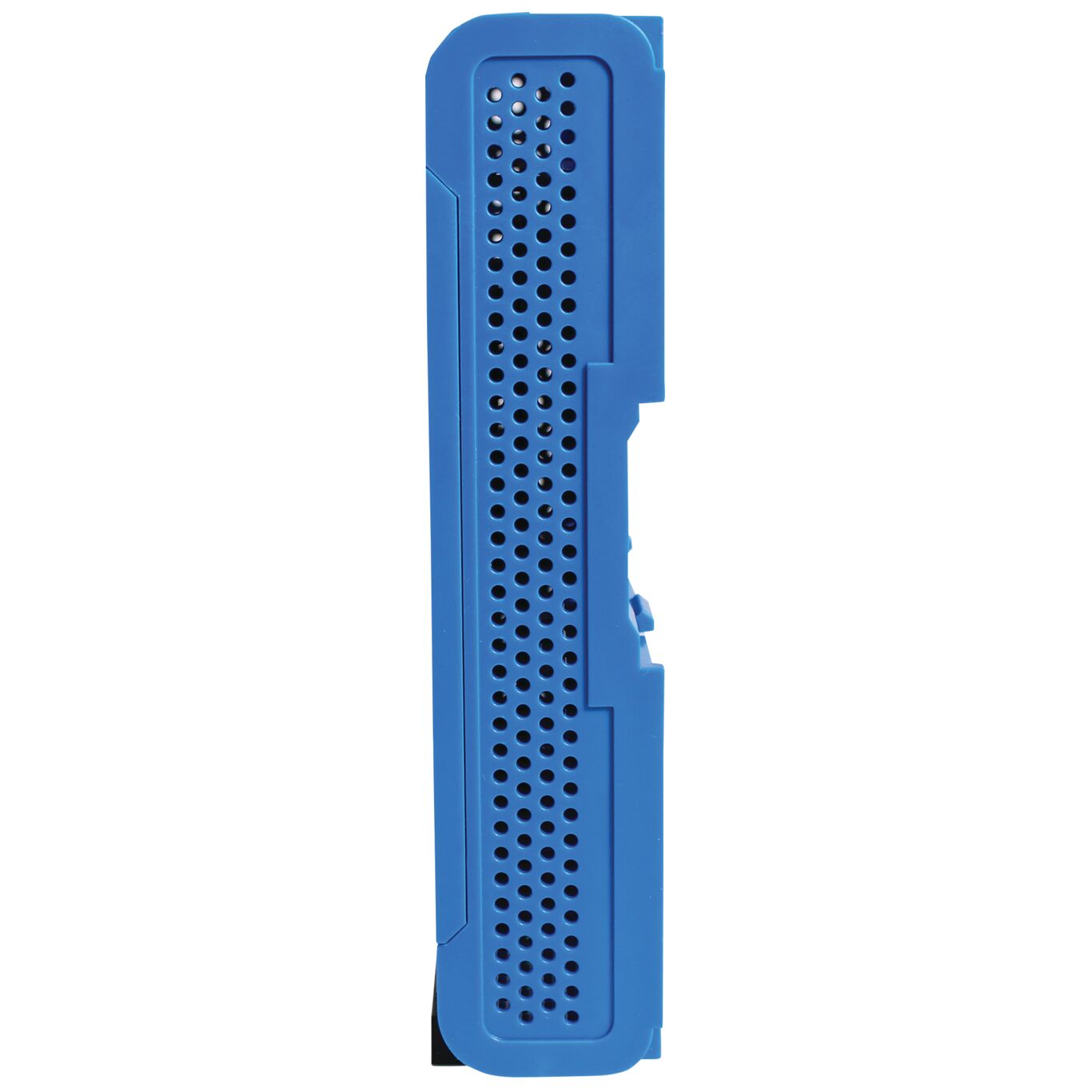

BACnet Sensor Interface, Snow/Ice Sensor
The BACnet Snow/Ice Sensor Interface 681 is designed to measure the presence of snow/ice and interfaces with the Building Automation System (BAS) to operate electric or hydronic snow melting systems. The 681 uses tekmar® sensor technology to automatically detect snow or ice, and upon detection communicates with the BAS through BACnet MS/TP. This operation allows the BAS to automatically turn on/off and provide operational status for a snow melting system. The 681 is suitable for any snow melting commercial application including, hospitals, schools, airports, ski resorts, business entrances, driveways, loading docks, and shopping malls.
Features
- Automatic snow / ice detection
- BACnet MSTP communication
- Supports both in-slab and retrofit aerial sensors
- Warm weather shut down
- Cold weather cut off
- Slab target temperature
- Error codes
- Melt pending
- Supports both DIN rail and backplate mount
| Specifications | |
|---|---|
| Agency Approvals | FCC Part 15, BTL Listed |
| Ambient Conditions | Minus 4 to 122 degrees F (Minus 20 to 50 degree C), less than 90 percent RH non-condensing, outdoor use permitted when used in NEMA 3 enclosure |
| Communications Type | BACnet MSTP |
| Control Type | Microprocessor control, is not a safety/limit control |
| Dimensions | 6.34 IN (161 MM) H x 5.13 IN (130 MM) W x 1.30 IN (33 MM) D |
| Display | 3 1/2 IN Color Touchscreen |
| Enclosure Material | Blue PC and ABS Plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Markets | Commercial Buildings with BAS |
| Power Supply | 24 V (ac), 50 and 60 Hz |
