557
Part of the Thermostats Series
Ordering Code: 557
UPC: 779655055702
tekmarNet Thermostat, Radiant Floor, 2 Heat Pump/Cool, Backup, Humidity

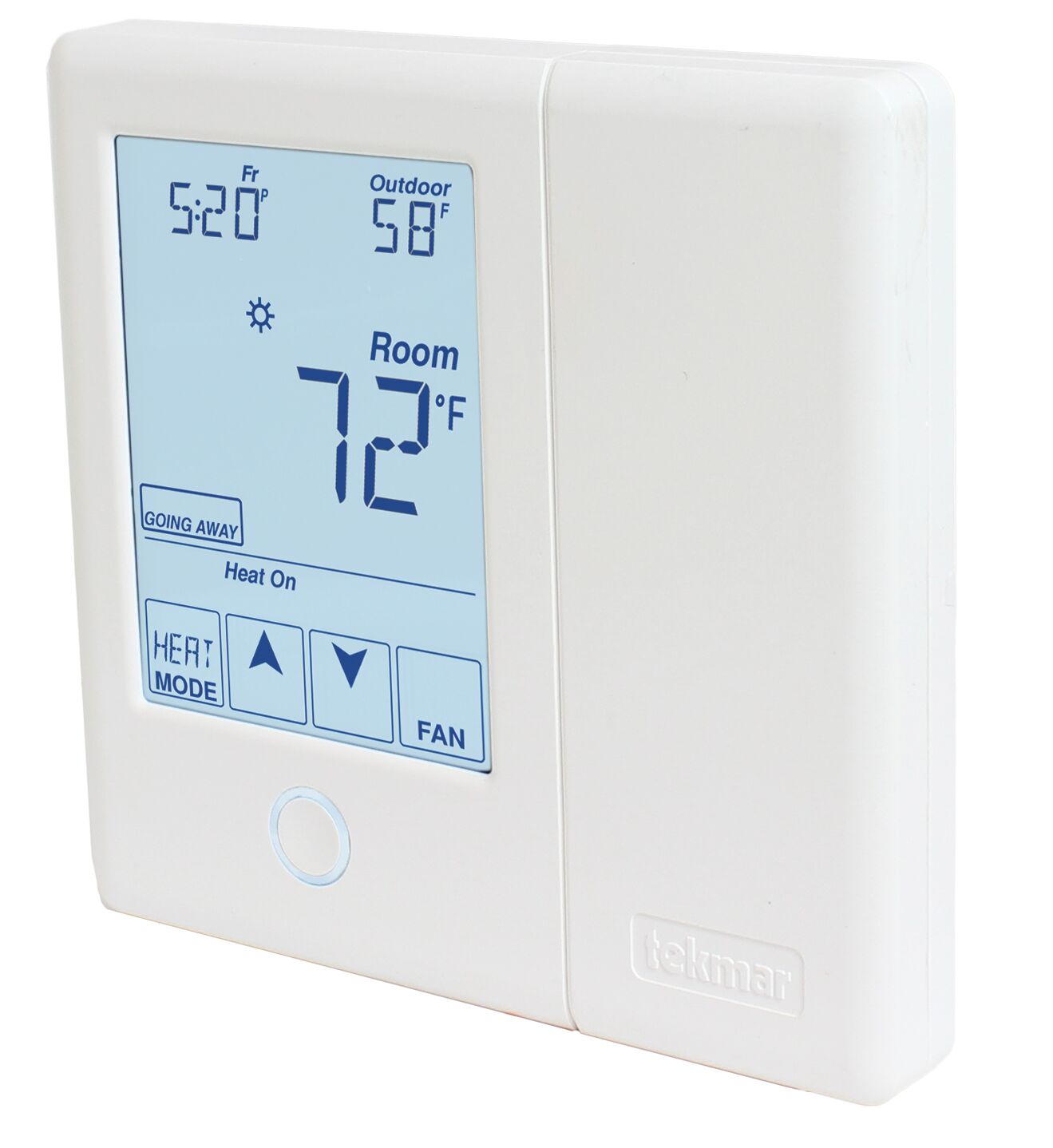

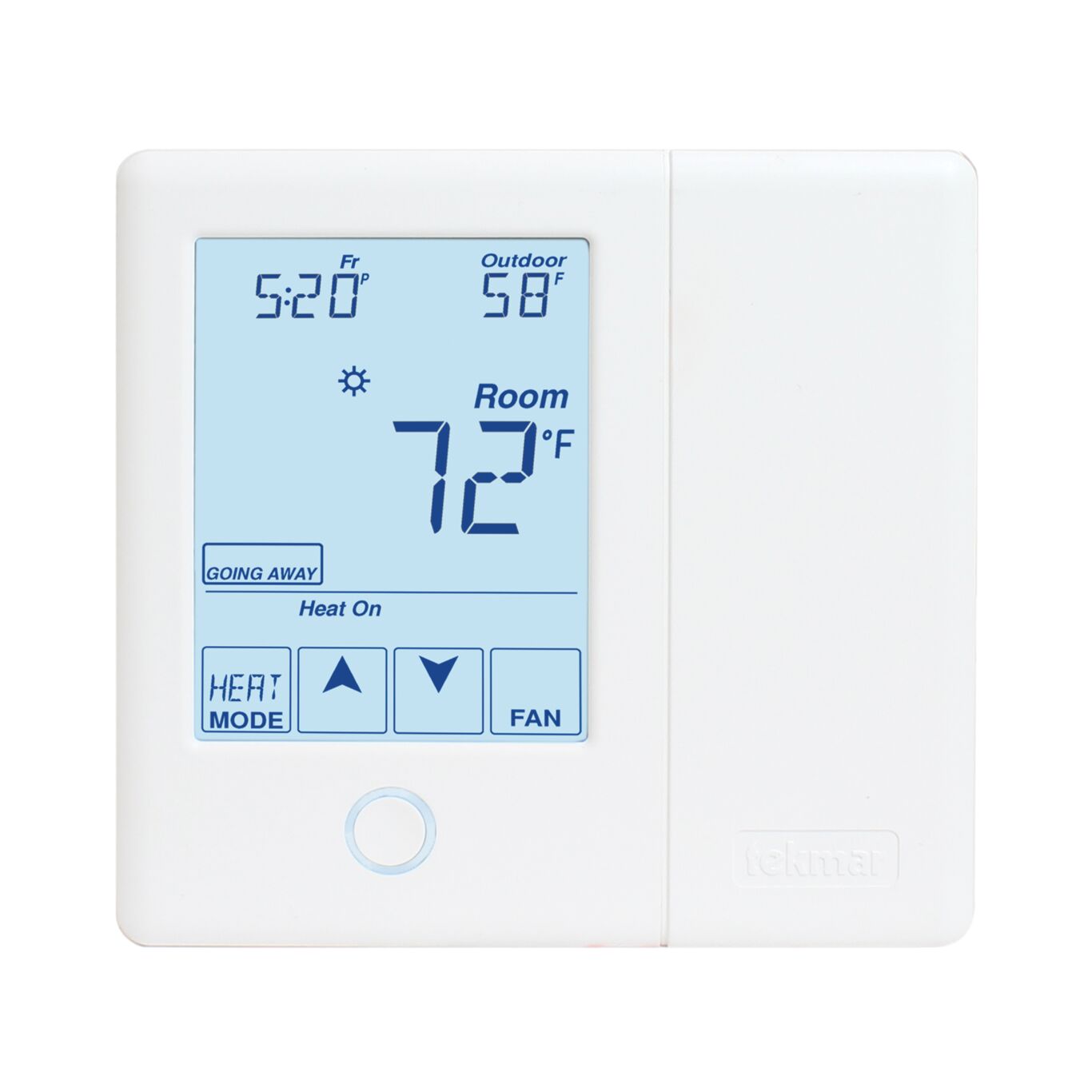

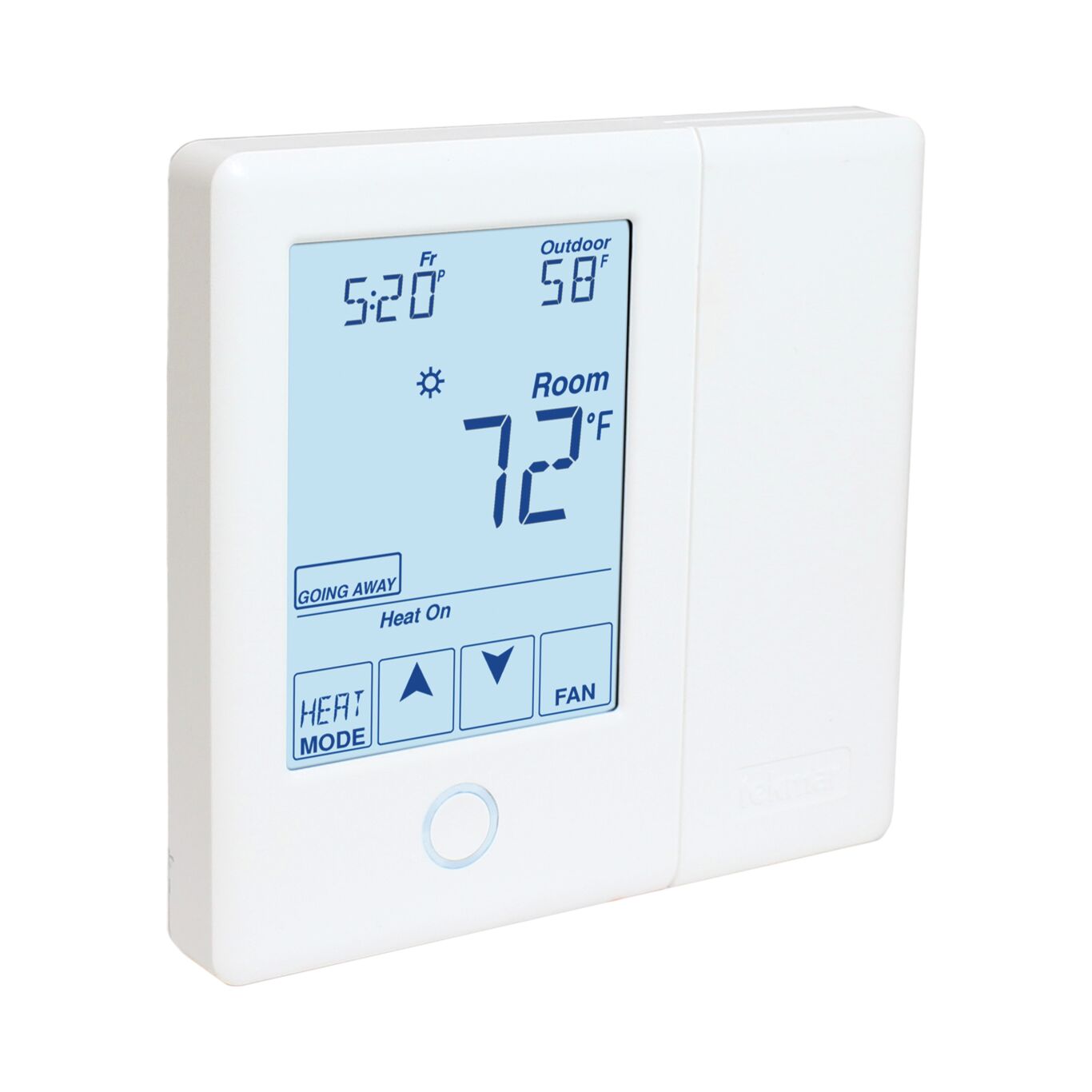

The tekmarNet (R) Thermostat 557 is a communicating touchscreen thermostat designed to operate either: a hydronic radiant floor with a two stage heat pump (water-to-air or air-to-air) for heating & cooling and an emergency backup heating system; or two stages of heating and two stages of cooling. There are three auxiliary sensor inputs that can be used to measure room, floor, outdoor or duct temperature. The optional floor sensor allows precise heating of radiant floors. Relative humidity level can be measured and controlled using either the built-in or external humidity sensor. The large touchscreen display allows you to easily adjust 7-day programmable schedules and room temperatures to optimize comfort and energy savings. The 557 can connect to tekmarNet (R) controls using two or four wires or it can operate as a stand-alone device.
Features
- Warm weather shut down, zone synchronization
- Zone post purge, programmable schedule
- Temporary hold, away scene key
- Auto heating cycle, tekmarNet (R) communication compatible
- Touchscreen technology, 3 Auxiliary sensor inputs
- Radiant floor heating and cooling, outdoor and floor temperature display
- Air group master, network schedule master or member
- Optimum start, scenes
- Daylight savings time, backlight
| Specifications | |
|---|---|
| Agency Approvals | Meets Class B: ICES & FCC Part 15 |
| Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing |
| Control Type | Microprocessor control, this is not a safety (limit) control |
| Dimensions | 4-1/2" H x 4-3/4" W x 7/8" D (114 x 120 x 22 mm) |
| Enclosure Material | White PVC plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Environmental Notice | Compatible with chlorinated swimming pool environments. Do not use in presence of ammonia (animal barns), methanol, ethanol, acetone. |
| Markets | Single-Family Homes |
| Power Supply | 24 V plus / minus 10 percent, 60 Hz, 2 VA standby, NEC / CEC Class 2 |
| Relay | 24 V (ac) 2A , 0-10 V (dc) Output |
