326

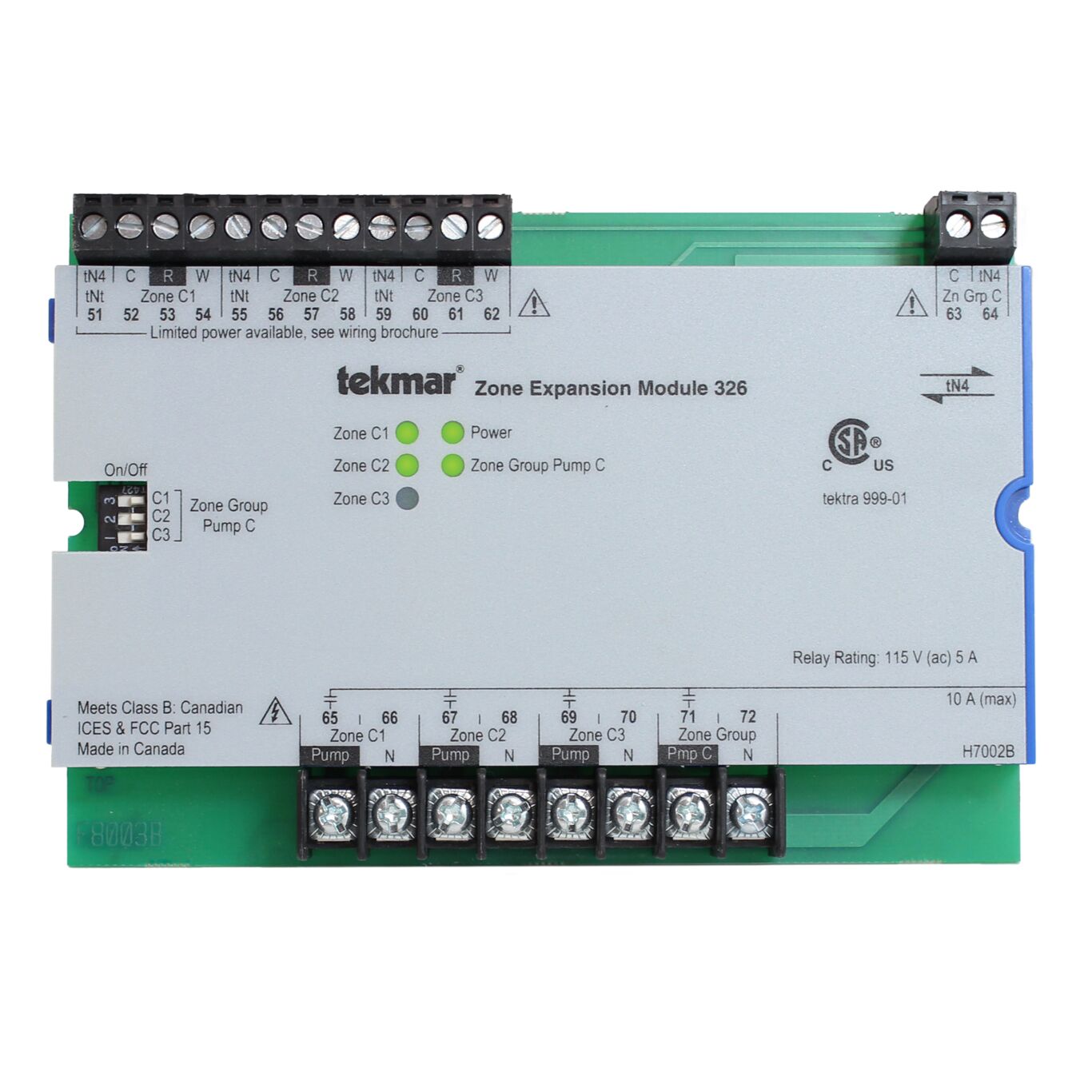

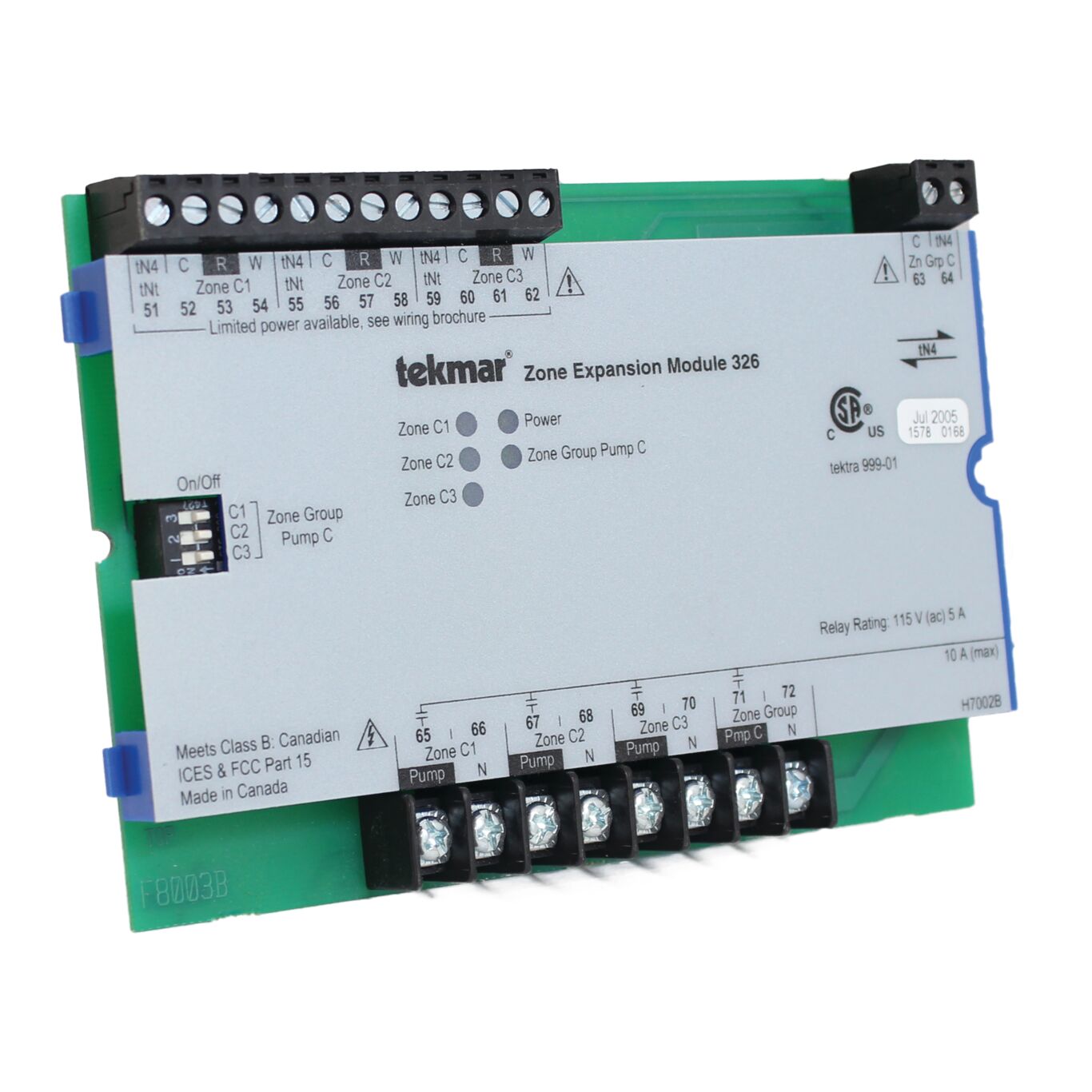

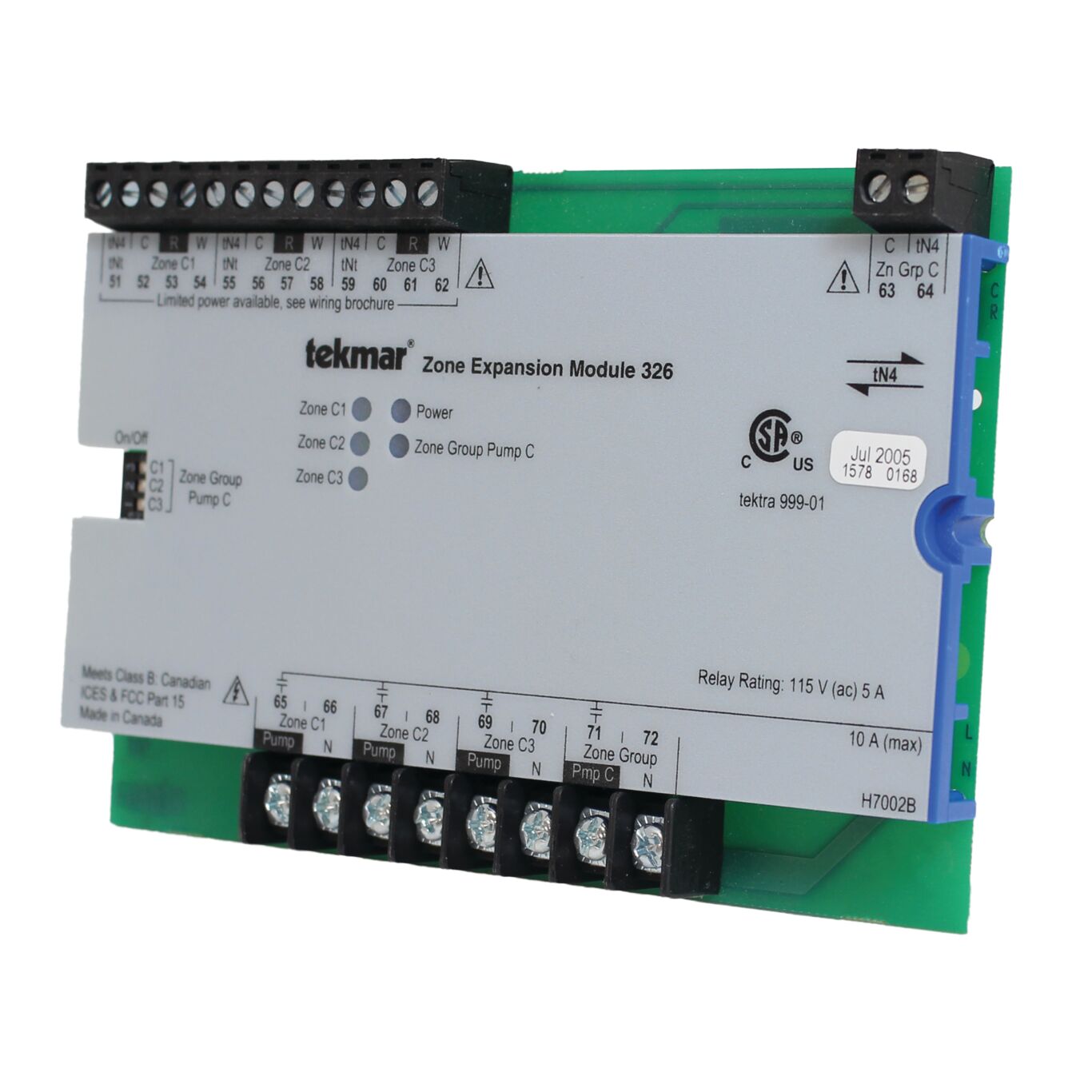

tN4 Zone Expansion Module, Three Zone Pumps
The tekmarNet® 4 Zone Expansion Module 326 is designed to provide expansion for a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to radiant heating manifolds. This product expands the number of zones provided with a Zone Manager by up to 3 more zone pumps. It is capable of providing power for up to 3 tekmarNet® 4 or stand alone thermostats and energizing their respective 115 V (ac) zones, as well as providing a powered Zone Group Pump (powered end switch) contact to enable an external device such as a manifold pump.
Features
- Simple wiring
- One 115 V powered zone group pump output
- tekmarNet® 4 compatible
- Three 115 V powered zone pump outputs
Literature
-
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 326
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
