Smart Heat Pump Control System
Controls Built to Work Together from
Setup to Startup
Installing a hydronic heat pump control system can often turn into a time-consuming headache.

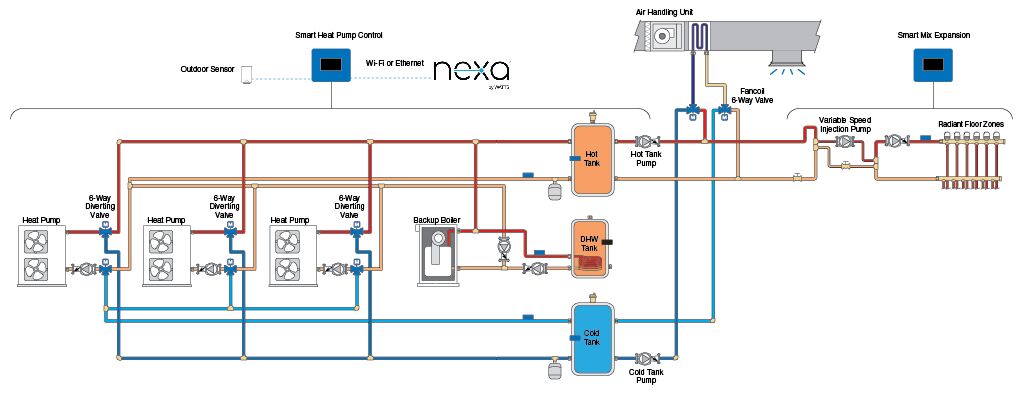

The Smart Heat Pump Control System from tekmar is the first fully integrated solution designed to streamline both installation and commissioning. This all-in-one package includes the main controller, an expansion module, a mixing expansion, and 6-way diverting valves. Scalable to support anywhere from 4 to 16 heat sources and compatible with both 2- or 4-pipe systems, the system arrives preconfigured and is easily commissioned through an intuitive setup & commissioning wizards. With built-in Nexa connectivity, users can monitor and troubleshoot the system remotely, anytime and from anywhere. Designed to save time and simplify setup, it’s the most efficient way to get heat pump systems up and running—quickly, reliably, and with minimal hassle.
NexaTM is a comprehensive, intelligent water management platform for your property, delivering visibility of and control over your water systems.
Faster Installs, Smarter Performance
Cuts install and commissioning time with integrated components and intuitive setup
Works with most heat pumps and thermostats for maximum flexibility
Expands control of up to 16 heat pumps with an optional dedicated boiler loop
One System Fully Integrated Zero Guesswork

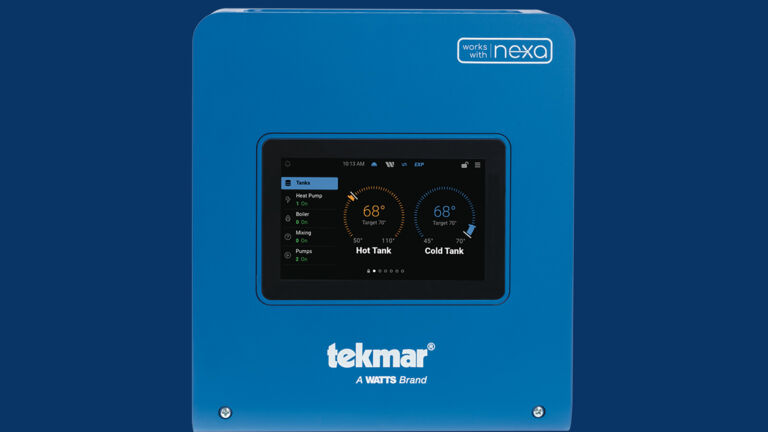

Smart Heat Pump Control 291
- Operates 4 heat pumps, expandable up to 16 using expansion controls
- 2- or 4-pipe configurations, simultaneous heating and cooling of buffer tanks
- Central heating/cooling using outdoor reset with up to 3 mix temperatures using expansion modules
- Supports a backup boiler or a backup boiler loop with a tekmar Smart Boiler Control 294
- Compatible with any brand of heat pump and thermostat
- Pair with a tekmarNet® thermostat to unlock radiant floor cooling

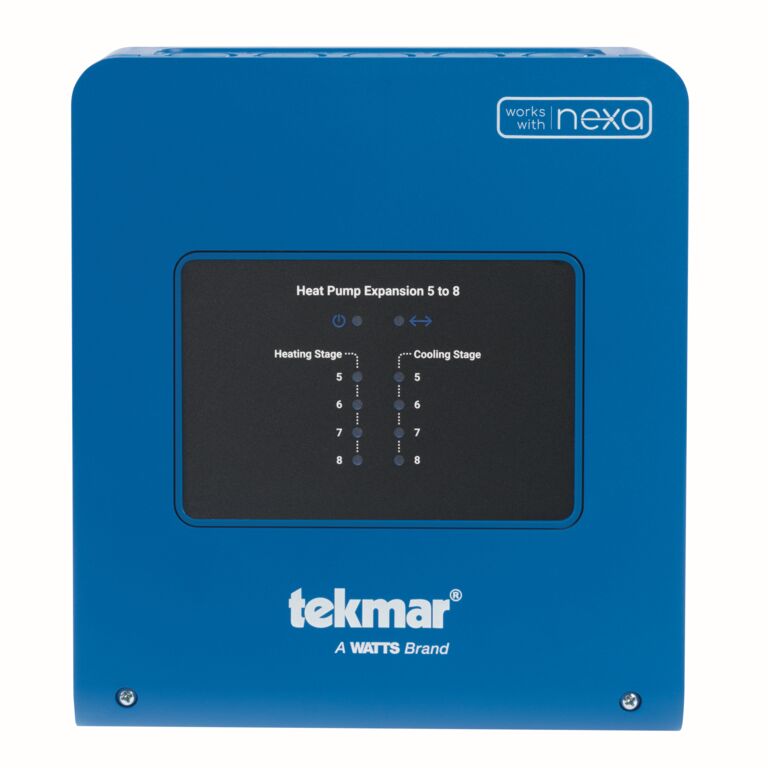

Smart Heat Pump Expansion 291EXP
- Expands control of up to 16 heat pumps in groups of 4
- Heat pump configuration selected by DIP switches
- LED status indicators
- 3-wire communication

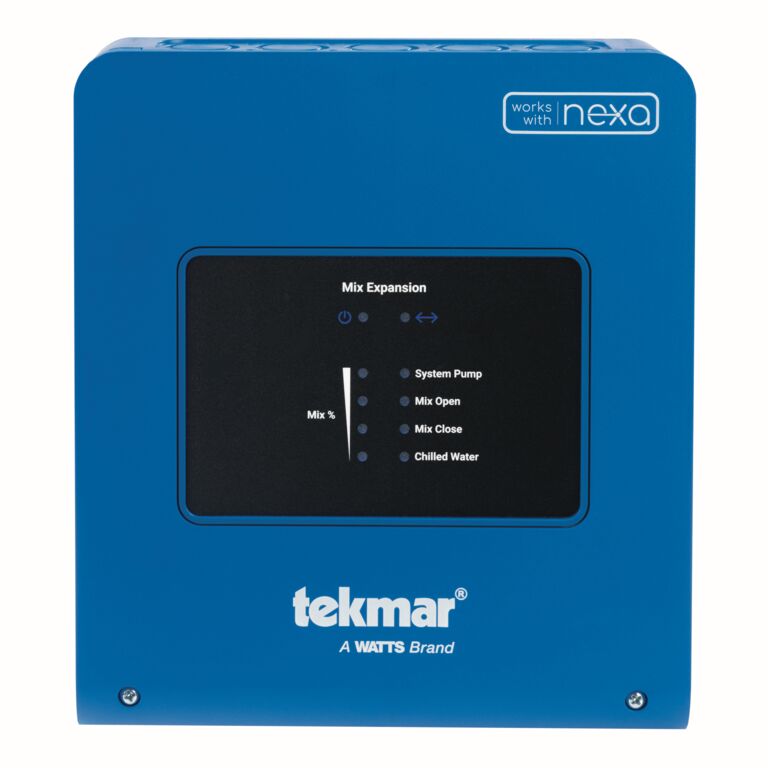

Smart Mix Expansion 295
- Expansion for 1 mix temperature
- Diverting valve for switching between hot and cold water
- 3-wire communication

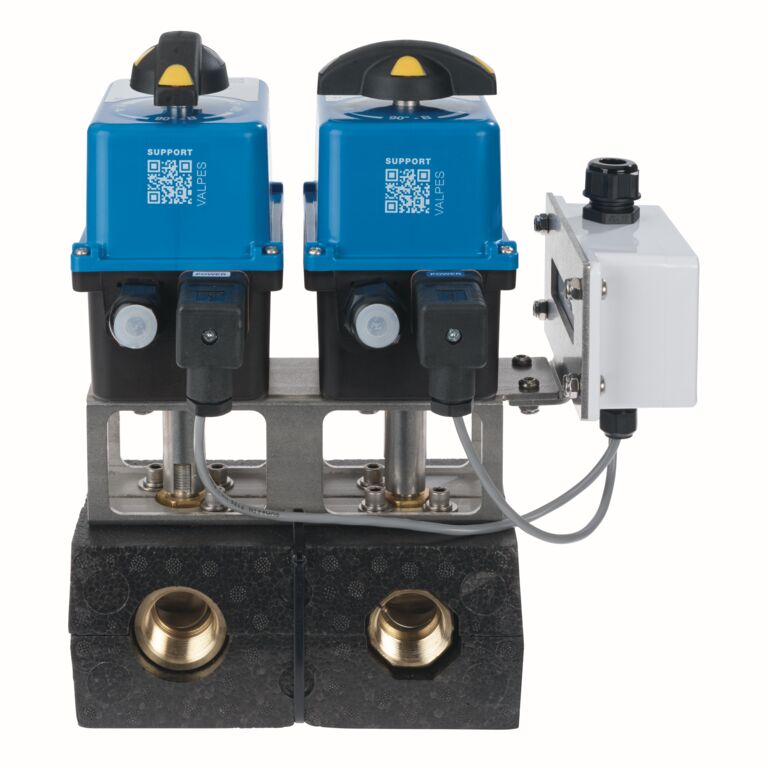

6-Way Diverting Valve Panels 731 & 732
- Pre-insulated valve bodies to prevent sweating
- Reversable logic if piping was installed inversely in the field
- 1 or 1¼ inch female national pipe threads
- Brass construction to resist corrosion
The Smart Solution for Hydronic Heating & Cooling Control
