483
Discontinued - Replaced By: 486
Part of the Control Accessories Series
Ordering Code: 483
UPC: 779655048301

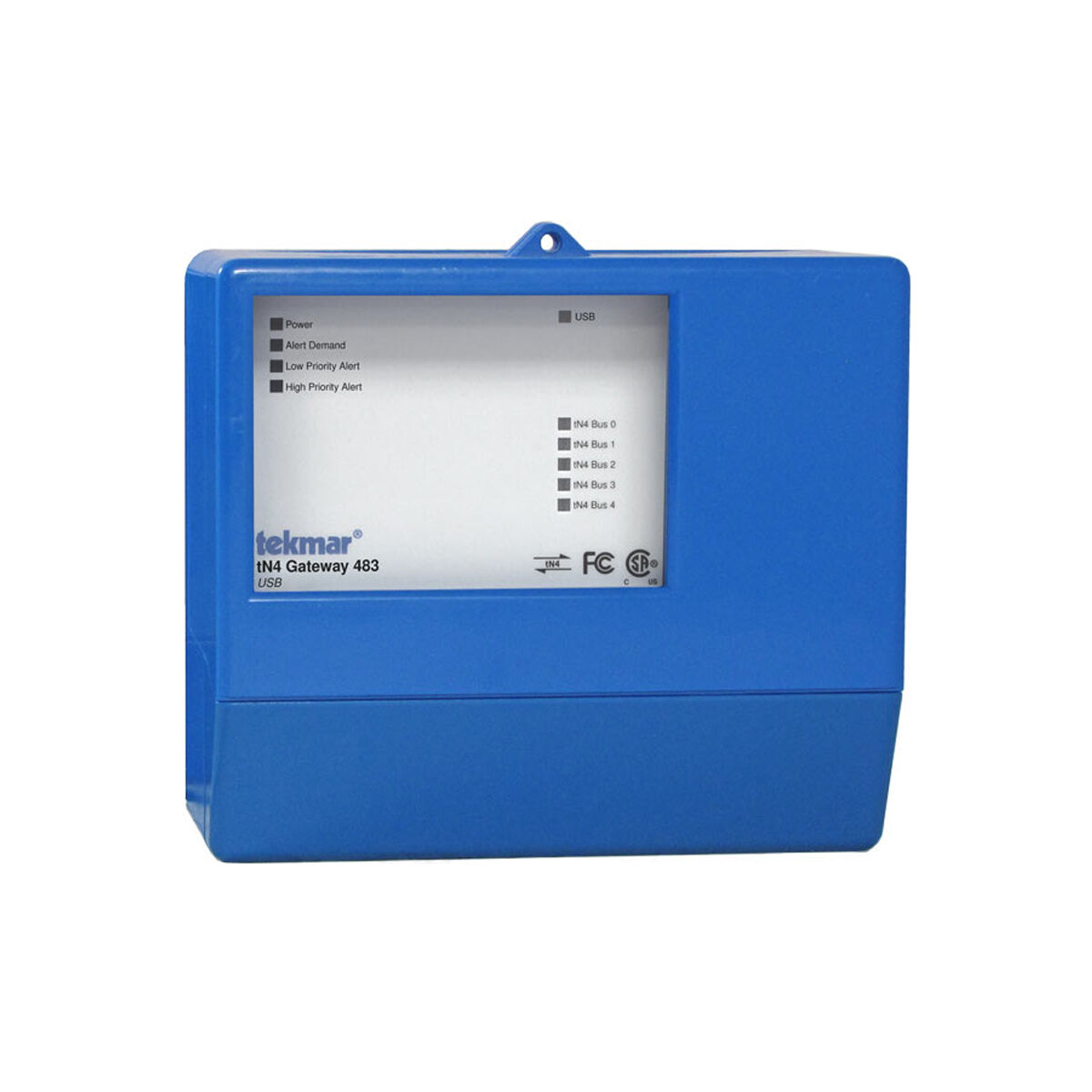

483 tN4 Gateway
The tekmarNet (R) 4 Gateway 483 allows remote access to tekmarNet (R) compatible controls through a computer web browser such as Internet Explorer (R), Firefox (R), Safari (R), or mobile device browsers. Access can be either direct, through a local area network, or through the internet. This product allows temperature adjustment of thermostats and setpoint controls, monitoring of system temperatures and run-times, adjustment of setback schedules and overrides as well as the graphing of trends of any of these parameters. Replacement options: 486; must confirm compatibility of system controls prior to upgrade.
Features
- Monitor and adjust temperatures from anywhere there is an internet connection, adjust schedules
- Adjust and activate scenes
- Activate setpoint controls
- Low and high level alert contacts
Specifications | |
---|---|
Agency Approvals | CSA C US, meets Class B: ICES & FCC Part 15 |
Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 92 percent to 104 degrees F (40 degrees C), down to 50 percent above 104 degrees F (40 degrees C), 9842 feet (3000 m) maximum altitude |
Control Type | Microprocessor control, this is not a safety (limit) control |
Demand | 20 to 125 V (ac) 2 VA |
Dimensions | 6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm) |
Enclosure Material | Blue PVC plastic |
Enclosure NEMA Rating | NEMA 1 |
Power Supply | 115 V (ac), 60 Hz, 45 mA |
Relay | 115 V (ac), 5 A 1/3 hp, pilot duty 240 VA |
Literature
-
- Addendum - 483 tN4 Gateway Software License Agreement (Aug 2008 - Present)
- Brochure - Communicating Control Systems (Apr 2012 - Jan 2014)
- Gateway Software - 483 (Mar 2015 - Present)
- Installation and Operation - 483 (Dec 2011 - Present)
- Job Record - 483 (Aug 2009 - Present)
- Specification Sheet - 483 (Jan 2011 - Oct 2011)
- Specification Sheet - 483 (Oct 2011 - Present)
- Wiring Guide - 483 (Mar 2010 - Present)
