LFSL100XL Watts

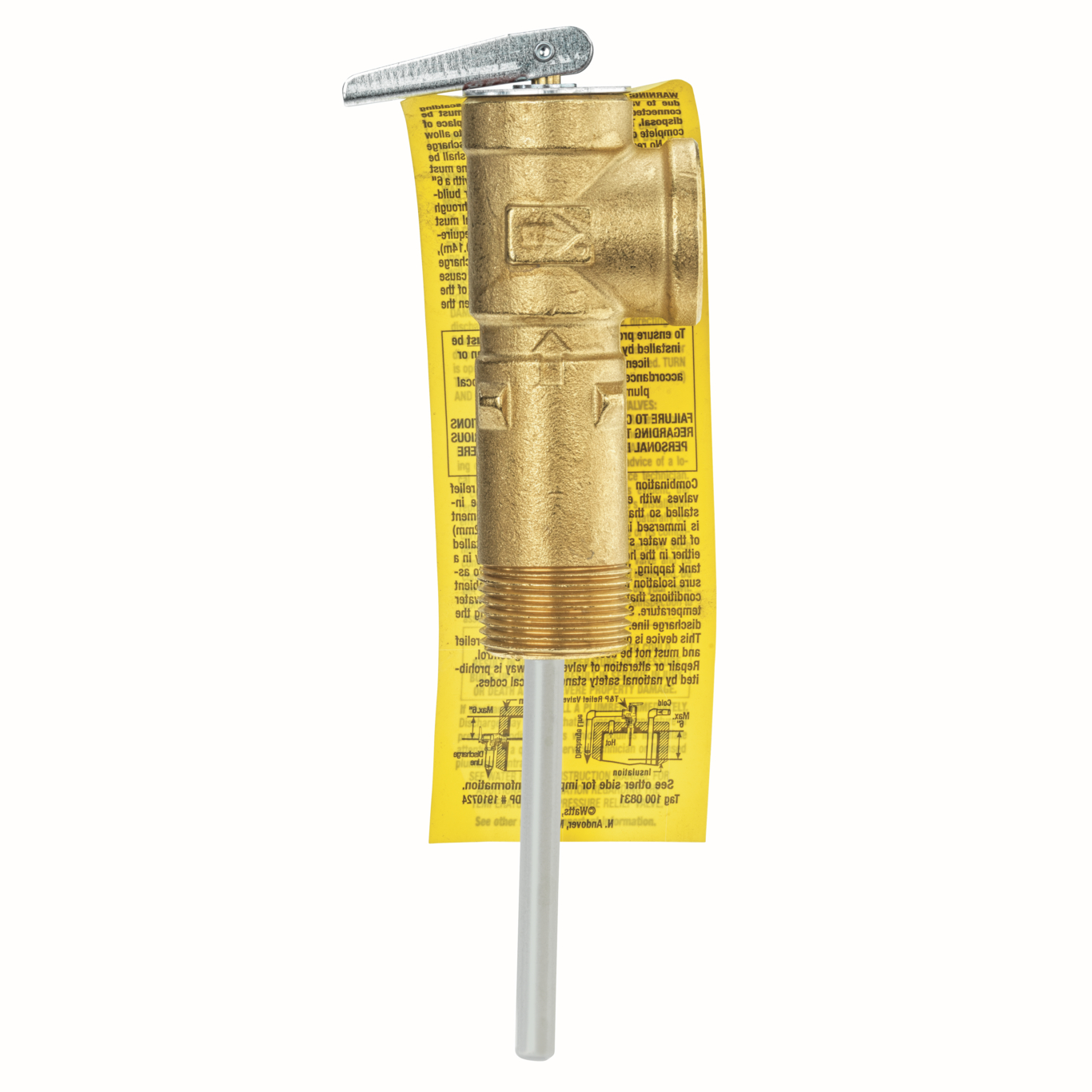

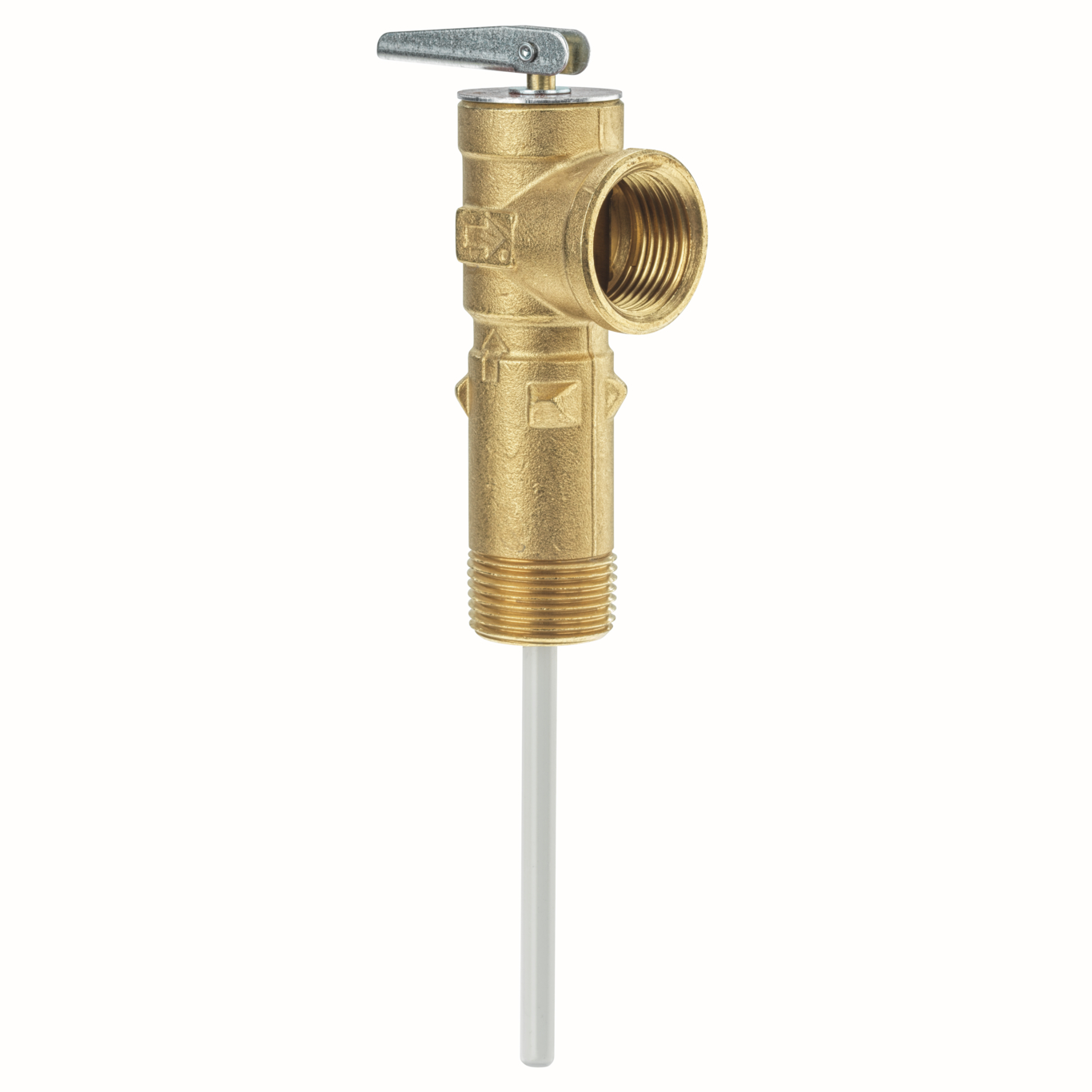

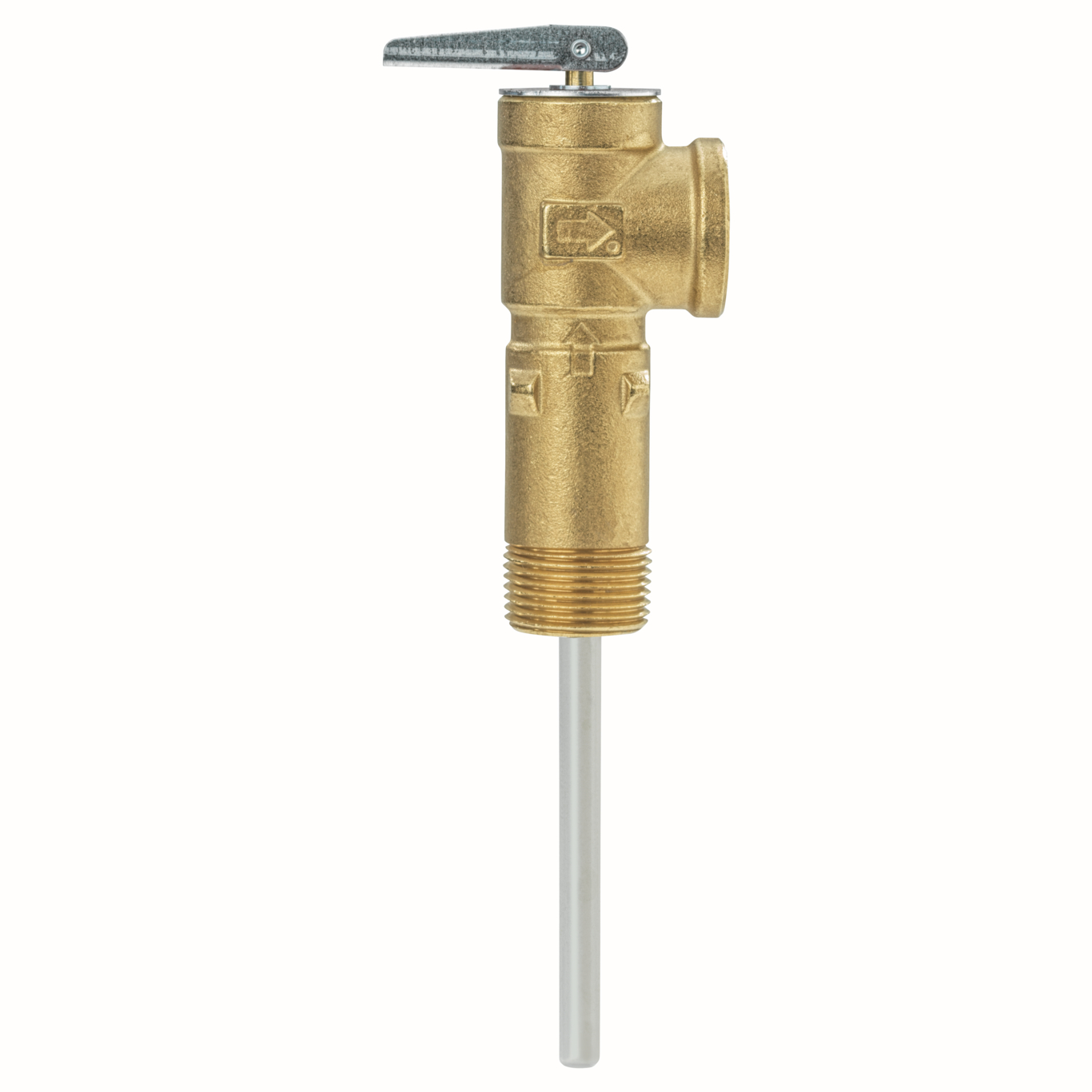

Lead Free* Extended Shank Temperature and Pressure Relief Valves

Series LFSL100XL, LFL100XL, LFLL100XL and LFLLL100XL Lead Free* Extended Shank Temperature and Pressure Relief Valves are used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. They feature an extended shank for installation on water heaters with extra thick insulation as well as a Lead Free* brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. Model LFSL100XL is suitable for water heaters with up to 1-3/4 in. (45mm) of insulation. Model LFL100XL is suitable for water heaters with up to 2 in. (51mm) of insulation. Model LFLL100XL is suitable for water heaters with up to 2-1/2 in. (64mm) of insulation. Model LFLLL100XL is suitable for water heaters with up to 3 in. (76mm) of insulation. Series LFSL100XL, LFL100XL, LFLL100XL and LFLLL100XL are ASME rated and CSA listed. Temperature Relief: 210 degreeF (99 degreeC). Pressure Relief Range: 75 to 150psi (5.2 to 10.3 bar). Standard Pressure Settings: 75, 100, 125, or 150psi (5.27, 7.03, 8.79, or 10.55 bar).

Features

  • Lead Free* brass body and stainless steel spring
  • Longer thermostat for use in water heaters that have extra thick insulation
  • Accurate thermostat with special thermo-bonded coating
  • Valve provides automatic temperature and pressure protection to hot water storage tanks and water heaters

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFSL100XL
