ISCA-131-D-BF
Industry Standard Back-To-Back Vertical Carrier For Floor Mounted Back Outlet Bowl

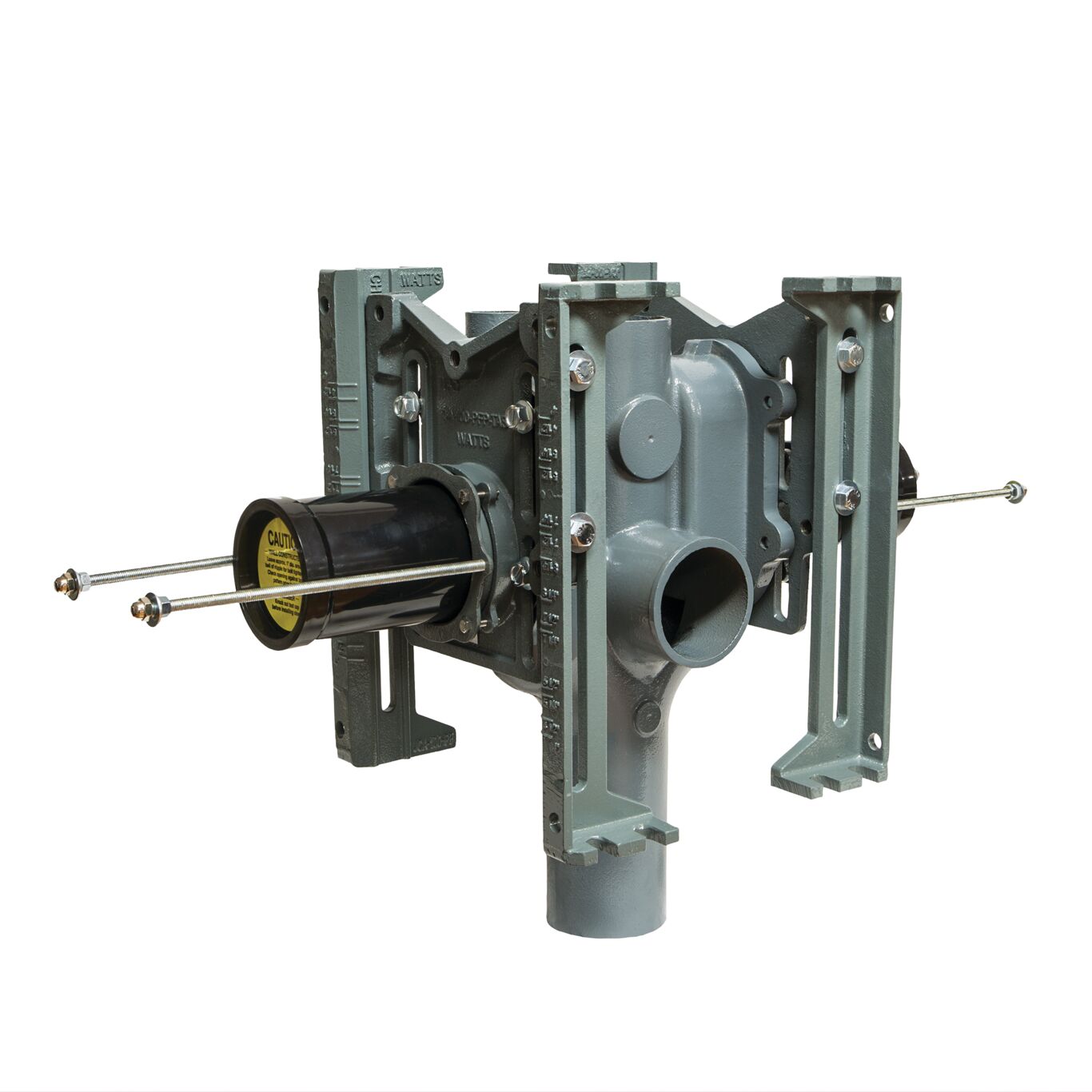

Watts ISCA-131-D-BF Industry Standard back-to-back vertical water closet carrier for floor mounted back outlet bowl with epoxy coated cast iron fitting, 4"(102) no hub waste and 2"(51) no hub vent connections, 4"(102) no hub side inlet(s), epoxy coated cast iron patented compression seal faceplate assembly, and epoxy coated cast iron foot supports with incremental height markings. Adjustable for standard and wheelchair height, adjustable ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts.
Features
- For floor mounted back outlet bowls back-to-back on a vertical stack with horizontal tie-ins
- Carrier provides transition to piping system
- Compression seal nipple does not require sealants, positively holds test
- Supplied with two side inlets - cap provided for unused inlet
- Reversible uprights embossed with incremental height markings
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific ISCA-131-D-BF
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
