ISCA-131-L/R/2

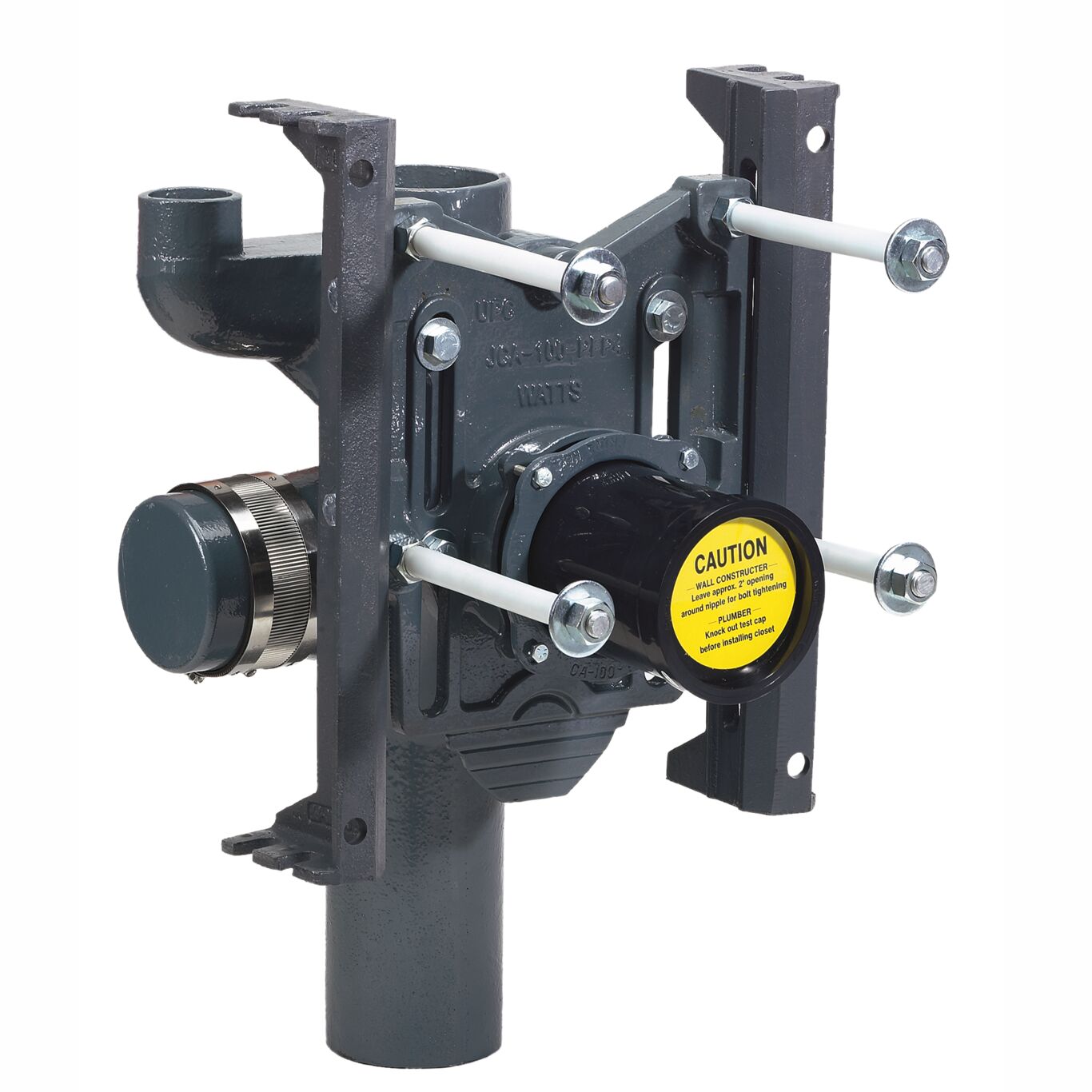

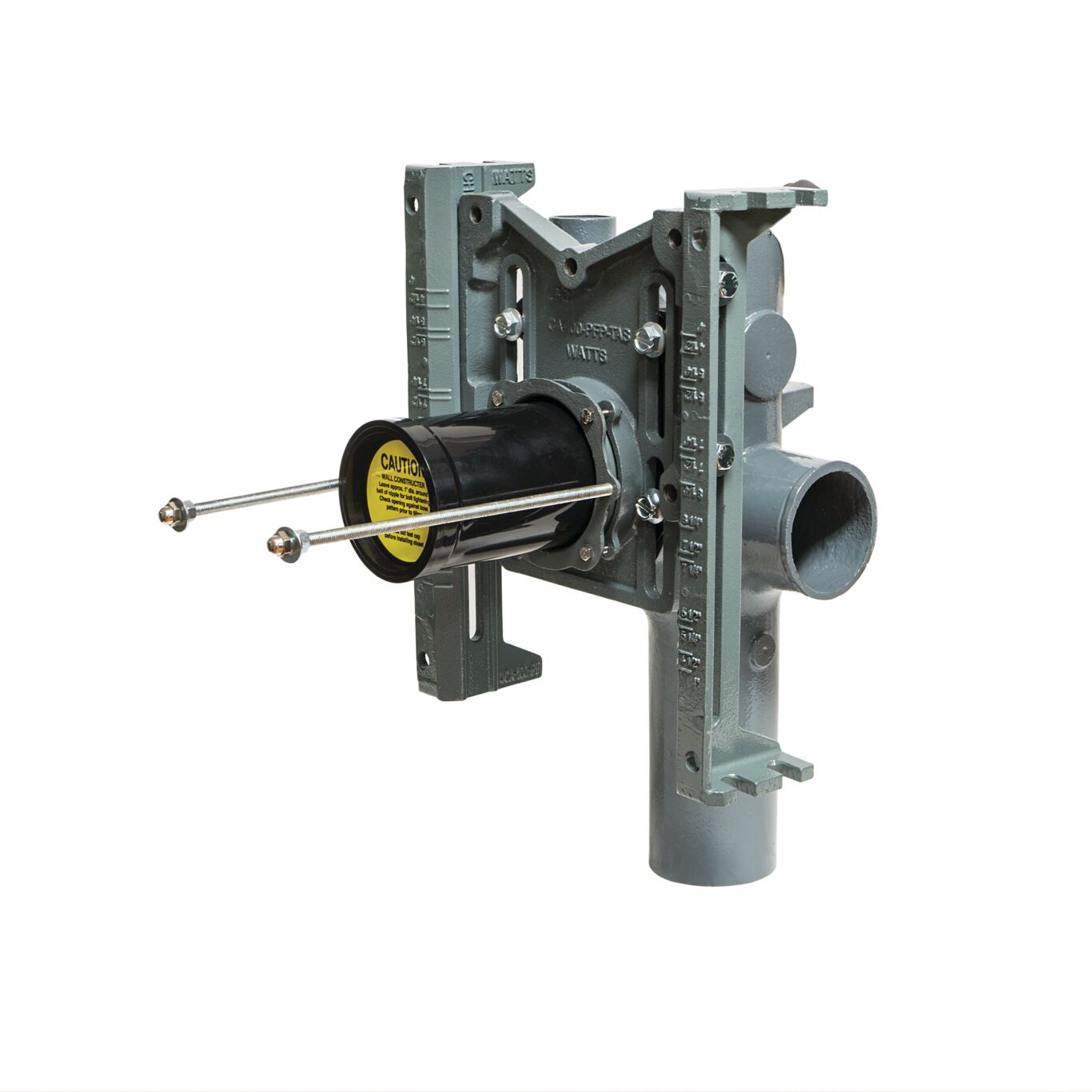

Product Image - ISCA-131-L/R
×

Industry Standard Single Vertical Adjustable Closet Carrier with Side Inlet(s)

Watts ISCA-131-L/R/2 Industry Standard single vertical adjust­able water closet carrier with epoxy coated cast iron fitting, 4"(102) no hub waste and 2"(51) no hub vent connections, 4"(102) no hub side inlet(s), epoxy coated cast iron patented compression seal faceplate assembly, and epoxy coated cast iron foot sup­ports with incremental height markings. Adjustable for standard and wheelchair height, adjustable ABS nipple with integral test cap and neoprene bowl gasket, plated hardware and chrome cap nuts. Carrier complies with requirements of ASME A112.6.1M up to a 500 lb. (227 kg.) static load.

Features

  • For wall hung bowls on a vertical stack with horizontal tie-ins
  • ASME A112.6.1M 500 lb. load rating
  • Compression seal nipple does not require sealants, positively holds test
  • Supplied with two side inlets - cap provided for unused inlet
  • Reversible uprights embossed with incremental height markings

Literature

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific ISCA-131-L/R/2

View all models
Load More
Find a Sales Representative
Find a Wholesaler/Distributor
View Warranty Customer Support Access BIM Drawings

Share this Product



SpecHUB

Build Your Spec in Under 5 Minutes

Learn More

Approval/Certification Information

For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:


ASSE CSA FM Approvals NSF
UL ULC USC WQA
