TCA-411-D
Back to Back Floor Mounted Concealed Arm Track Lavatory Carrier
TCA-411-D
Back to Back Floor Mounted Concealed Arm Track Lavatory Carrier
Features
- Patented labor saving design for chase installations
- Arms adjust horizontally with uprights bolted to the floor
- Standard arms accommodate most 20x18 and 19x17 lavatories
- Offset feet allow uprights to be reversed in the chase

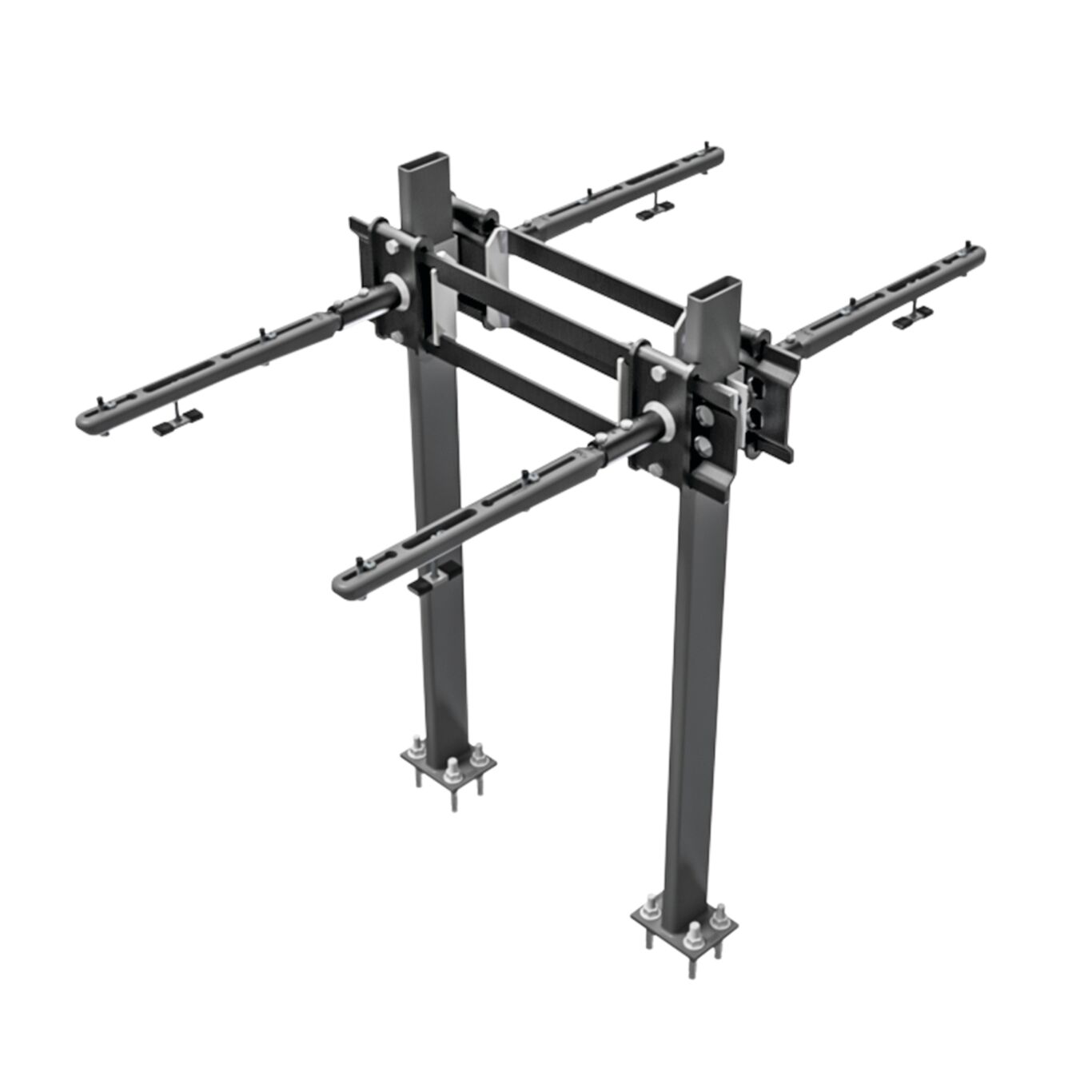

Series TCA-411-D epoxy coated back-to-back floor mounted concealed arm track lavatory carrier with heavy gauge steel offset uprights with welded feet, double steel cross plate with integral mounting brackets, sliding adjustable arm brackets, and adjustable cast iron concealed arms with mounting clips, leveling screws, and basin locking device.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific TCA-411-D
