TCA-411-WC-WLA
Floor Mounted Concealed Arm 27 x 20 Track Lavatory Carrier with Integrated Waste Line Access

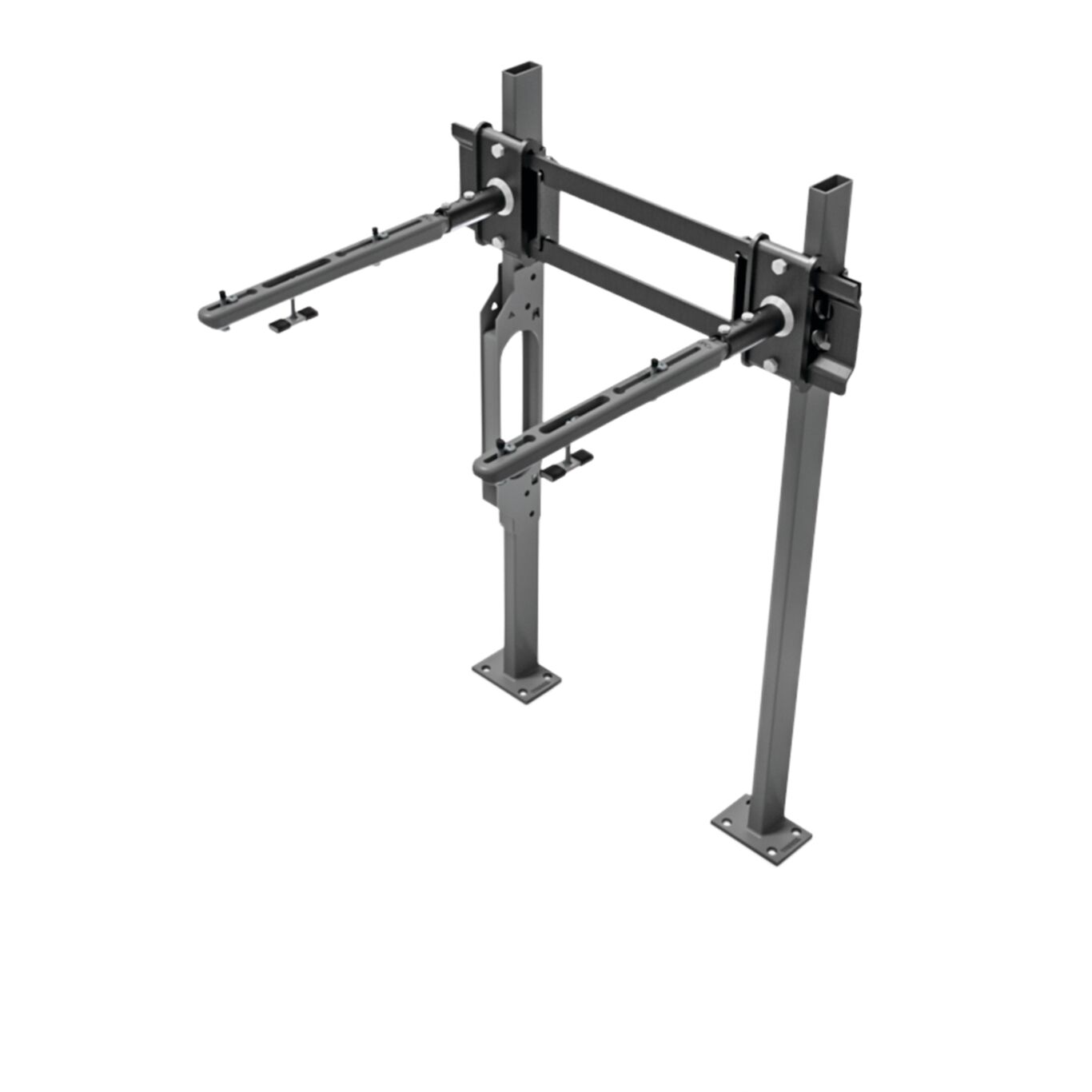

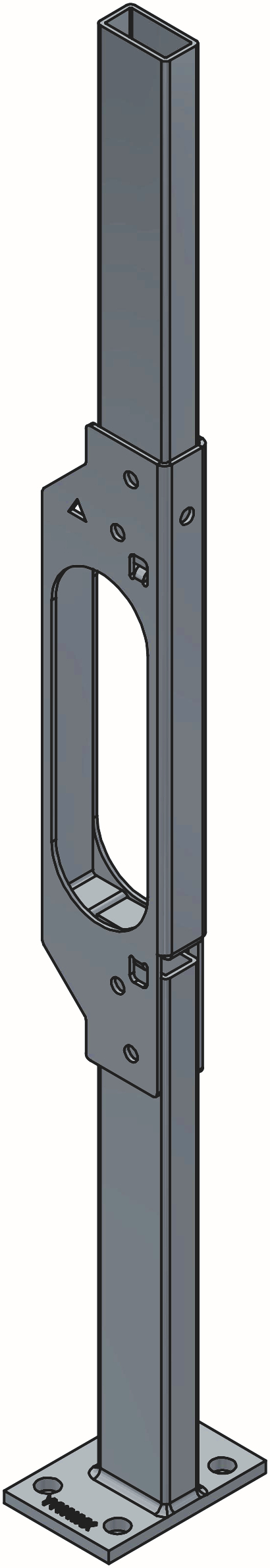

Series TCA-411-WC-WLA epoxy coated floor mounted concealed arm track lavatory carrier for 27 x 20 lavatories, with heavy gauge steel offset uprights with welded feet and integral waste line access, steel cross plate with integral mounting brackets, sliding adjustable arm brackets, and adjustable cast iron concealed arms with mounting clips, leveling screws, and basin locking device.
Features
- Specified for 27x20 ADA lavatories
- Patented labor saving design for chase installations
- Arms adjust horizontally with uprights bolted to the floor
- Installs through a block wall without nipple extensions
- Offset feet allow uprights to be reversed in the chase
