TCA-411-WLA

Floor Mounted Concealed Arm Track Lavatory Carrier with Integral Waste Line Access

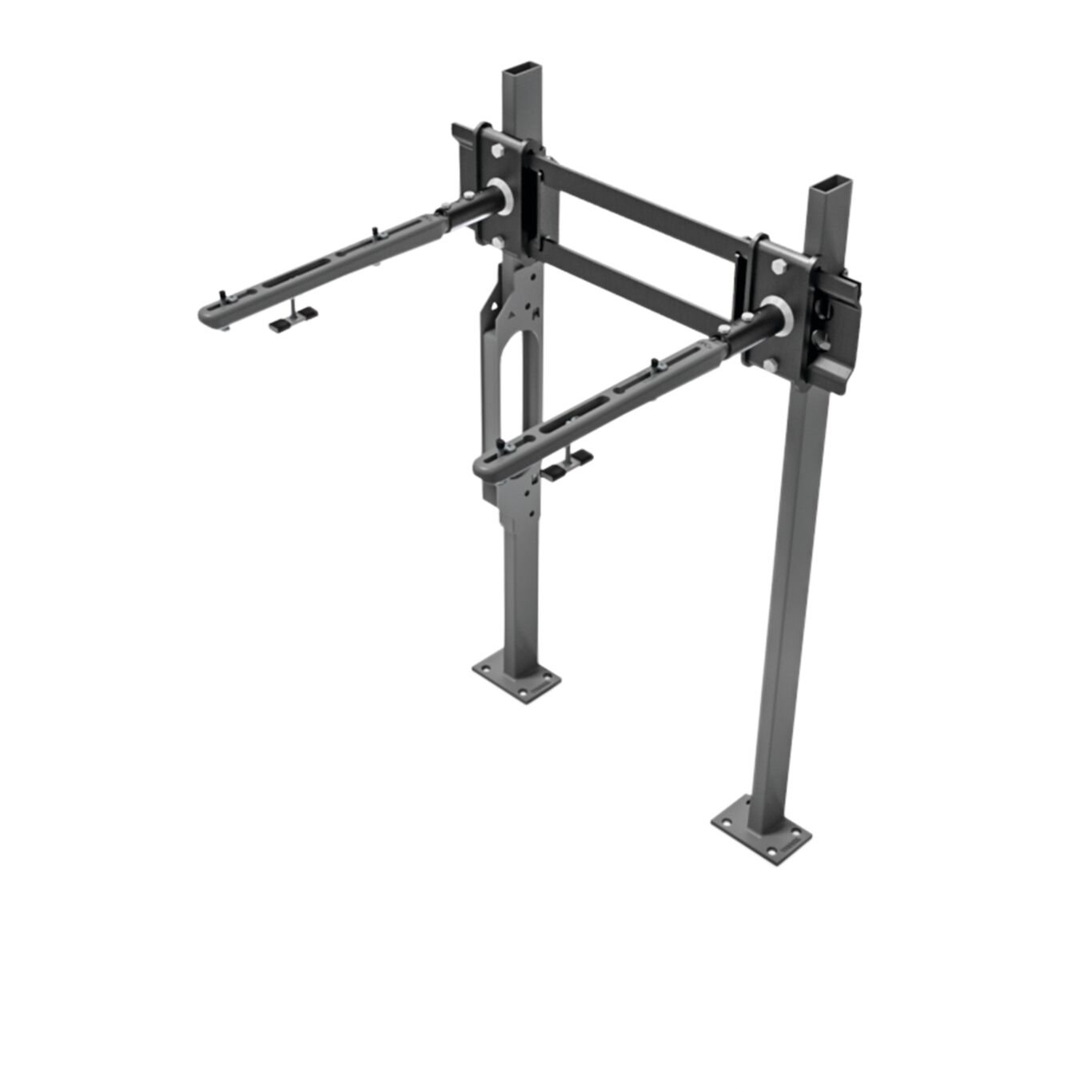

Watts TCA-411-WLA epoxy coated floor mounted concealed arm track lavatory carrier with heavy gauge steel offset uprights and integral waste line access, steel cross plate with integral mounting brackets, sliding adjustable arm brackets, and adjustable cast iron concealed arms with leveling screws, and basin locking device. Carrier complies with requirements of ASME A112.6.1M up to a 250 lb (113kg) static load.

Features

Patented labor-saving design for chase installations
Arms adjust horizontally with uprights bolted to the floor
Installs through a block wall without nipple extensions
Offset feet allow uprights to be reversed in the chase
Standard arms accommodate most 20x18 and 19x17 lavatories
