WCA-411-D
Back-to-back Floor Mounted Lavatory Carrier with Concealed Arms
WCA-411-D
Back-to-back Floor Mounted Lavatory Carrier with Concealed Arms
Features
- Designed for installation inside 2x6 stud walls
- Standard arms accommodate most 20x18 and 19x17 lavatories
- Offset feet allow uprights to be reversed
- Available model (-WC) for 27x20 ADA lavatories

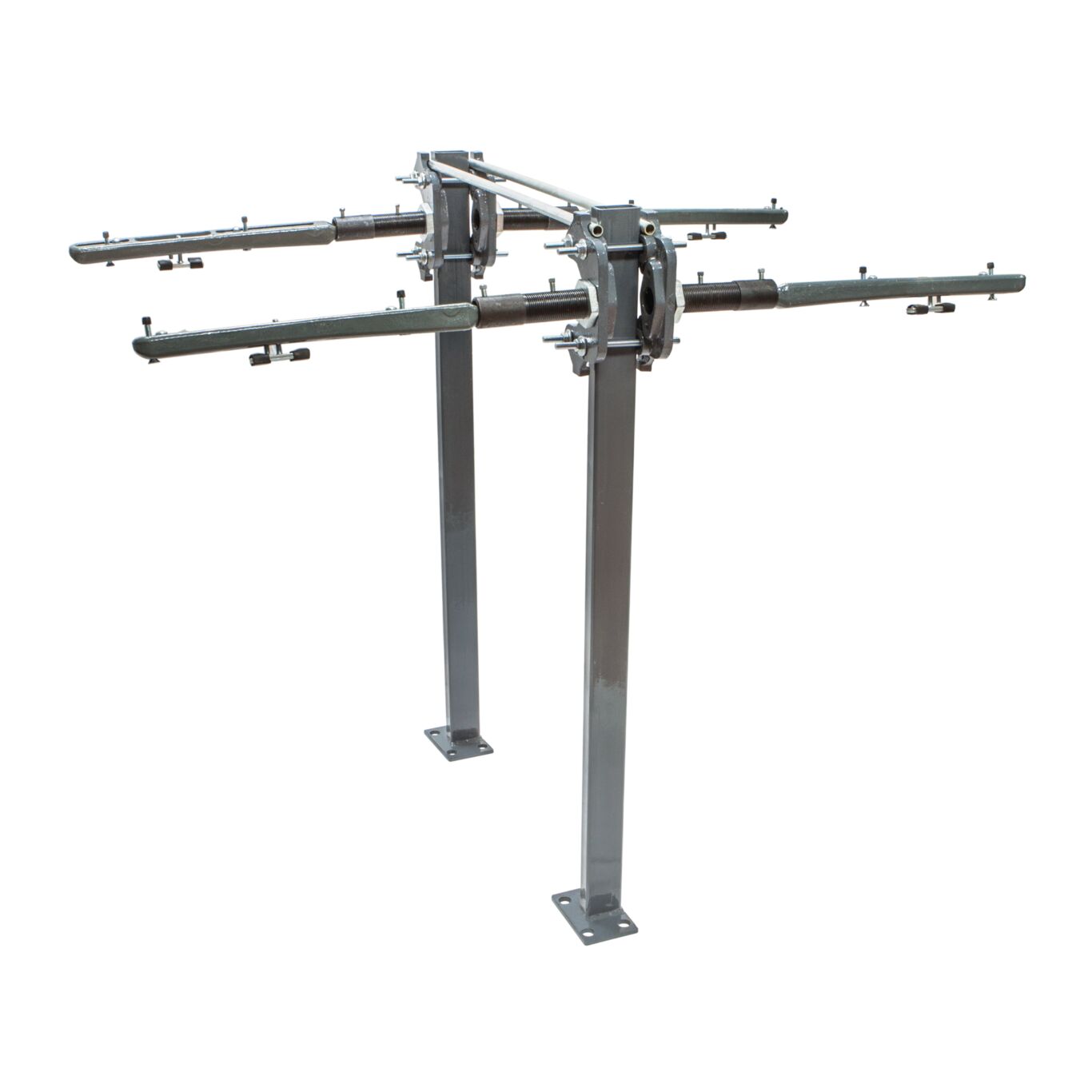

Series WCA-411-D back-to-back floor mounted concealed arm lavatory carrier features heavy gauge steel offset uprights with integral welded feet, adjustable epoxy coated cast iron arms with leveling screws and a basin locking device, an upper tie rod, and plated hardware. It is designed for installation inside 2x6 stud walls, with standard arms that accommodate most 20x18 and 19x17 lavatories. The offset feet allow the uprights to be reversed. Available model (-WC) for 27x20 ADA lavatories.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific WCA-411-D
