WCA-411-WC-WLA
Floor Mounted Lavatory Carrier with Concealed Arms with Integrated Waste Line Access

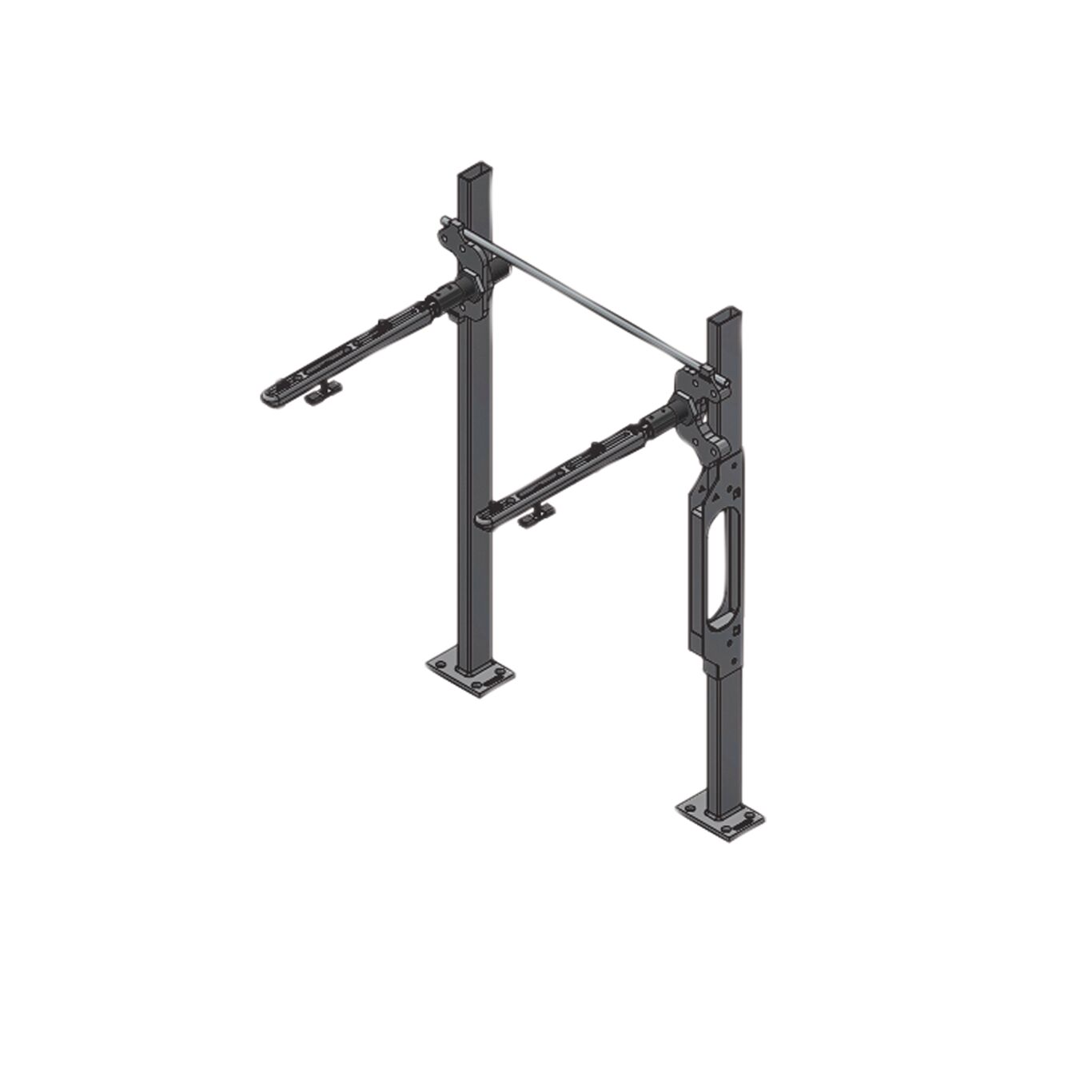

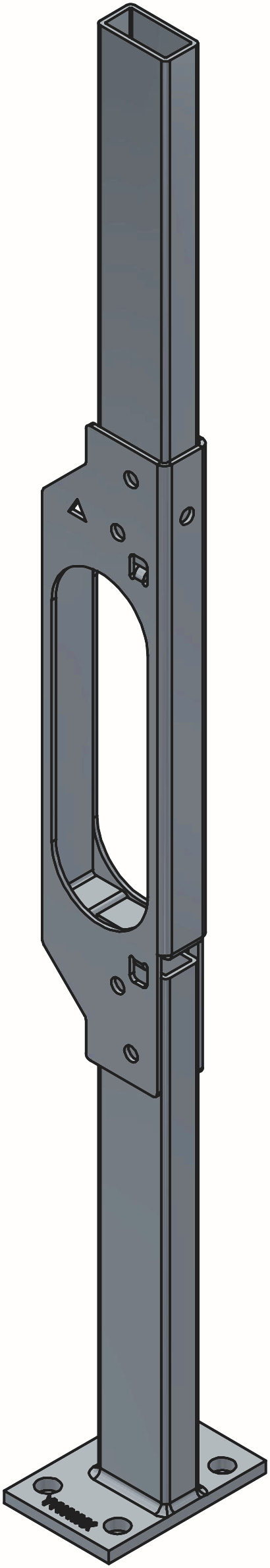

Watts WCA-411-WC-WLA floor mounted concealed arm lavatory carrier with heavy gauge steel offset uprights with integral welded feet and integral waste line access, adjustable epoxy coated cast iron arms with leveling screws and basin locking device, upper tie rod, and plated hardware. Carrier complies with requirements of ASME A112.6.1M up to a 250 lb (113 kg) static load.
Features
- Concealed arms accommodate 27x20 ADA lavatories
- Offset feet allow uprights to be reversed
- Designed for installation inside stud walls
- Carrier complies with requirements of ASME A112.6.1M up to a 250 lb (113 kg) static load
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific WCA-411-WC-WLA
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
ASSE | CSA | FM Approvals | NSF |
UL | ULC | USC | WQA |
