WCA-411-WLA
Floor Mounted Lavatory Carrier with Concealed Arms with Integrated Waste Line Access
WCA-411-WLA
Floor Mounted Lavatory Carrier with Concealed Arms with Integrated Waste Line Access
Features
- Designed for installation inside stud walls
- Standard arms accommodate most 20x18 and 19x17 lavatories
- Offset feet allow uprights to be reversed
- Available model (-WC) for 27x20 ADA lavatories

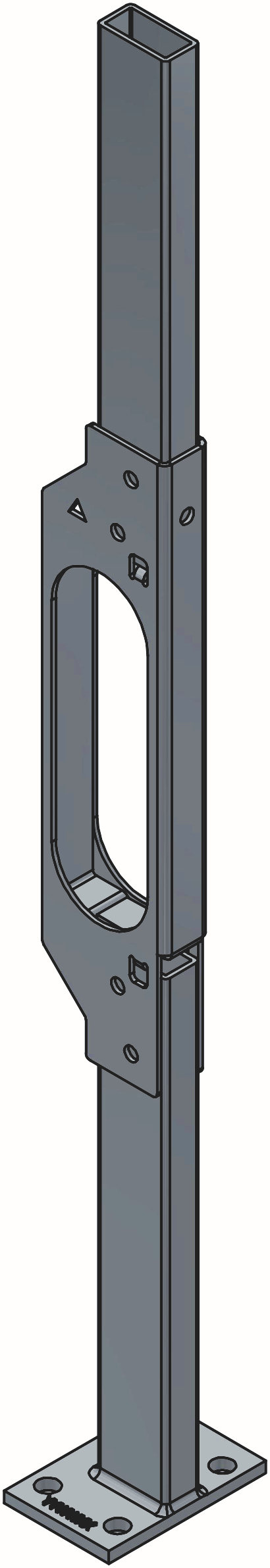

Watts WCA-411-WLA floor mounted concealed arm lavatory carrier features heavy gauge steel offset uprights with integral welded feet and integral waste line access, adjustable epoxy coated cast iron arms with leveling screws and a basin locking device, an upper tie rod, and plated hardware. This carrier complies with ASME A112.6.1M requirements for up to a 250 lb (113 kg) static load. It is designed for installation inside stud walls, with standard arms that accommodate most 20x18 and 19x17 lavatories. The offset feet allow the uprights to be reversed. Available model (-WC) for 27x20 ADA lavatories.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific WCA-411-WLA
