FD-920
×
![]()
Parking Deck Drain for Precast Slabs

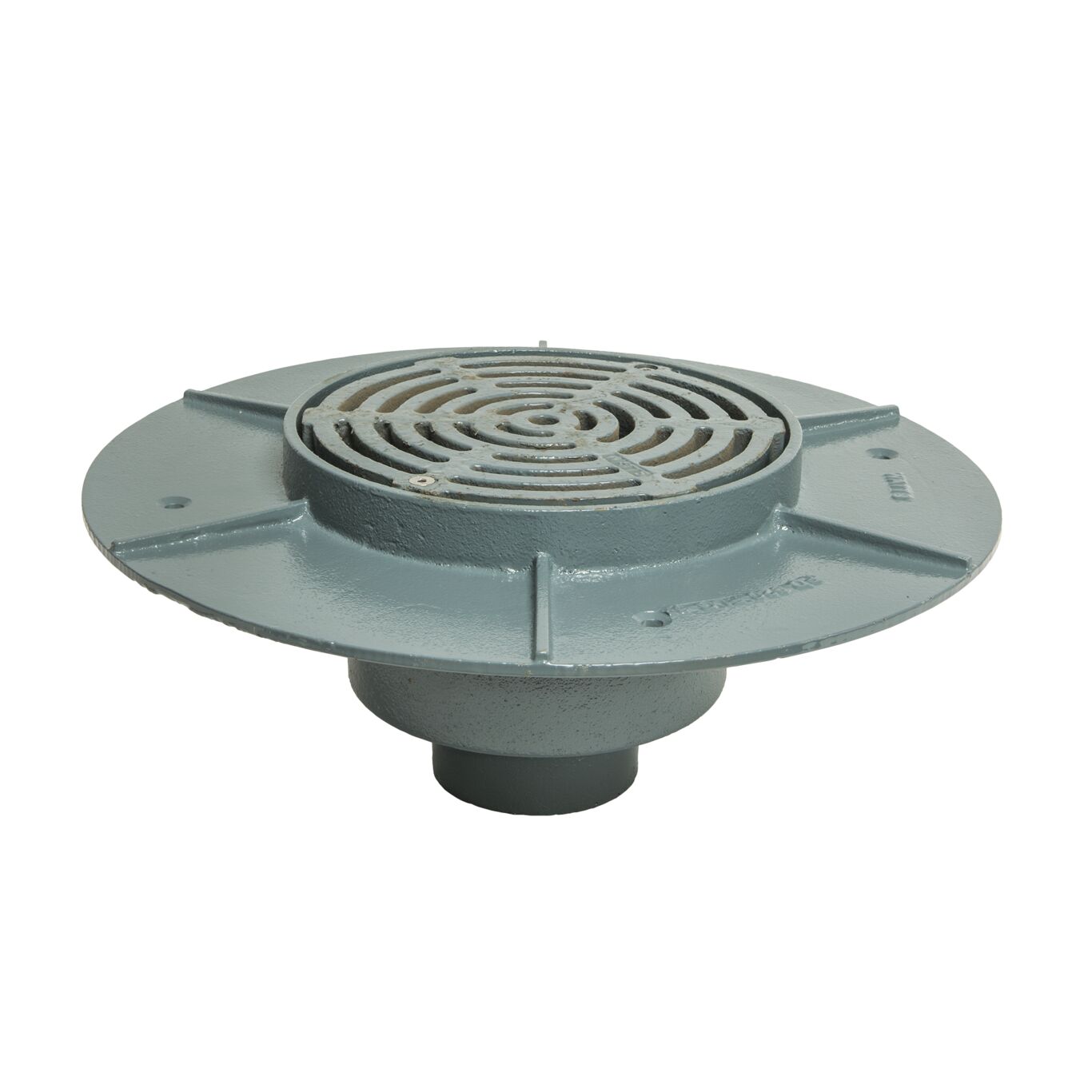

Series FD-920 epoxy coated cast iron parking deck drain with integral countersunk deck flange, 10-7/16 in. (265mm) round top with secured ductile iron heel proof grate, gasket seal between body and top assembly, and no hub (standard) outlet.
Features
- Specified for precast elevated decks
- Rated for heavy commercial traffic
- Deck flange mechanically fastens to structural deck
- Gasket seal prevents leak-through to lower levels
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific FD-920
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
