RD-703-CT
×
![]()
Part of the RD-700-CT Series
Ordering Code: RD-703-CT
UPC: 098268164374
Lead Free: Not In Scope

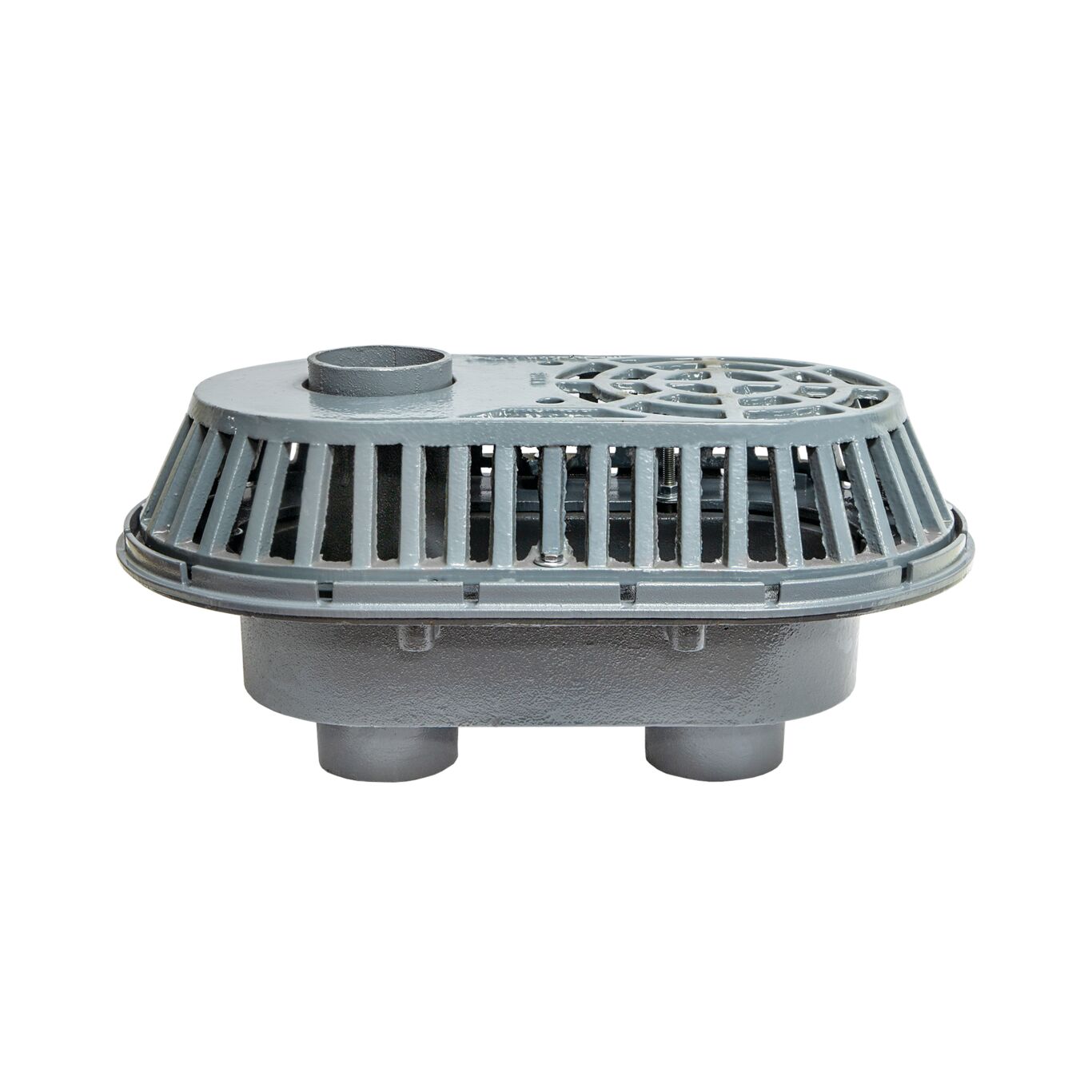

Dual Outlet Roof Drain, Internal Standpipe, 3 IN No Hub, DI Dome, CI Body, Flashing Clamp/Integral Gravel Stop
This Watts Drains epoxy coated cast iron, dual outlet roof drain and overflow combination features a flashing clamp with integral gravel stop, a 4 1/2 inch high internal overflow standpipe, a secured ductile iron dome, a 3 inch no hub outlet and 157 square inches of free area. Its single cut-out design requires less roof cutting allowing for faster and lower cost installation.
Features
- Dual outlet
- 3 IN no hub
- 157 SQ IN free area
- Internal stand pipe
| Specifications | |
|---|---|
| Body Material | Epoxy Coated Cast Iron |
| Brand | Watts |
| Buy American Act Compliant | NO |
| FreeArea | 157 SQ IN |
| Lead Free | Not In Scope |
| Outlet Connection Size | 3 IN |
| Outlet Connection Type | No Hub |
| OverflowDome | Yes |
| OverflowDrain | Internal Standpipe |
