RD-704
Part of the RD-700 Series
Ordering Code: RD-704
UPC: 098268047691
Lead Free: Not In Scope

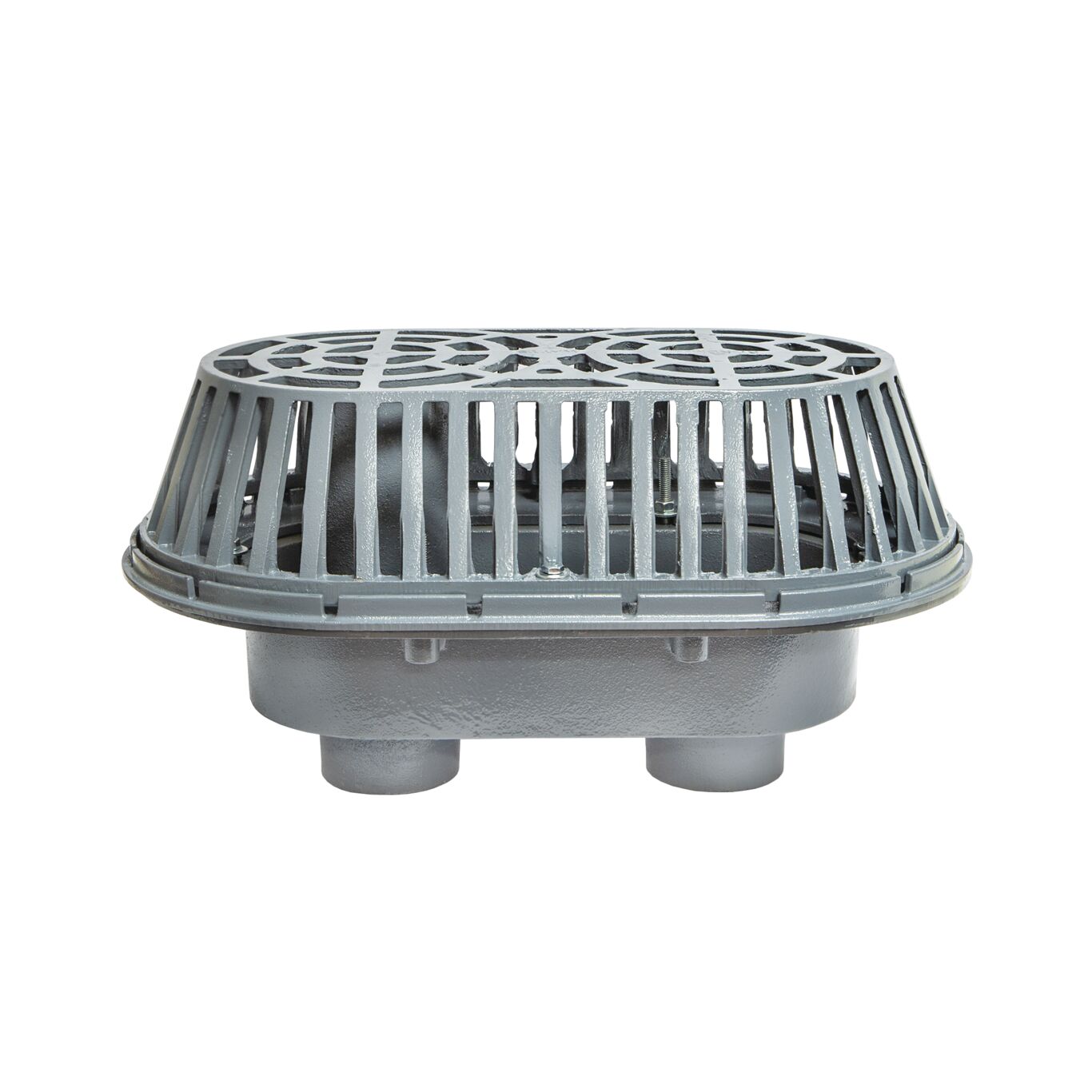

Dual Outlet Roof Drain/Overflow, Epoxy Coated CI, Flashing Clamp, Integral Gravel Guard, 4 IN Int. Overflow Standpipe, Secured DI Dome, 4 IN NH Outlets
This dual outlet, epoxy-coated cast iron roof drain/overflow combination features a flashing clamp, integral gravel stop, a 4 inch high internal overflow standpipe, secured ductile iron dome and 4 inch no hub outlets. Underdeck clamp, deck flange, ballast guard, 2 inch standpipe and various dome options are also available.
Product Features
- Ductile iron dome
- No hub
- Cast iron
- Gravel stop
| Specifications | |
|---|---|
| Body Material | Cast Iron |
| Brand Name | Watts |
| DomeType | Ductile Iron |
| FreeArea | 157 IN |
| Lead Free | Not In Scope |
| Outlet Connection Size | 4 IN |
| Outlet Connection Type | No Hub |
| OverflowDome | Yes |
| OverflowDrain | Internal Standpipe |
-
