RD-808
Part of the RD-800 Series
Ordering Code: RD-808
UPC: 098268164282
Lead Free: Not In Scope

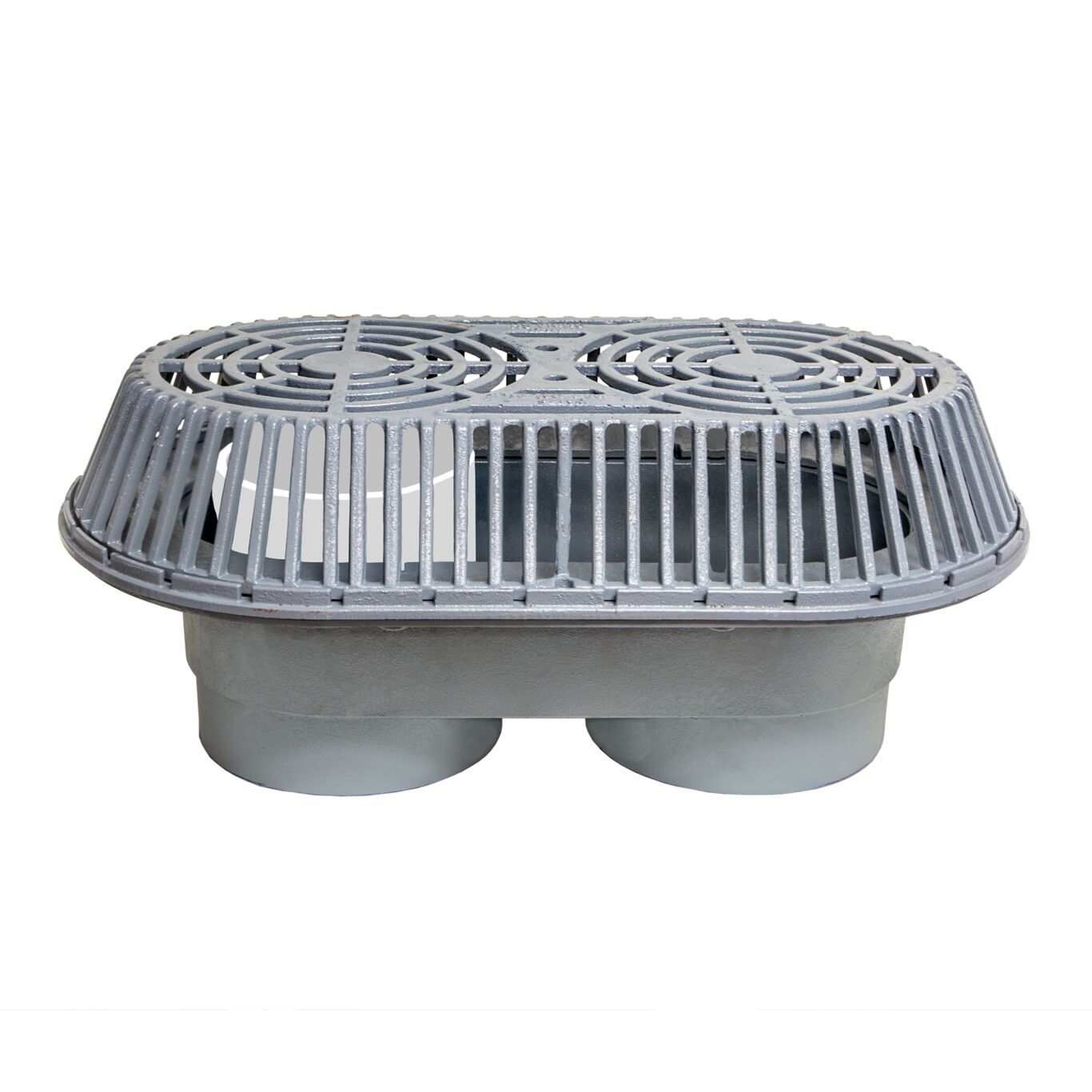

Large Capacity Roof Drain, Dual Outlet, Internal Standpipe, 8 IN No Hub, DI Dome, CI Body, Flashing Clamp/Integral Gravel Stop
This epoxy-coated cast iron, dual outlet, large capacity roof drain and overflow combination features a flashing clamp with integral gravel stop, a 4 inch high internal overflow standpipe, a secured ductile iron dome, an 8 inch no hub outlet and 304 square inches of free area. Options include an underdeck clamp, a deck flange with adjustable extension, stainless steel ballast guard, vandal proofing and a 2 inch high internal overflow standpipe. Its single cut-out design requires less roof cutting allowing for faster and lower cost installation.
Features
- Dual outlet
- 8 IN no hub
- 304 SQ IN free area
- Internal stand pipe
| Specifications | |
|---|---|
| Body Material | Epoxy Coated Cast Iron |
| Brand | Watts |
| Buy American Act Compliant | NO |
| FreeArea | 304 SQ IN |
| Lead Free | Not In Scope |
| Outlet Connection Size | 8 IN |
| Outlet Connection Type | No Hub |
| OverflowDome | No |
| OverflowDrain | Internal Standpipe |
