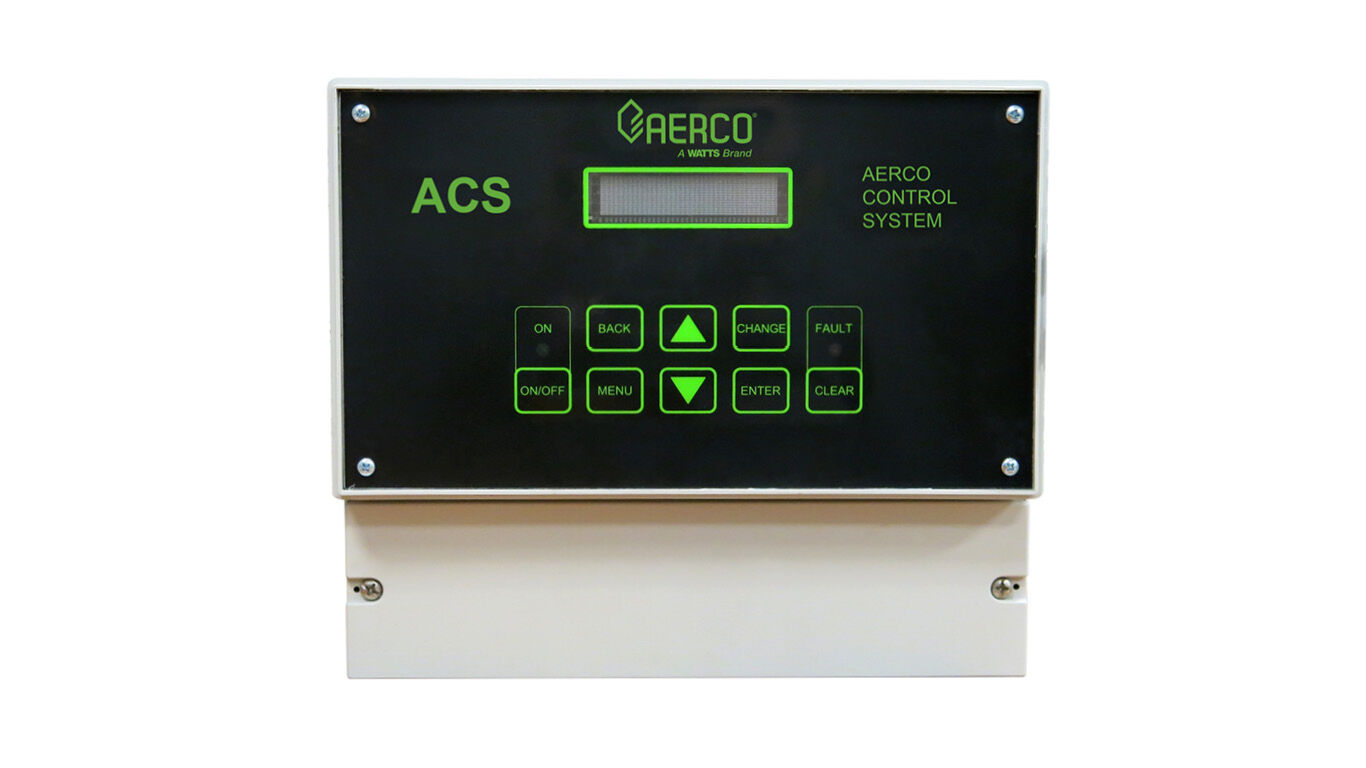

ACS (AERCO Control System)
Maximizes modular heating plant efficiency and energy savings
ACS (AERCO Control System)
Maximizes modular heating plant efficiency and energy savings
This state-of-the-art plant management solution will enable customers with more than one boiler to maximize energy savings through the coordinated operation of up to 32 Benchmark, KC1000 or Modulex boilers.
Features and Benefits
Strongly recommended to maximize modular heating plant efficiency, AERCO Control System (ACS) offers remote access and control of multiple boiler installations and is compatible with Building Automation Systems via Modbus open protocol or conventional analog systems. AERCO also offers a Communications Gateway to support BACnet, Lonworks and N2 system integration.
The ACS is specially designed to leverage the operating efficiency of condensing, gas-fired boilers capable of unmatched 20:1 turndown. It comes equipped with a Header Temperature Sensor and offers customers sequential or parallel application, constant or remote set point operation and provides 100% control of auxiliary boiler equipment while equalizing unit runtime in the boiler plant.
Three domestic hot water heating modes allow application flexibility:
- Header Temperature Boost – Benchmark, KC1000 and Modulex boiler applications
- Domestic Hot Water (DHW) Priority – Benchmark and KC1000 boiler applications
- DHW priority + building priority (swing boiler) – Benchmark and KC1000 boiler applications
- BAS-equipped customers can be notified of faults throughout the boiler plant and can remotely examine up to 35 aspects of each boilers operation through a single connection point.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific ACS (AERCO Control System)
No results found
Download CAD Files
-
- ACS - Benchmark and DHW StorageTank, Building Heat Priority, Applications (SD-A-880) (.dwg)
- ACS - Benchmark and DHW StorageTank, Building Heat Priority, Applications (SD-A-880) (.pdf)
- ACS - Benchmark, DHW Storage Tank DHW Priority (ACS Only) Applications (SD-A-915) (.dwg)
- ACS - Benchmark, DHW Storage Tank DHW Priority (ACS Only) Applications (SD-A-915) (.pdf)
- ACS - Benchmark, SmartPlate, Buffer Tank - DHW and Building Heat Priority Applications (SD-A-797) (.dwg)
- ACS - Benchmark, SmartPlate, Buffer Tank - DHW and Building Heat Priority Applications (SD-A-797) (.pdf)
- ACS - Benchmark, SmartPlate, Buffer Tank Header Temperature Boost Applications (SD-A-912) (.dwg)
- ACS - Benchmark, SmartPlate, Buffer Tank Header Temperature Boost Applications (SD-A-912) (.pdf)
- ACS - DHW Priority (ACS + ACS Relay Box) Benchmark and DHW StorageTank Applications (SD-A-881) (.dwg)
- ACS - DHW Priority (ACS + ACS Relay Box) Benchmark and DHW StorageTank Applications (SD-A-881) (.pdf)
- ACS - DHW Priority (ACS + ACS Relay Box) Benchmark, SmartPlate, Buffer Tank Applications (SD-A-798) (.dwg)
- ACS - DHW Priority (ACS + ACS Relay Box) Benchmark, SmartPlate, Buffer Tank Applications (SD-A-798) (.pdf)
- ACS - DHW Priority (ACS Only) Benchmark, SmartPlate, Buffer Tank Applications (SD-A-916) (.dwg)
- ACS - DHW Priority (ACS Only) Benchmark, SmartPlate, Buffer Tank Applications (SD-A-916) (.pdf)
- ACS - Header Temperature Boost Benchmark and DHW Storage Tank Applications (SD-A-882) (.dwg)
- ACS - Header Temperature Boost Benchmark and DHW Storage Tank Applications (SD-A-882) (.pdf)
- ACS - Header Temperature Boost Modulex and DHW Storage Tank Applications (SD-A-914) (.dwg)
- ACS - Header Temperature Boost Modulex and DHW Storage Tank Applications (SD-A-914) (.pdf)
- ACS - Header Temperature Boost Modulex, SmartPlate, Buffer Tank Applications (SD-A-913) (.dwg)
- ACS - Header Temperature Boost Modulex, SmartPlate, Buffer Tank Applications (SD-A-913) (.pdf)
- Benchmark S 2000-3000 - Zero Side Clearance (2 Pairs) with ACS, 2 Port Buffer Tank and SmartPlate (SD-A-963) (.dwg)
- Benchmark S 2000-3000 - Zero Side Clearance (2 Pairs) with ACS, 2 Port Buffer Tank and SmartPlate (SD-A-963) (.pdf)
- Benchmark S 6000 - Primary Variable Flow Single Unit Installation with ACS with Coil in a Tank (SD-A-954) (.pdf)
- Benchmark S 6000 - Zero Side Clearance (2 Pairs) with ACS, 2 port Buffer Tank and SmartPlate, Primary Variable Flow (SD-A-956) (.dwg)
- Benchmark S 6000 - Zero Side Clearance (2 Pairs) with ACS, 2 port Buffer Tank and SmartPlate, Primary Variable Flow (SD-A-956) (.pdf)
- Benchmark Series - Single Unit Installation with ACS and Indirect Storage Heater-Primary Variable Flow (SD-A-961) (.dwg)
- Benchmark Series - Single Unit Installation with ACS and Indirect Storage Heater-Primary Variable Flow (SD-A-961) (.pdf)
