PX690004-10
×
![]()
Part of the SST20 Compression Fittings Series
Ordering Code: 81005172
UPC: 840213073770
Lead Free: Not In Scope

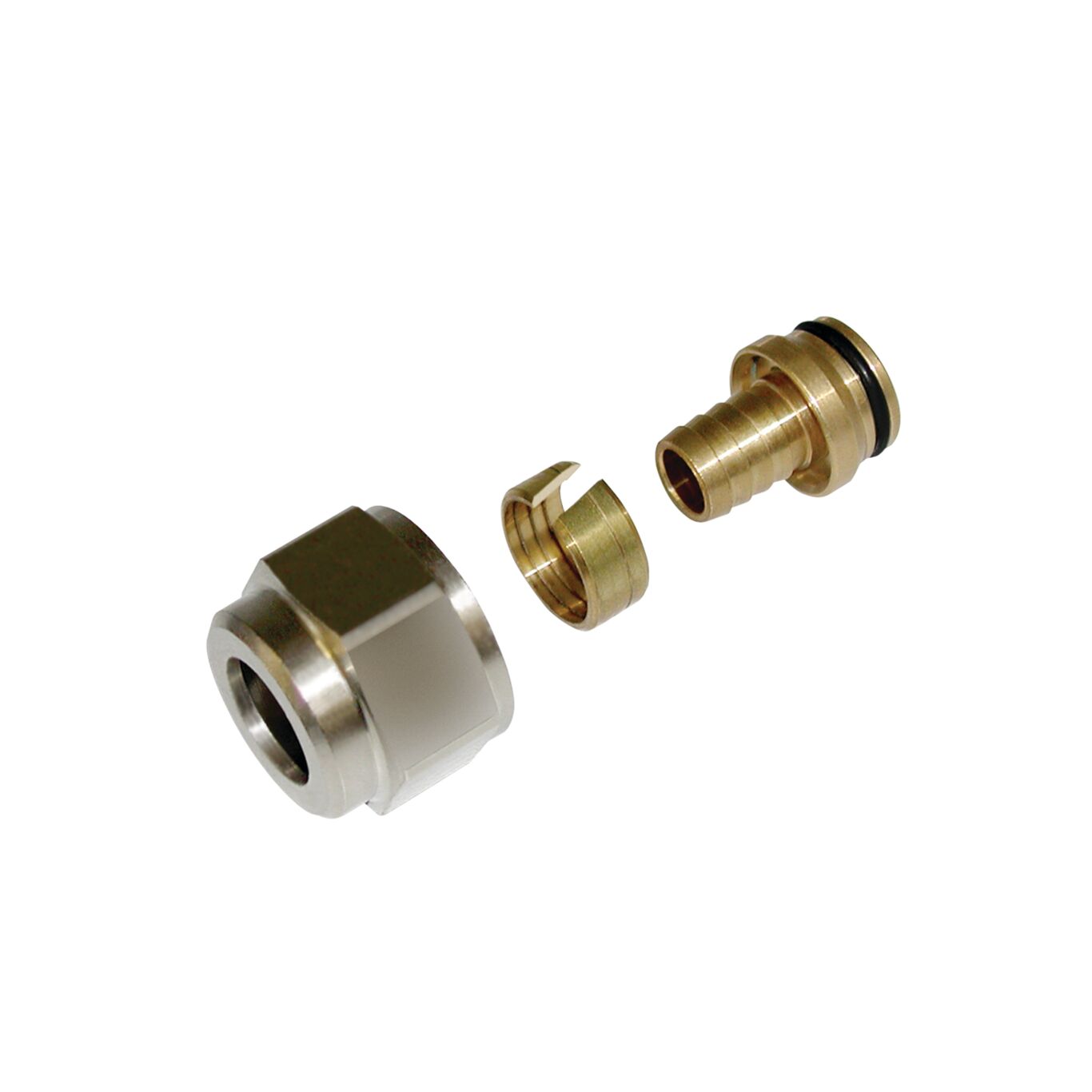

3/4 IN PEX Comp x 3/4 IN SST20 Swivel BSP Compression Fitting
Compression x SS-T20 BSP Fittings are available for many applications, including connecting RadiantPEX/RadiantPERT to Stainless Steel Manifolds or to 3/4 in. male BSP x male sweat fittings. SS-T20 Compression Fitting models are also used to connect RadiantPEX-AL to stainless steel and T20 manifolds. SS-T20 Compression Coupling Kits (non-BSP) join lengths of RadiantPEX/RadiantPERT.
Features
- Nickel plated
- For connecting PEX to stainless steel manifolds
- For Custom Tubular SST20 Compression manifolds
- For hydronic heating and snow melting applications
| Specifications | |
|---|---|
| Brand | Watts |
| Brass Insert | Yes |
| Buy American Act Compliant | NO |
| EAN | 840213073770 |
| Finish | Stainless Steel |
| Fitting Name | Connector |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Size-Metric | 20 MM |
| Inlet Connection Type | Compression Joint |
| Inlet Material | Brass |
| Inlet Thread Type | BSPT |
| Inner Diameter | 3/4 IN |
| Lead Free | Not In Scope |
| Material | Brass |
| Maximum Working Pressure-BAR | 6.89 |
| Maximum Working Pressure-PSI | 100 |
| Maximum Working Temperature-Celsius | 82.00 |
| Maximum Working Temperature-Fahrenheit | 180 |
| Minimum Temperature - Celsius | 9999.00 |
| Minimum Temperature-Fahrenheit | 9999 |
| O-ring Material | EPDM |
| Outer Diameter | 3/4 IN |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Swivel Joint |
| Outlet Material | Brass |
| Outlet Thread Type | BSPT |
| Part Number | 81005172 |
| Series | SST20 Compression Fittings |
| Suitable for Gas Service | No |
