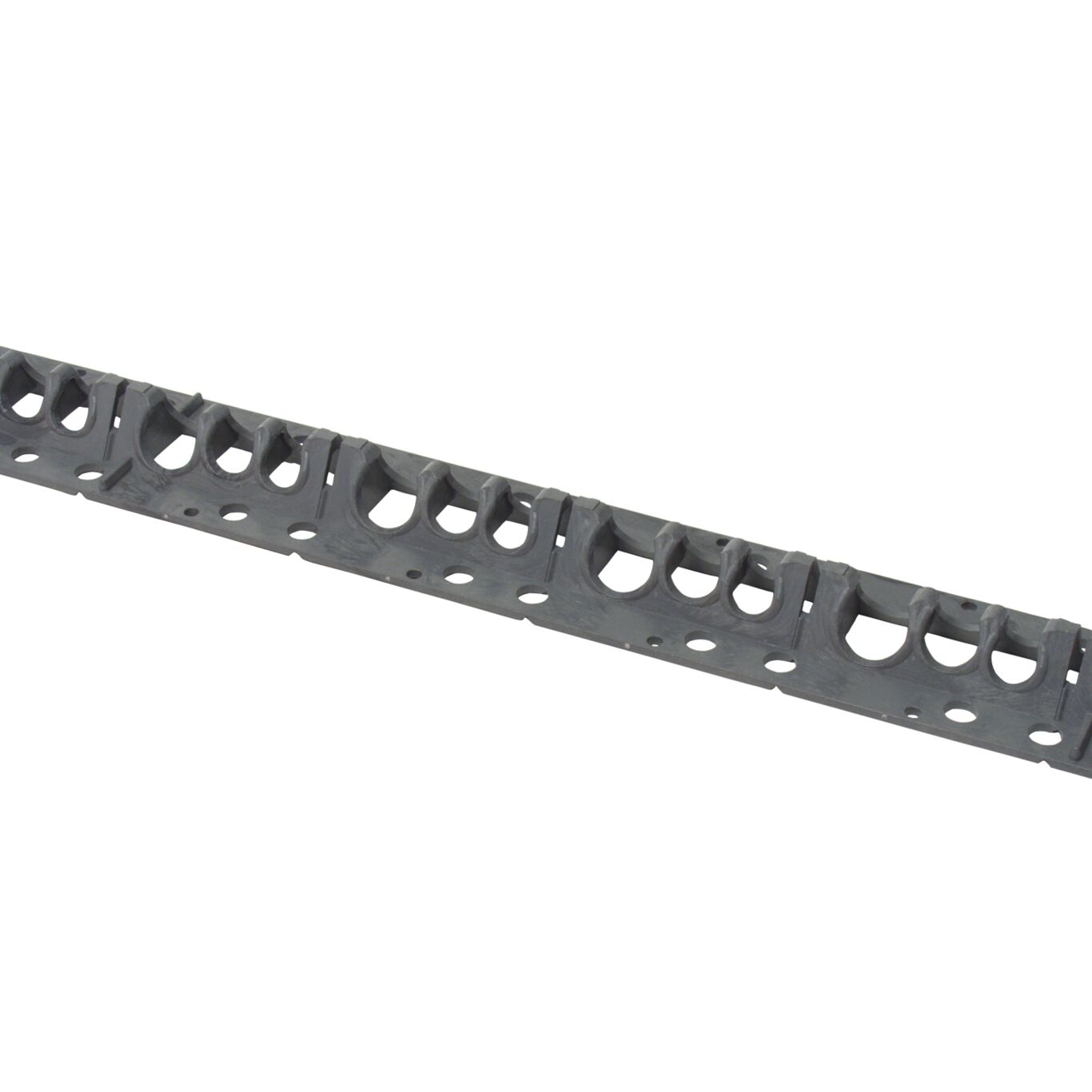

Railway Triple-Track
Railway, Triple-Track, 4’
Triple-Track Railways securely hold several sizes of radiant tubing where rewire or rebar are not used. Use for: 3/8 in. Onix; 3/8 in., 1/2 in., and 5/8 in. RadiantPEX/RadiantPERT; and 3/8 in., 1/2 in. and 5/8 in. RadiantPEX-AL. Applications include concrete slabs, thinslabs, sand beds, and subgrade gravel layers. Triple-Track Railways are sold in 4 ft. lengths and allow almost any spacing — 6 in., 9 in., 12 in., 15 in., or 18 in. Figure one railway approximately 8 square feet.
Features
- Securely holds several sizes and types of radiant tubing where rewire or rebar are not used
- Use in concrete slabs, thinslabs, sand beds, and subgrade gravel layers
- Sold in 4 ft. lengths and allows almost any spacing
- Channels are designed to flex and hold tubing
- Integrated mounting holds are designed to work with standard foam-board staples or plastic nails
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Railway Triple-Track
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
