Custom Tubular Manifolds - Compression
Custom Tubular Manifolds for RadiantPEX-AL Compression

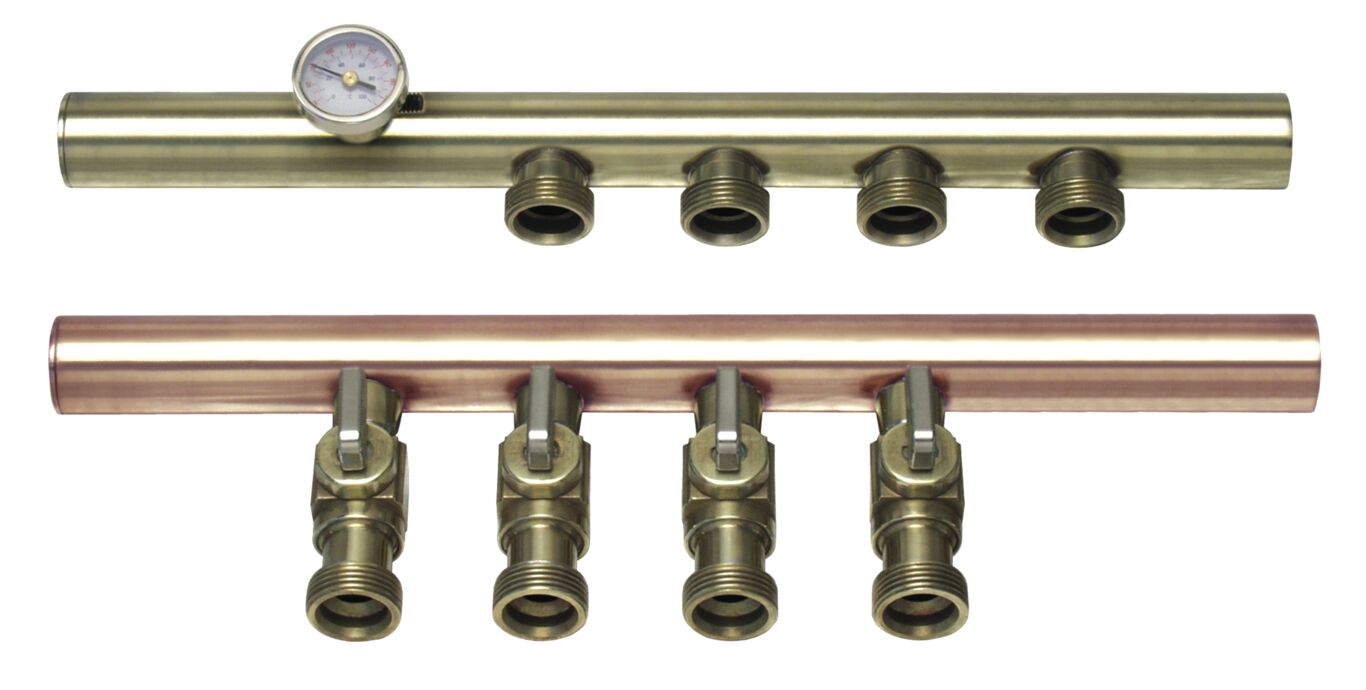

Custom Tubular Manifolds for RadiantPEX-AL Compression are fitted with RadiantPEX-AL Compression brass fittings and include a compression nut and ring. Customization options include four balancing configurations: no balancing, mini-ball valves on the return manifold, mini-ball valves on the supply and return manifolds, and mini-valves on the supply manifold with balance ball valves on the return. Specify from 1-15 circuits, and barb size options in 3/8 in., 1/2 in., 5/8 in., and 3/4 in. Manifold trunk sizes are 1 in., 1-1/4 in., 1-1/2 in., and 2 in. These manifolds are pressure tested in the factory and warranted. Custom Tubular Manifolds are supply and return pairs. In addition, several accessories can be installed on Custom Copper Tubular Manifolds.
Features
- Customization at the factory allows you to specify exactly what you want
- Order from 1-15 circuits, four barb sizes, and four manifold trunk sizes
- Several accessories are available
- Factory tested and warranted
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Custom Tubular Manifolds - Compression
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
