Custom Tubular Manifolds for PEX Crimp

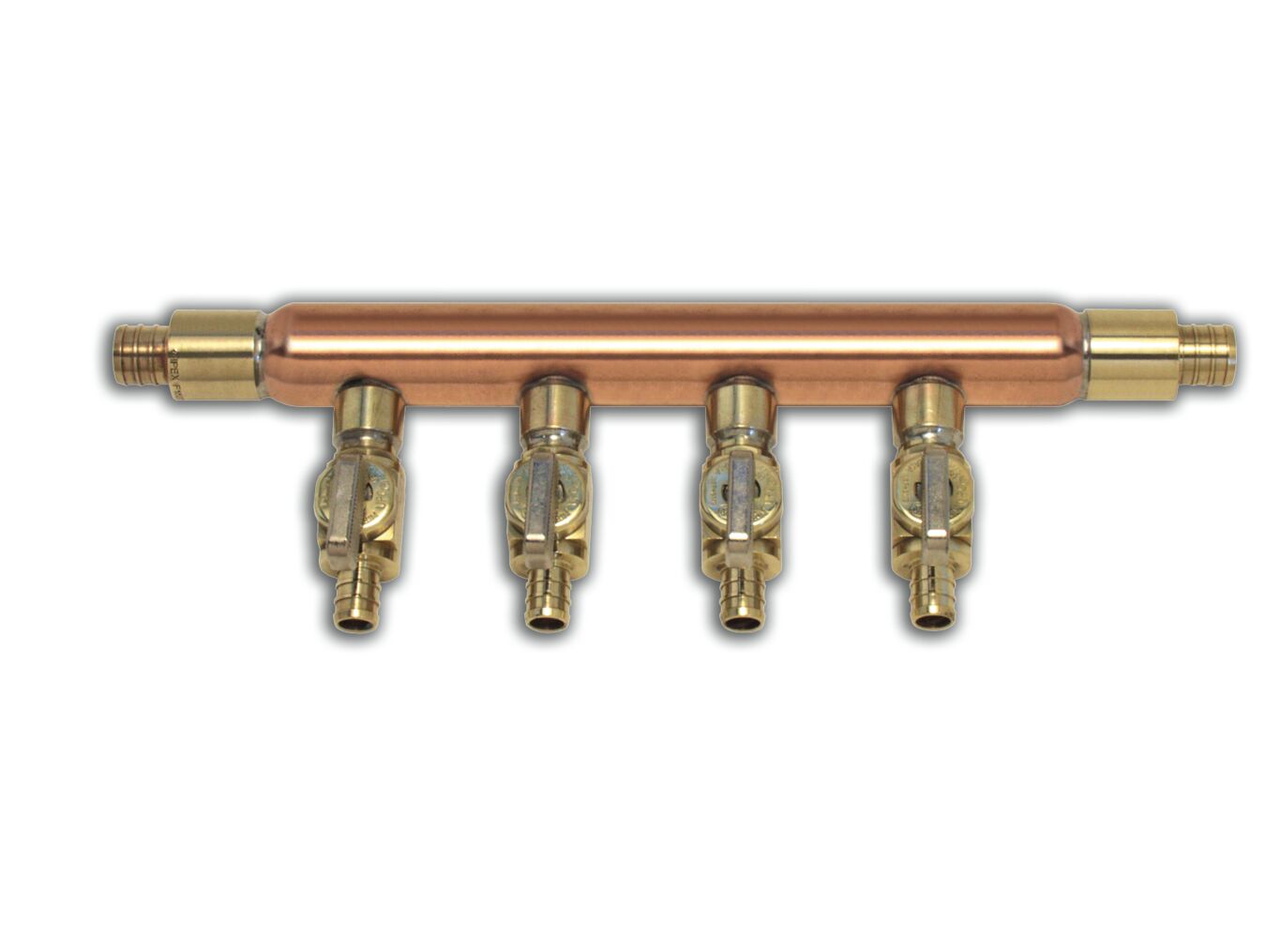

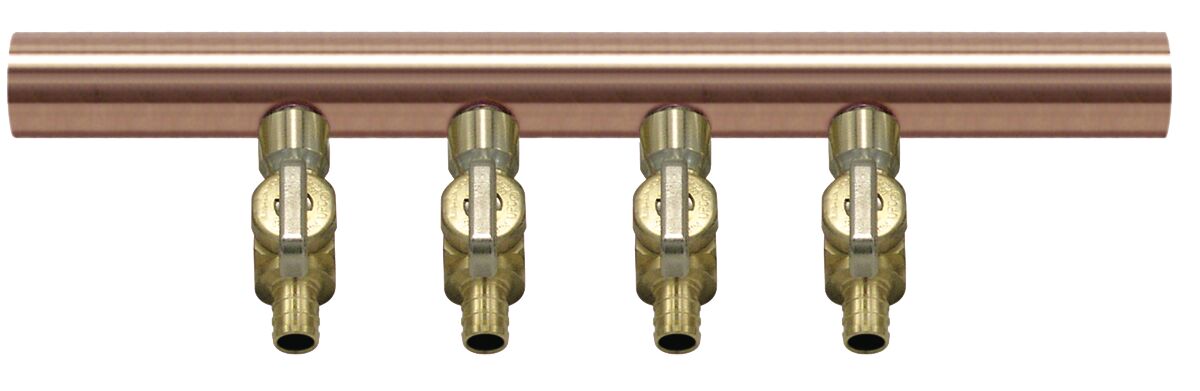

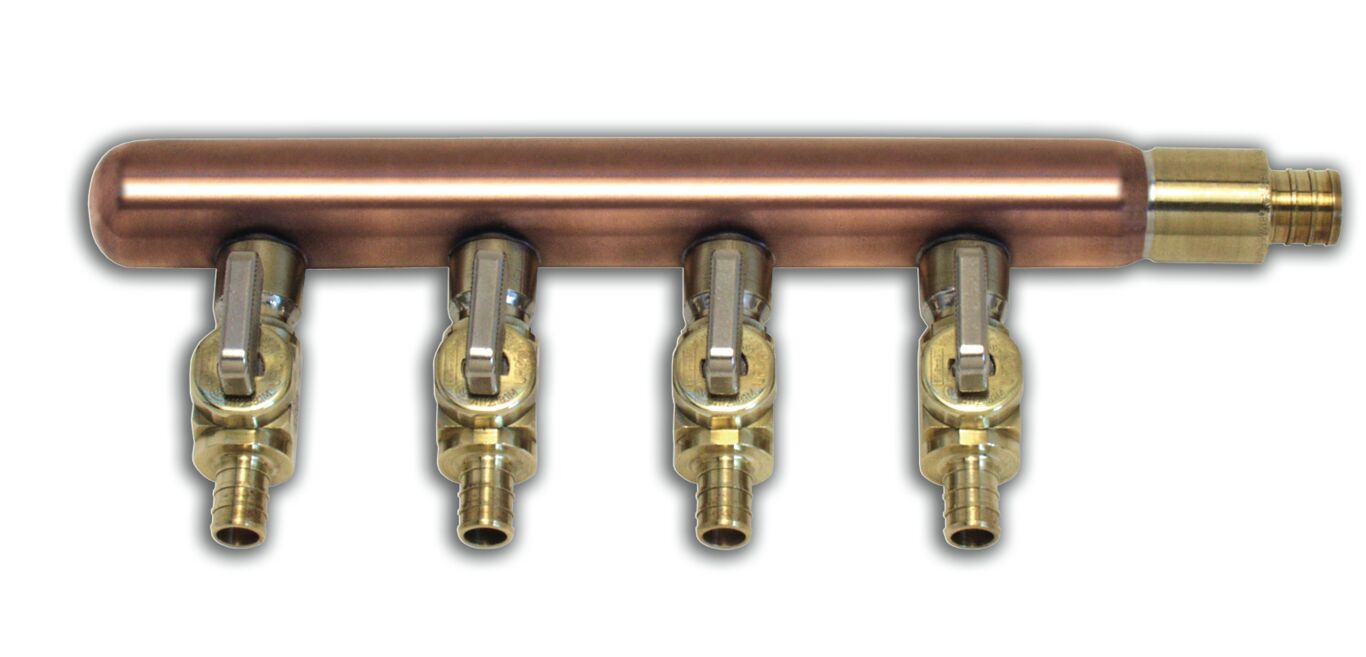

Custom Tubular Manifolds for PEX Crimp are fitted with brass PEX Crimp fittings. Customization options include four balancing configurations: no balancing, mini-ball valves on the return manifold, mini-ball valves on the supply and return manifolds, and mini-valves on the supply manifold with balance ball valves on the return. Specify from 1-15 circuits, and barb size options in 3/8 in., 1/2 in., 5/8 in., and 3/4 in. Manifold trunk sizes are 1 in., 1-1/4 in., 1-1/2 in., and 2 in. These manifolds are pressure tested in the factory and warranted. Custom Tubular Manifolds are supply and return pairs. In addition, several accessories can be installed on Custom Copper Tubular Manifolds.
Features
- Customization at the factory allows you to specify exactly what you want
- Order from 1-15 circuits, four barb sizes, and four manifold trunk sizes
- Several accessories are available
- Factory tested and warranted
Literature
-
- Brochure - RadiantPEX Plus
- Brochure - RadiantPEX Plus (French)
- Maintenance Manual - RadiantPEX, RadiantPEX Plus, RadiantPERT Coils and RadiantPEX-AL Coils
- Maintenance Manual - RadiantPEX, RadiantPEX Plus, RadiantPERT Coils and RadiantPEX-AL Coils (French)
- Schematic - Copper Manifold Models
- Specification Sheet - RadiantPEX Plus - Manifold
- Watts Radiant Zone Worksheet
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific Custom Tubular Manifolds - PEX Crimp
