ThermalPro Mixed Boiler Stations
Discontinued
ThermalPro Mixed Boiler Station

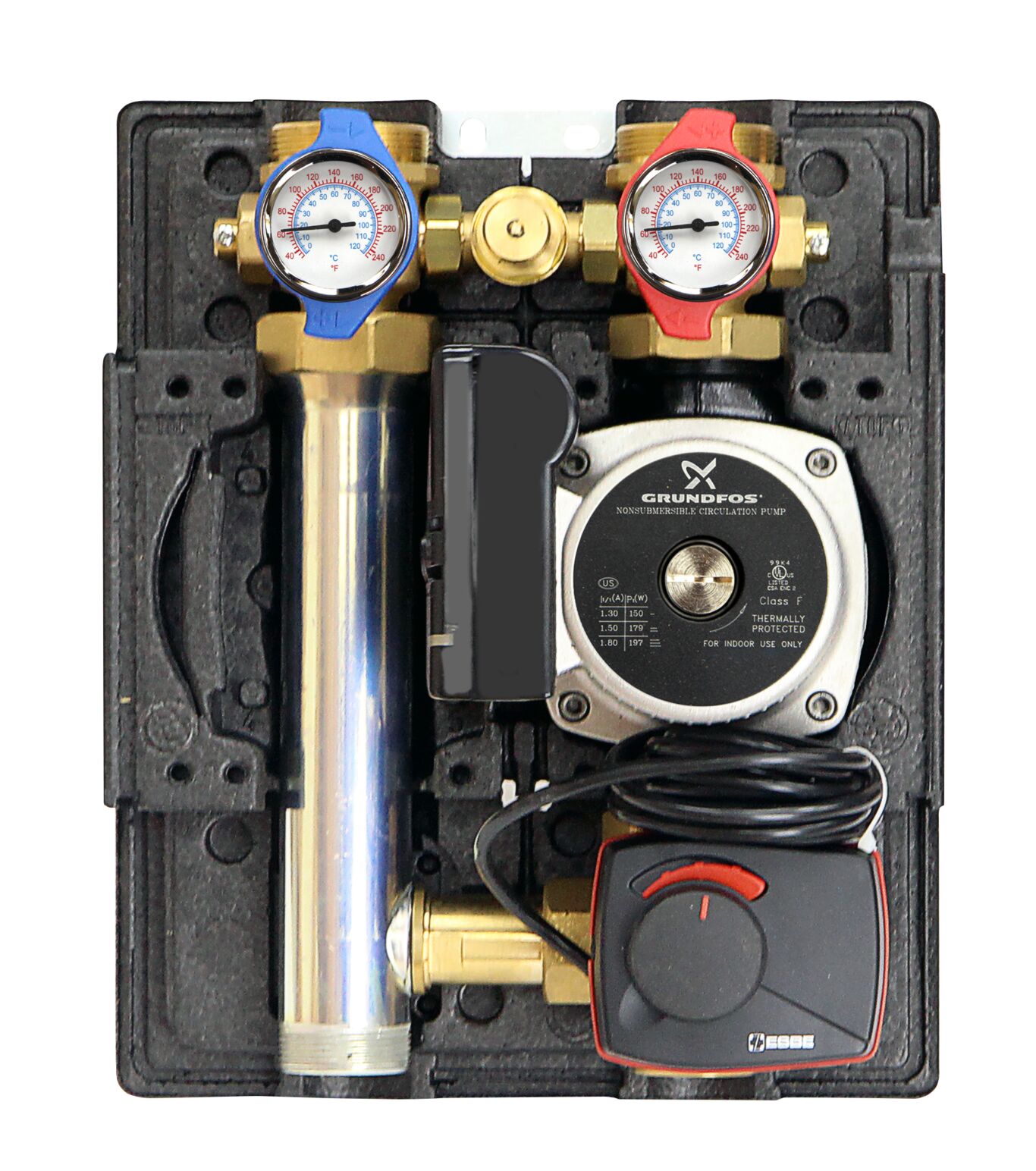

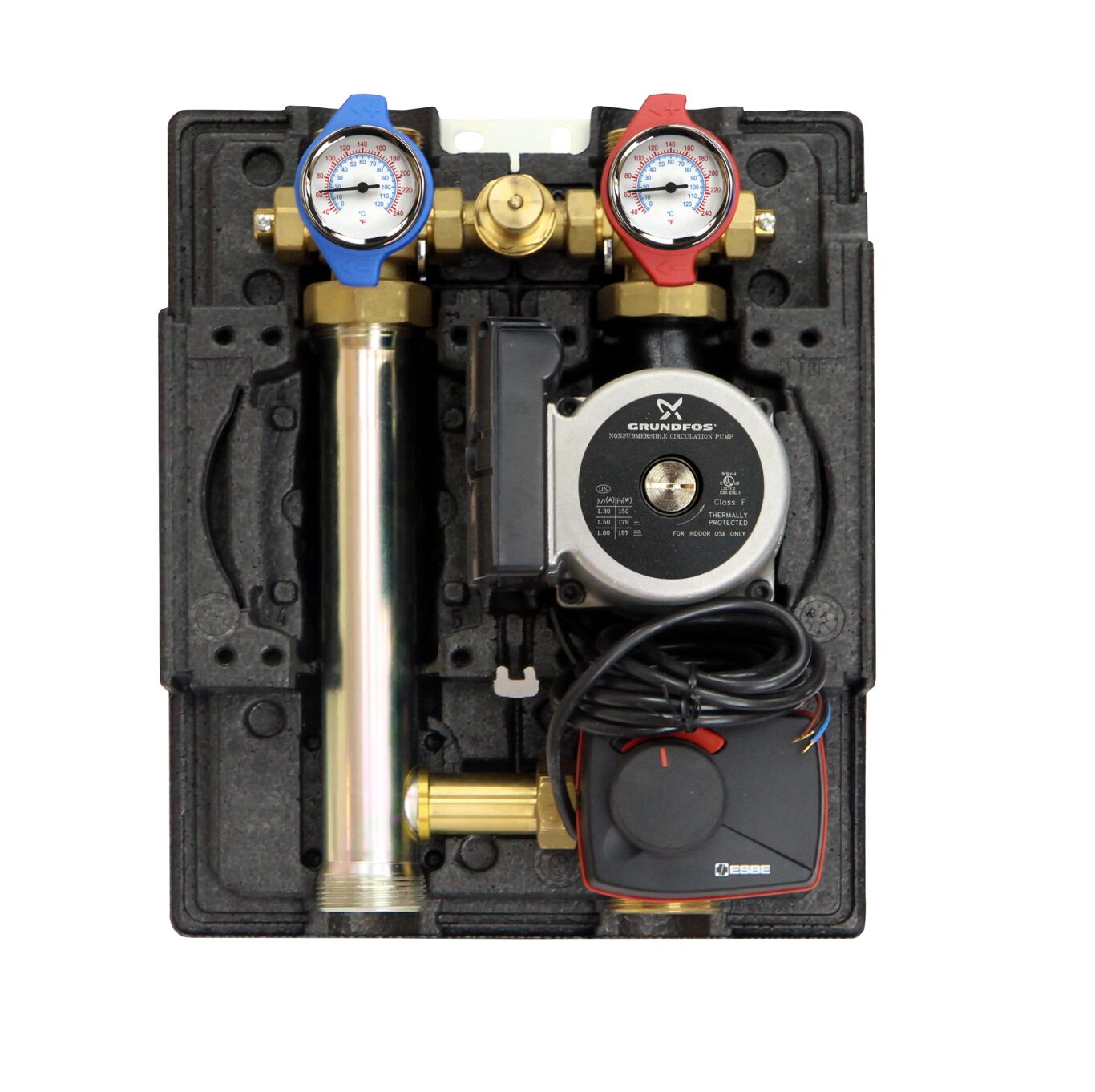

ThermalPro Mixed Boiler Station is a compact, pre-piped mechanical system complete with circulator, isolation ball valves, thermometers, pressure bypass valve, sensor wells for control sensors, multi-segmented insulation to control heat loss, and a 24 volt, 3-way mixing valve. ThermalPro boiler stations are designed to speed up installation by connecting directly to a hydronic heating system providing a complete and compact piping and mixing system in a box. They can handle up to 150,000 Btu/h. ThermalPro Mixed Boiler Stations are designed to provide low temperature floor heating by connecting the mixing valve to the mixing control of your choice (not provided). The mixing valve is equipped with a manual adjustment knob, which can be used for single zone operation or temporary control of a multi-zone low temperature floor heating system.
Features
- Speeds up installation by connecting directly to a hydronic heating system and providing a complete and compact piping and mixing system in a box
- Provides low temperature floor heating by connecting the mixing valve to the mixing control of your choice (not provided)
- Headers can connect to 2 to 5 stations
- Factory-built professional appearance, quick installation, and factory warranty
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific ThermalPro Mixed Boiler Stations
No results found
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
