PT032161-20
×
![]()
Part of the RadiantPERT Coils Series
Ordering Code: 81016358
UPC: 840213000820
Lead Free: Not In Scope

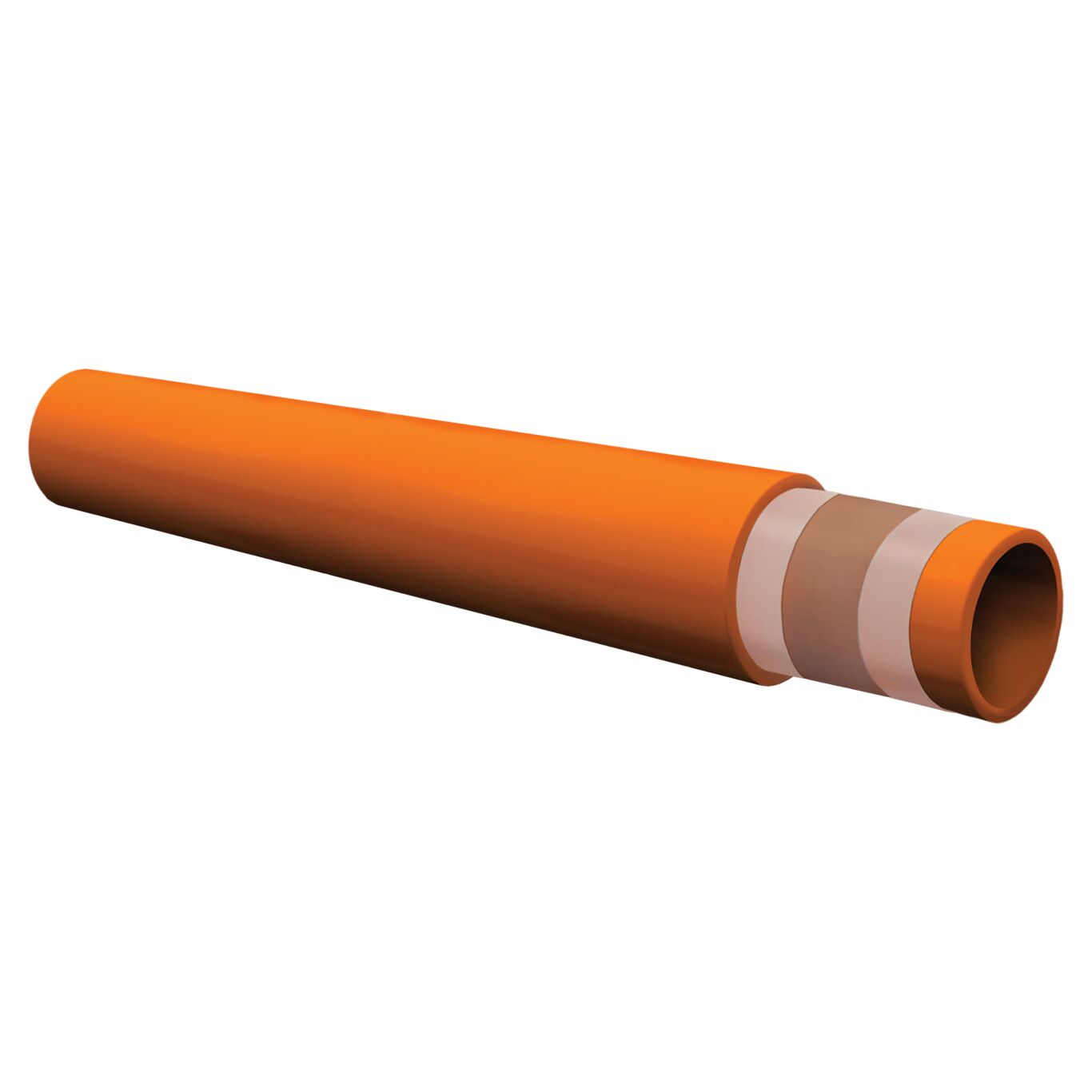

1 IN x 20 FT PERT Barrier Tubing, Bundle Of 5 Sticks
This 1 inch x 20 foot oxygen barrier PERT tubing is used for radiant floor heating, snow melting applications, and supply and return piping. It is a durable and flexible raised temperature polyethylene tubing that enables higher burst strengths, higher anti-oxidant protection and provides excellent flow characteristics. This tubing is manufactured to ASTM F877, F1807 and F2159 standards and conforms to ASTM F2623.
Features
- Five layer polyethylene raised temperature tubing protects the EVOH oxygen barrier
- Durable and highly flexible
- Excellent flow characteristics
- Fully recyclable
| Specifications | |
|---|---|
| Bend Radius | 5.60 |
| Body Material | Polyethylene |
| Brand | Watts |
| Color | Orange |
| EAN | 840213000820 |
| Lead Free | Not In Scope |
| Maximum Working Pressure-PSI | 180 |
| Part Number | 81016358 |
| Series | RadiantPERT Coils |
