Discontinued - Replaced By: ETX-15

Part of the ET Series

Ordering Code: 0067401

UPC: 098268007558

Lead Free: Not In Scope

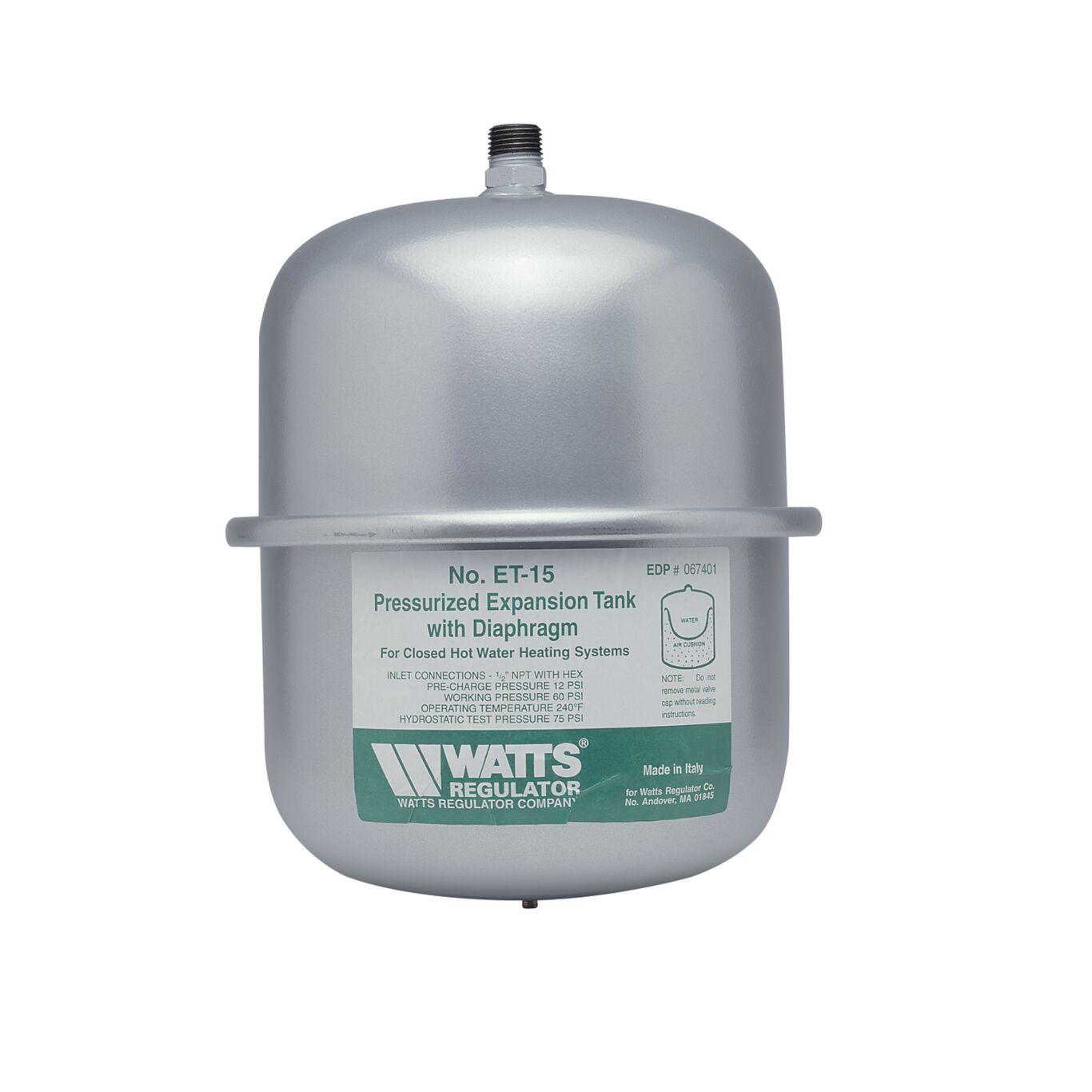

Non-Potable Expansion Tank, 1/2 In Male Npt

This non-potable water expansion tank is for use in commercial and residential closed loop hydronic heating system piping to control the thermal expansion of hot water and maintain system pressure below the relief setting of the relief valve. The pre-pressurized steel tank features a durable expansion membrane that prevents contact of the water with the air in the tank. This rugged diaphragm minimizes loss of the air change and ensures long and trouble-free life for the system. Maximum pressure is 60 psi (4.1 bar). Connection is 1/2 IN male NPT.

Product Features

  • Compact size
  • Precharged to 12 psi
  • Steel construction
  • Rugged flexible diaphragm
Brand Name Watts
Inlet Connection Size 1/2 IN
Inlet Connection Size-Metric 15 MM
Inlet Connection Type Male Threaded
Lead Free Not In Scope
Maximum Operating Temperature-Fahrenheit 210
Maximum Working Pressure-PSI 60
Tank Acceptance 1.4 Gallon
