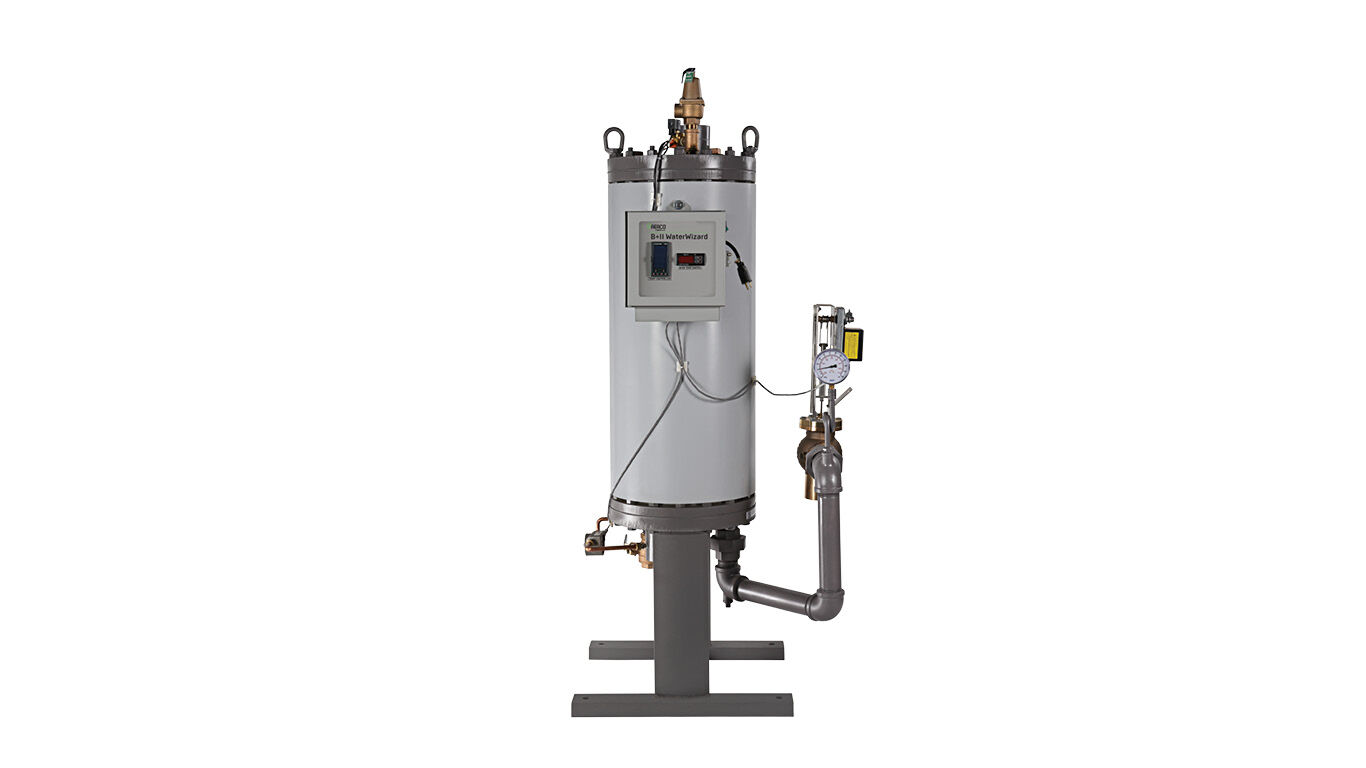

B+II WaterWizard
Steam-to-water water heater, compact, tankless design, 500 to 1100 MBH
B+II WaterWizard
Steam-to-water water heater, compact, tankless design, 500 to 1100 MBH
Features
- Steam-to-water water heater
- Compact, tankless design
- 500 to 1100 MBH
Our most popular steam-to-water package, the B+II WaterWizard features dedicated sub-cooling capabilities for enhanced operating efficiency.
AERCO's unique feed-forward monitoring system and fully modulating control valves maintain +/-4°F water temperatures under the persified load patterns of commercial domestic hot water applications. Performing with 90%-99% thermal efficiency, the unique 2-pass helical coil heat exchanger design of these single wall heaters is self-descaling and produces sub-cooled condensate (<160°F) to preserve condensate return pump life. All units are compatible with low or high steam pressures and do not require a storage tank, trap or associated maintenance.
Features and Benefits
- Accurate temperature control ±4°F
- Low-cost installation with compact <4 ft2 tankless footprint
- Sub-cooling design for maximum efficiency
- Self-descaling design reduces maintenance
- Long-lasting durability
- Automatic condensate subcooling
- Fully modulating variable steam input
- No trap or storage tanks required
- Low surface temperature
- ASME- B&PV Code Sec. VIII, Div. 1 stamped
- All copper, copper alloy or stainless steel wetted surfaces
- Choice of electronic or pneumatic controls
- 10-Year warranty on complete heat exchanger
- 20-Year warranty on pressure vessel and integral demand anticipator
- Available in 13 sizes, from 500 to 11000 MBH
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific B+II WaterWizard
No results found
Download CAD Files
-
- B+II WaterWizard - Packaged Assembly with Pneumatic Control Valve (AP-A-917) (.pdf)
- B+II WaterWizard - 10, 11 Coil EC Units - REVIT
- B+II WaterWizard - 12, 13 Coil EC Units - REVIT
- B+II WaterWizard - 14, 15 Coil EC Units - REVIT
- B+II WaterWizard - 3 Coil EC Units - REVIT
- B+II WaterWizard - 4, 5 Coil EC Units - REVIT
- B+II WaterWizard - 6, 7 Coil EC Units - REVIT
- B+II WaterWizard - 8, 9 Coil EC Units - REVIT
- B+II WaterWizard - Packaged Assembly with Electronic Control Valve (AP-A-909) (.dwg)
- B+II WaterWizard - Packaged Assembly with Electronic Control Valve (AP-A-909) (.pdf)
- B+II WaterWizard - Packaged Assembly with Pneumatic Control Valve (AP-A-917) (.dwg)
- B+II WaterWizard - Packaged with Electronic Control Valve, Canada (AP-A-785) (.dwg)
- B+II WaterWizard - Packaged with Electronic Control Valve, Canada (AP-A-785) (.pdf)
- B+II WaterWizard - Pneumatic Control Box Layout (SD-A-490) (.dwg)
- B+II WaterWizard - Pneumatic Control Box Layout (SD-A-490) (.pdf)
- B+II WaterWizard - Pneumatic Controls Temperature Limit System with Remote Relay Alarm (SD-A-454) (.dwg)
- B+II WaterWizard - Pneumatic Controls Temperature Limit System with Remote Relay Alarm (SD-A-454) (.pdf)
- B+II WaterWizard, SW1A+ - Multi Unit with Stratified Storage (SD-A-406) (.dwg)
- B+II WaterWizard, SW1A+ - Multi Unit with Stratified Storage (SD-A-406) (.pdf)
- B+II WaterWizard, SW1A+, SW1 B+ - Multi Unit with Accumulator (SD-A-444) (.dwg)
- B+II WaterWizard, SW1A+, SW1 B+ - Multi Unit with Accumulator (SD-A-444) (.pdf)
- B+II WaterWizard, SW1A+, SW1 B+ - Single Heater with Accumulator (SD-A-329) (.pdf)
- B+II WaterWizard, SW1A+, SW1B+ - Multi Unit in Parallel (SD-A-327) (.dwg)
- B+II WaterWizard, SW1A+, SW1B+ - Multi Unit in Parallel (SD-A-327) (.pdf)
- B+II WaterWizard, SW1A+, SW1B+ - Single Heater (SD-A-326) (.dwg)
- B+II WaterWizard, SW1A+, SW1B+ - Single Heater (SD-A-326) (.pdf)
- B+II WaterWizard, SW1A+, SW1B+ - Single Heater with Accumulator (SD-A-329) (.dwg)
- B+II WaterWizard, SW1A+, SW1B+ - Single Heater with Stratified Storage (SD-A-328) (.dwg)
- B+II WaterWizard, SW1A+, SW1B+ - Single Heater with Stratified Storage (SD-A-328) (.pdf)
- B+II WaterWizard, SW1A+, SW1B+, WW3E+, SWDW - Electronic Control Box Layout (.pdf)
