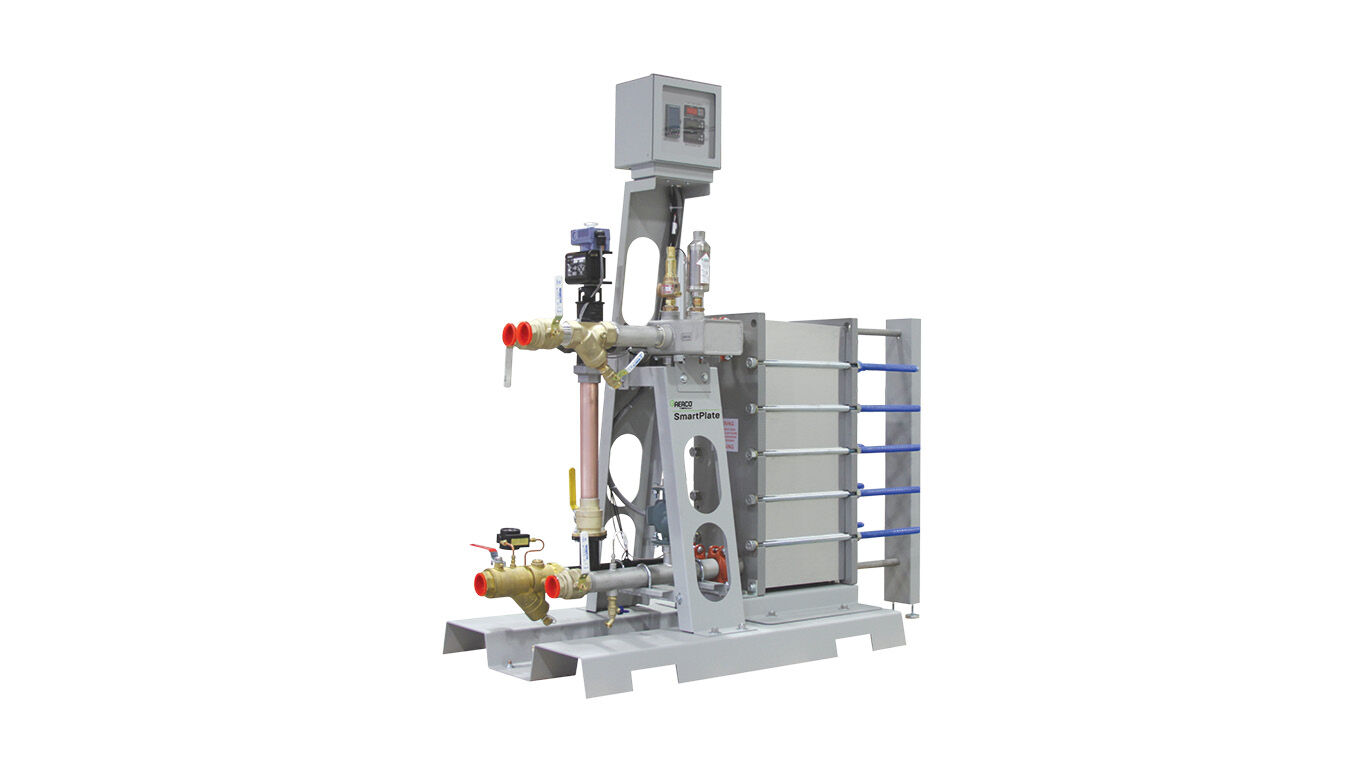

SmartPlate Double Wall
Plate and Frame double wall water heaters, Turn-key tankless solution that ships fully assembled, Five sizes from 500 to 4500 MBH
SmartPlate Double Wall
Plate and Frame double wall water heaters, Turn-key tankless solution that ships fully assembled, Five sizes from 500 to 4500 MBH
Features
- Plate and Frame double wall water heaters
- Turn-key tankless solution that ships fully assembled
- Five sizes from 500 to 4500 MBH
SmartPlate® double wall water heaters are specifically engineered to complement condensing boilers in low temperature applications to provide safe, reliable domestic hot water while promoting system-wide energy efficiency. Easy to install, these compact heaters offer single point header connections for domestic hot water, cold water, boiler water inlet, boiler water outlet and electrical power supply and are available in five sizes able to support loads ranging from 10 to 90 gallons per minute.
When paired with a condensing hydronic boiler, such as the Benchmark, SmartPlate water heaters can utilize boiler water as little as 5°F above the required potable water temperature to minimize radiation losses and maximize boiler efficiency.
Each fully packaged solution includes a control panel and sensors, a potable water side circulator with clean out connections, DHW drain valve, as well as shut-off valves and inlet strainers on both the boiler water and DHW sides. To ensure longevity, all water wetted (potable water side) parts are stainless steel, copper or copper alloy materials.
Features and Benefits
- Lower return water temperature increases overall plant efficiencies when paired with condensing space heating system
- Precisely matches energy input to system’s load while maintaining a ±4°F temperature control
- Two-way or three-way valve configuration
- Ultra-compact footprint of <10ft2
- Not impacted by poor water quality
- Low operating costs
- 200 PSIG domestic side operation capable
- Fully modulating variable primary input
- Packaged with controller and 3-way electronic valve
- Field adjustable for 2- or 3-way application
- Supports BAS Integration
- All stainless steel, copper or copper alloy wetted (potable water side) surfaces
- Five sizes (500 to 4500) MBH support up to 90 gpm loads
Supports a Variety of Applications
- LTBW; up to 150 PSIG, 250°F
- Set point range 50°F to 180°F
- Single or multiple installation
- Ideal for New or Retrofit
- DHW: Up to 200 PSIG
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific SmartPlate Double Wall
No results found
Download CAD Files
-
- Benchmark - Combination Heating and Domestic Hot Water Piping (SD-A-1124) (.dwg)
- Benchmark - Combination Heating and Domestic Hot Water Piping (SD-A-1124) (.pdf)
- Benchmark - Space Heating DHW SmartPlate Applications (SD-A-1187) (.dwg)
- Benchmark - Space Heating DHW SmartPlate Applications (SD-A-1187) (.pdf)
- Benchmark - Space Heating DHW-SP (SD-A-1188) (.dwg)
- Benchmark - Space Heating DHW-SP (SD-A-1188) (.pdf)
- Benchmark 5000-6000 - Multi Unit CCP SmartPlate 2Port Buffer Tank Installation (SD-A-1168) (.dwg)
- Benchmark 5000-6000 - Multi Unit CCP SmartPlate 2Port Buffer Tank Installation (SD-A-1168) (.pdf)
- Benchmark 750-1000 - Space Heating, Snowmelt, Pool Heat Application (SD-A-1091) (.dwg)
- Benchmark 750-1000 - Space Heating, Snowmelt, Pool Heat Application (SD-A-1091) (.pdf)
- Benchmark 750-1000 - Zero Side Clearance (2 Pairs) with ACS, 2 Port Buffer Tank and SmartPlate, Primary Variable Flow (SD-A-938) (.dwg)
- Benchmark 750-1000 - Zero Side Clearance (2 Pairs) with ACS, 2 Port Buffer Tank and SmartPlate, Primary Variable Flow (SD-A-938) (.pdf)
- Benchmark 750-1000 - Zero Side Clearance (2 Pairs) with ACS, 4 Port Buffer Tank and SmartPlate, Primary Variable Flow (SD-A-937) (.dwg)
- Benchmark 750-1000 - Zero Side Clearance (2 Pairs) with ACS, 4 Port Buffer Tank and SmartPlate, Primary Variable Flow (SD-A-937) (.pdf)
- Benchmark S 1500-2000 - Multi Unit Dual Return with SmartPlate, Tank (SD-A-1087) (.dwg)
- Benchmark S 1500-2000 - Multi Unit Dual Return with SmartPlate, Tank (SD-A-1087) (.pdf)
- Benchmark S 1500-2000, SmartPlate - Combination Heating and DHW Piping with Boiler Buffer Tank Temp Boost (SD-A-993) (.dwg)
- Benchmark S 1500-2000, SmartPlate - Combination Heating and DHW Piping with Boiler Buffer Tank Temp Boost (SD-A-993) (.pdf)
- Benchmark S 6000, SmartPlate - Zero Side Clearance (2 Pairs) with ACS, 4 Port Buffer Tank, Primary Variable Flow (SD-A-955) (.dwg)
- Benchmark S 6000, SmartPlate Zero Side Clearance (2 Pairs) with ACS, 4 Port Buffer Tank, Primary Variable Flow (SD-A-955) (.pdf)
- Benchmark Series - Multi Unit Dual Return with SmartPlate, Tank (SD-A-1088) (.dwg)
- Benchmark Series - Multi Unit Dual Return with SmartPlate, Tank (SD-A-1088) (.pdf)
- Benchmark Series - Space Heating DHW SmartPlate Applications (SD-A-1092) (.dwg)
- Benchmark Series - Space Heating DHW SmartPlate Applications (SD-A-1092) (.pdf)
- Benchmark Series - Space Heating DHW SmartPlate Snowmelt Applications (SD-A-1093) (.dwg)
- Benchmark Series - Space Heating DHW SmartPlate Snowmelt Applications (SD-A-1093) (.pdf)
- Benchmark Series - Space Heating DHW SmartPlate Snowmelt Applications (SD-A-1119) (.dwg)
- Benchmark Series - Space Heating DHW SmartPlate Snowmelt Applications (SD-A-1119) (.pdf)
- Benchmark, SmartPlate - Combination Heating and DHW Piping (SD-A-1123) (.dwg)
- Benchmark, SmartPlate - Combination Heating and DHW Piping (SD-A-1123) (.pdf)
- MFC - Multi Unit, SmartPlate, Seq Valves Combination Plant Installation (SD-A-1062) (.dwg)
- MFC - Multi Unit, SmartPlate, Seq Valves Combination Plant Installation (SD-A-1062) (.pdf)
- MFC, SmartPlate - Multi Unit, Seq Valve, Snowmelt (SD-A-1076) (.dwg)
- MFC, SmartPlate - Multi Unit, Seq Valve, Snowmelt (SD-A-1076) (.pdf)
- SmartPlate - Anchor Bolt Location (SD-A-771) (.dwg)
- SmartPlate - Anchor Bolt Location (SD-A-771) (.pdf)
- SmartPlate - Controls Communication Guide (.pdf)
- SmartPlate - Single Unit with Accumulator (SD-A-776) (.dwg)
- SmartPlate - Single Unit with Accumulator (SD-A-776) (.pdf)
- SmartPlate - Single Unit with Stratified Tank (SD-A-774) (.dwg)
- SmartPlate - Single Unit with Stratified Tank (SD-A-774) (.pdf)
- SmartPlate - Single Unit, ADMS, Storage Tank - Piping Drawing (SD-A-1148) (.dwg)
- SmartPlate - Single Unit, ADMS, Storage Tank - Piping Drawing (SD-A-1148) (.pdf)
- SmartPlate - with Benchmark and Buffer Tank with Zone or Summer Pump (SD-A-793) (.dwg)
- SmartPlate - with Benchmark and Buffer Tank with Zone or Summer Pump (SD-A-793) (.pdf)
- SmartPlate - with Benchmark and Buffer Tank Zone (SD-A-792) (.dwg)
- SmartPlate - with Benchmark and Buffer Tank Zone (SD-A-792) (.pdf)
- SmartPlate - with Benchmark and Buffer Tank, DHW Only (SD-A-794) (.dwg)
- SmartPlate - with Benchmark and Buffer Tank, DHW Only (SD-A-794) (.pdf)
- SmartPlate - with Boiler Side Buffer Tank Zone (SD-A-783) (.dwg)
- SmartPlate - with Boiler Side Buffer Tank Zone (SD-A-783) (.pdf)
- SmartPlate - with Non-Condensing Boiler Bypass (SD-A-784) (.dwg)
- SmartPlate - with Non-Condensing Boiler Bypass (SD-A-784) (.pdf)
- SmartPlate and Modulex - Single Unit with Buffer Tank Installation (SD-A-1026) (.dwg)
- SmartPlate and Modulex - Single Unit with Buffer Tank Installation (SD-A-1026) (.pdf)
- SmartPlate Double Wall - Multi Unit Installation (SD-A-773) (.pdf)
- SmartPlate Double Wall - Single Unit Piping (SD-A-772) (.pdf)
- SmartPlate DW - Bill of Materials - Parts List (PL-A-184) (.pdf)
- SmartPlate DW - Control Box Layout (SD-A-770) (.dwg)
- SmartPlate DW - Control Box Layout (SD-A-770) (.pdf)
- SmartPlate DW - Dimensional Drawing (AP-A-847) (.dwg)
- SmartPlate DW - Dimensional Drawing (AP-A-847) (.pdf)
- SmartPlate DW 113 - REVIT
- SmartPlate DW 23 - REVIT
- SmartPlate DW 23, 32 - IGES
- SmartPlate DW 32 - REVIT
- SmartPlate DW 42 - REVIT
- SmartPlate DW 42, 61, 113 - IGES
- SmartPlate DW 61 - REVIT
- SmartPlate DW 61 - REVIT (.pdf)
- SmartPlate DW 61 - REVIT (.rfa)
- SmartPlate, Modulex - with Buffer Tank (SD-A-796) (.dwg)
- SmartPlate, Modulex - with Buffer Tank (SD-A-796) (.pdf)
- SmartPlate, Modulex - with Buffer Tank, DHW Only (SD-A-809) (.dwg)
- SmartPlate, Modulex - with Buffer Tank, DHW Only (SD-A-809) (.pdf)
- SPDW 113 - 3D (.pdf)
- SPDW 113 - REVIT (.rfa)
