LFM127-8

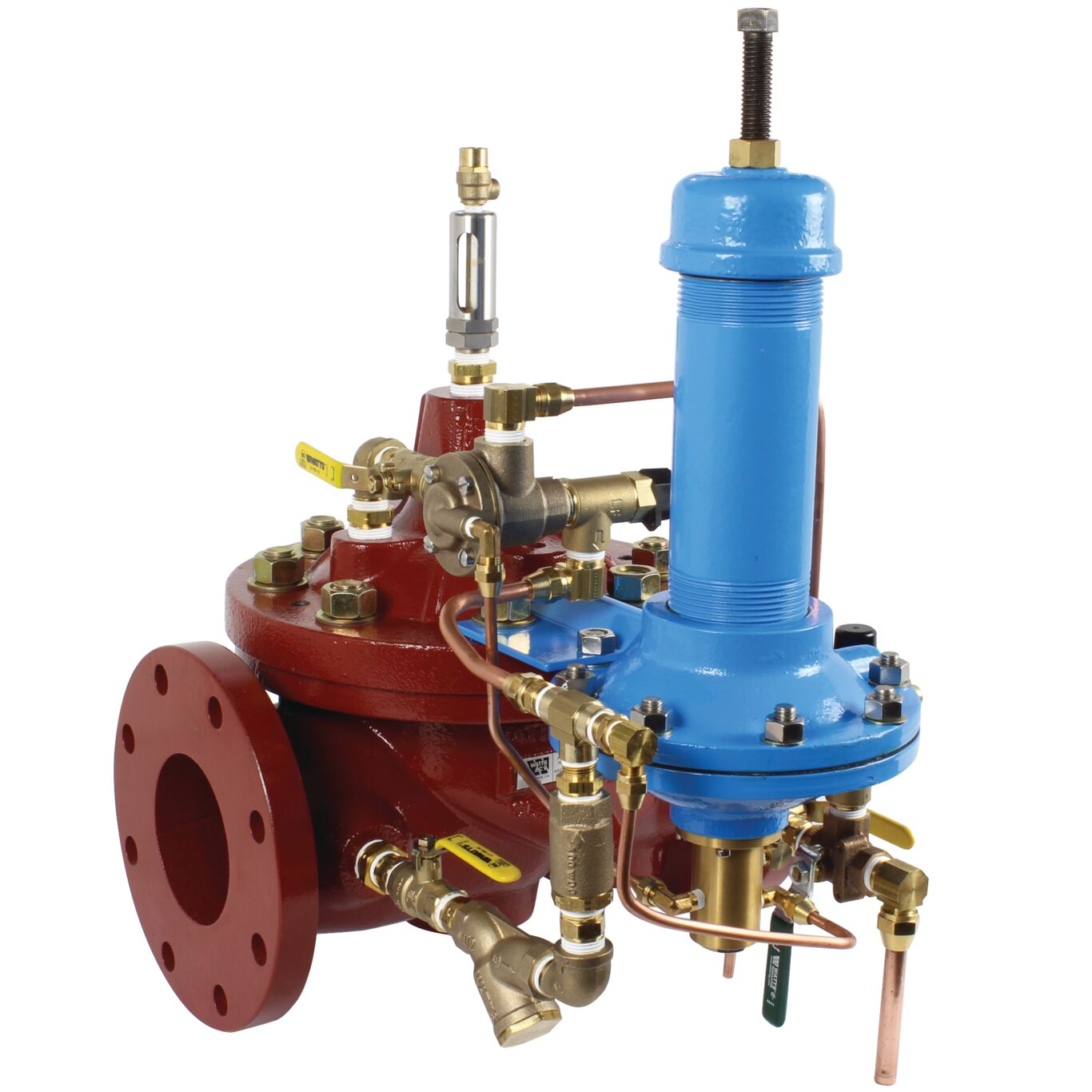

One-Way Flow Altitude Valve with Pressure Sustaining
LFM127-8
One-Way Flow Altitude Valve with Pressure Sustaining
Features
- Allows flow into a reservoir or elevated storage tank
- Sustains a minimum upstream pressure during filling
- Body and cover are constructed of strong and durable ductile iron (ASTM A536)
- Simplified and efficient design is easy and economical to maintain
Series LFM127-8, LFM1127-8 One Way Flow Altitude Valve with Pressure Sustaining Feature is designed to open, allowing flow into a reservoir or elevated storage tank (tank fill), and close drip tight when high water level is achieved. The valve also throttles to sustain a minimum upstream pressure during tank filling operations. It controls water level by remotely sensing static tank head pressure through a field installed sensing line, and opens when the water level is below the adjustable setpoint and closes drip tight when the level is above the adjustable setpoint.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFM127-8
