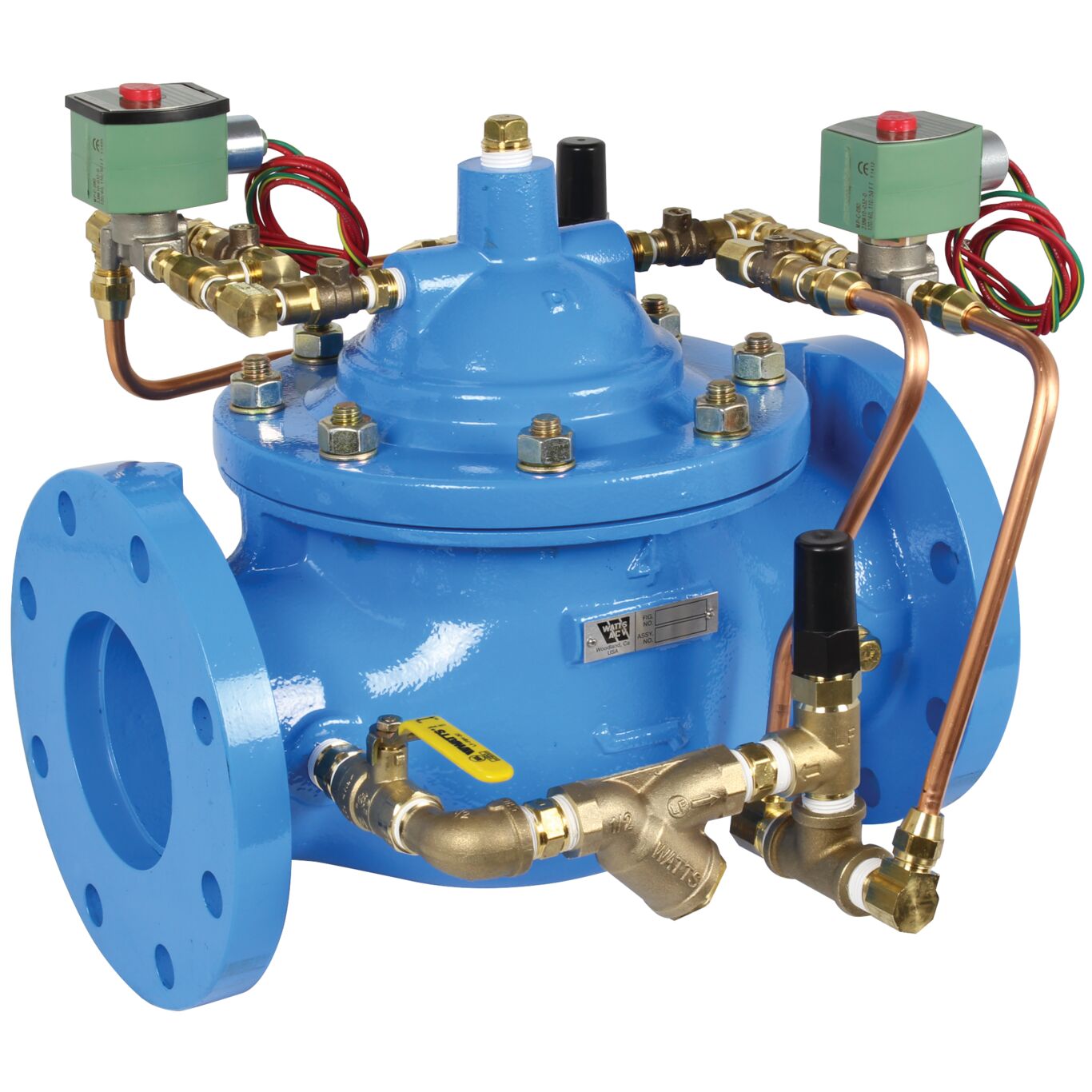

LFF113-25

Solenoid (On-Off) Control Valve with Hydraulic Check for 4 & smaller

Series LFF113-25, LFF1113-25 Solenoid Control Valve with Hydraulic Check Feature is designed to open fully or close drip-tight as commanded by a 3-Way Solenoid Pilot, and close drip-tight when downstream pressure becomes greater than upstream pressure. The solenoid may be activated by a pressure switch, level probe, or any other electrical on-off device. The valve also has provisions for manual operation in the event of power outage. Engaging the Solenoid Manual operator simulates power to the solenoid, manually controlling the main valve. Disengaging the Solenoid Manual operator returns the valve to electrical on-off service.

Features

Pump open and close functions are commanded by a 3-Way Solenoid Pilot
Solenoid may be activated by a pressure switch, level probe, or any other electrical on-off device.
Has provisions for manual operation in the event of a power outage
Body and cover are constructed of strong and durable ductile iron (ASTM A536)

Literature

Select a Model

Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFF113-25

View all models

No results found

Find a Sales Representative

Find a Wholesaler/Distributor

View Warranty Customer Support Access BIM Drawings

Share this Product

Build Your Spec in Under 5 Minutes

Learn More

Approval/Certification Information

For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:

ASSE	CSA	FM Approvals	NSF
UL	ULC	USC	WQA
