LFPV20CB
×
![]()
Part of the LFPV20CB Series
Ordering Code: 9108-02
UPC: 098268279429
Lead Free: YES

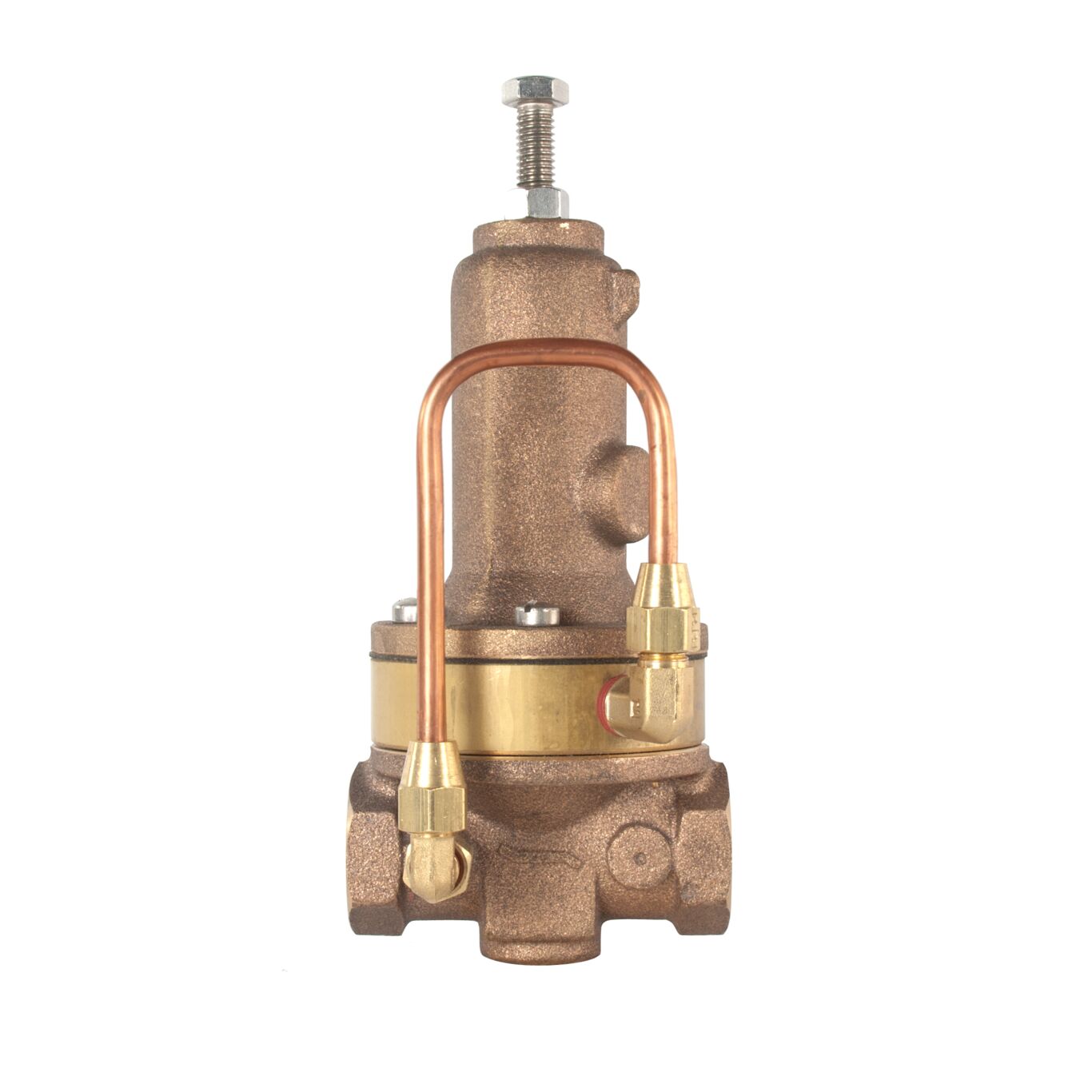

1/2 Inch Direct Relief UL/FM Valve 20-200 PSIG
This 1/2 inch 20-200 psig model LFPV20CB, is a direct sensed direct acting diaphragm actuated system pressure relief valve. The intended installations are in systems where it is anticipated that the internal pressure exceeds the rated pressure of the system components or for installation downstream of a pressure reducing valve in accordance with ANSI/NFPA 13.
Features
- 1/2 IN threaded
- UL/FM approved
- 20-200 PSIG
- Lead free brass
| Specifications | |
|---|---|
| ArmorTek Technology | No |
| Brand | Watts |
| Buy American Act Compliant | YES |
| EAN | 098268279429 |
| Inlet Connection Size | 1/2 IN |
| Inlet Connection Type | Female Threaded |
| Lead Free | YES |
| Outlet Connection Size | 1/2 IN |
| Outlet Connection Type | Female Threaded |
| Part Number | 9108-02 |
| Series | LFPV20CB |
| Warranty Name | Standard Watts Warranty |
