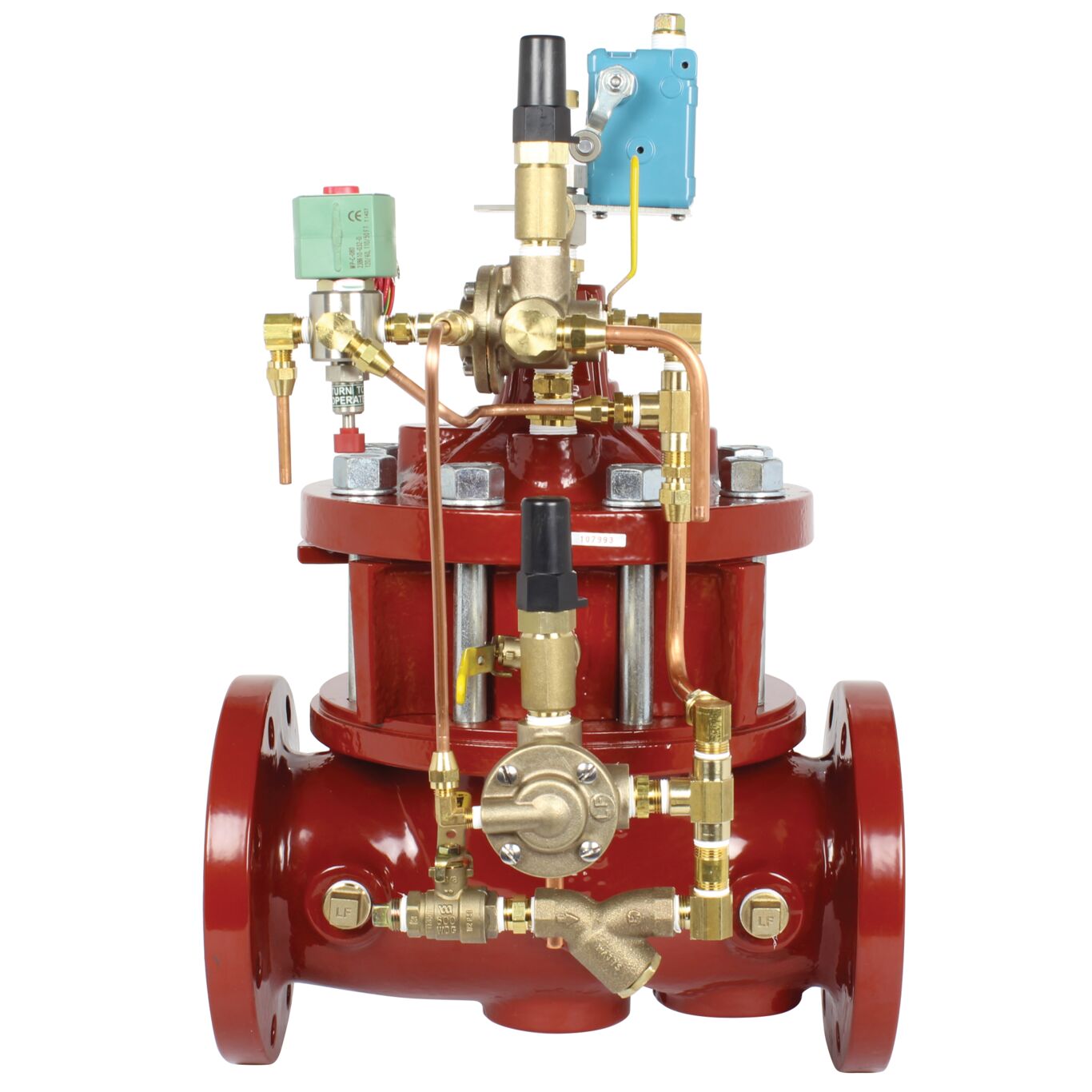

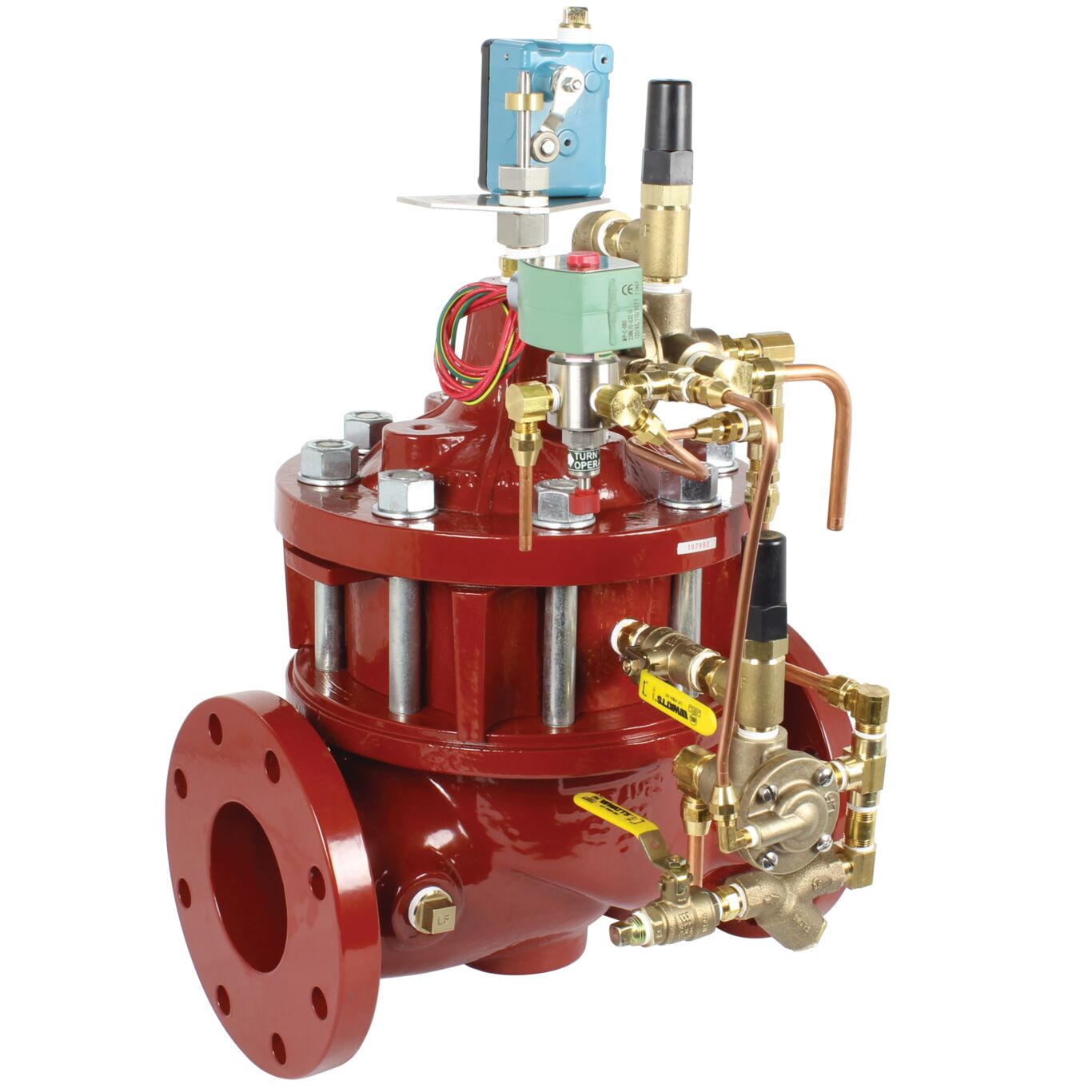

LFM513-5
Dual Chamber Well Pump Control Valve with Mechanical Check
LFM513-5
Dual Chamber Well Pump Control Valve with Mechanical Check
Features
- Minimizes surges associated with the starting and stopping of pumps
- Mechanical check feature provides immediate check action when flow ceases.
- Body and cover are constructed of strong and durable ductile iron (ASTM A536)
- Simplified and efficient design is easy and economical to maintain
Series LFM513-5, LFM1513-5 Pump Control Valve is designed to minimize the surges associated with the starting and stopping of pumps. The valve opens at an adjustable rate upon pump start-up, and closes at an adjustable rate upon pump shut-off. When the valve is near closed a limit switch is tripped, turning the pump off. The pump starts and stops against a closed valve, and has provisions for manual operation in the event of power outages. The valve also incorporates a two-piece telescoping stem design, which acts as a mechanical check feature, that closes preventing reverse flow the moment flow ceases.
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
