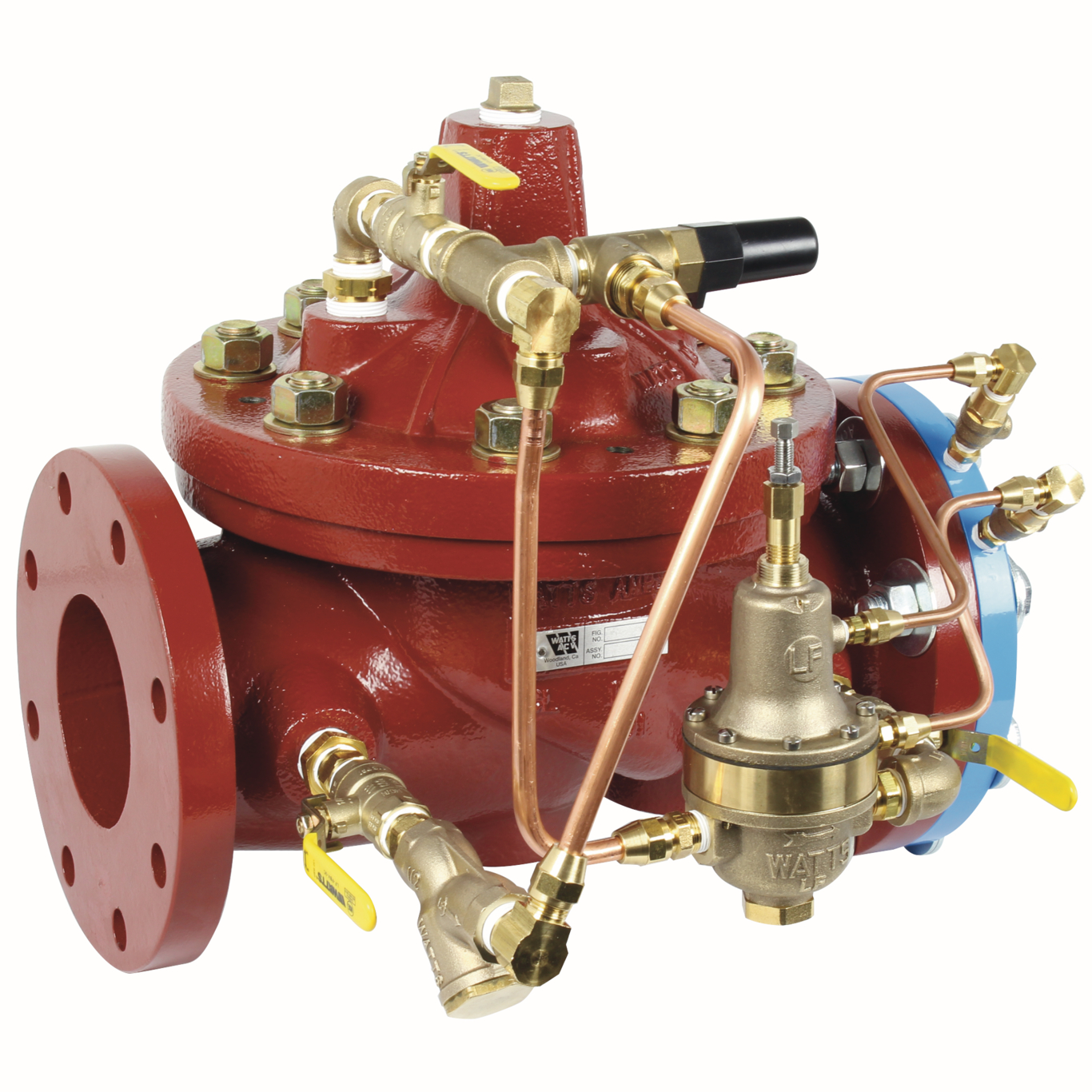

LFM114-1
Rate-of-Flow Control Valve with Solenoid (On-Off)
Series LFM114-1, LFM1114-1 Rate of Flow Control Valve with Solenoid (On-Off) Feature is designed to automatically limit flow rate to a constant, adjustable, maximum. The throttling action of the valve is controlled by an externally mounted modulating control pilot, which senses differential pressure across a remote mounted orifice plate (field installed). The valve also acts as a Solenoid (On-Off) Control Valve, opening to allow flow control action or closing drip-tight as commanded by the solenoid pilot. The Orifice Plate is factory calibrated based upon minimum, maximum, and continuous flow rate requirements.
Features
- Automatically limits flow rate to a constant adjustable maximum
- Flow rate is controlled by an externally mounted modulating control pilot
- Valve acts as an Solenoid On-Off Control Valve as commanded by the solenoid pilot.
- Orifice Plate is factory calibrated to meet flow rate requirements
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFM114-1
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
