S114-8
Rate-of-Flow Control Valve with Pressure Sustaining

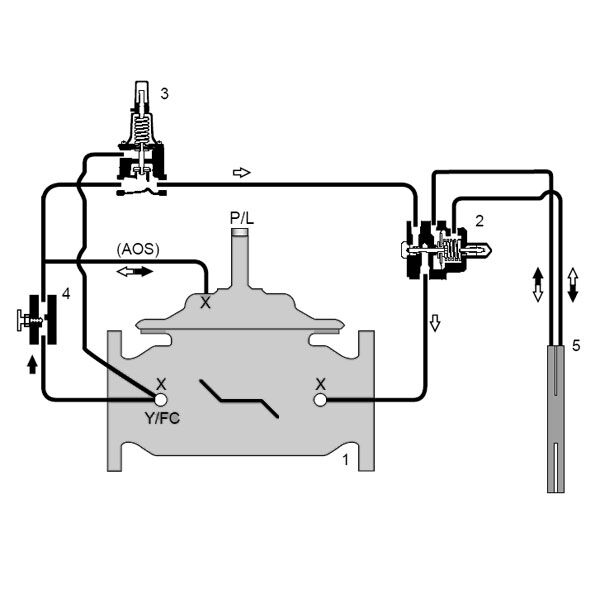

Series S114-8, S1114-8 Rate of Flow Control Valve with Pressure Sustaining Feature is designed to automatically limit flow rate to a constant, adjustable, maximum, and sustain a minimum upstream pressure. Flow control throttling action is controlled by an externally mounted modulating Flow Control Pilot, which senses differential pressure across a remote mounted orifice plate (field installed). Pressure sustaining throttling action is controlled by a separate Pressure Sustaining Control Pilot, which senses upstream pressure. The Orifice Plate is factory calibrated based upon minimum, maximum, and continuous flow rate requirements.
Features
- Automatically limits flow rate to a constant adjustable maximum, and sustains a minimum upstream pressure
- Flow control throttling action is controlled by an externally mounted Flow Control Pilot
- Pressure sustaining throttling action is controlled by a separate Pressure Sustaining Control Pilot
- Lightweight Stainless Steel construction offers superior corrosion resistance for longer life
Literature
-
- Price List - Automatic Control Valves
- Price List - Watts ACV Controls and Accessories
- Schematic - S114-8
- Specification Sheet - ACV Ball Valves
- Specification Sheet - ACV Ball Valves (Spanish)
- Specification Sheet - LF60 Flo-Clean Strainer
- Specification Sheet - LF60 Flo-Clean Strainer (Spanish)
- Specification Sheet - Single Chamber - Full Port
- Specification Sheet - SSPV20C Pressure Relief, Sustaining or Backpressure Pilot
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific S114-8
