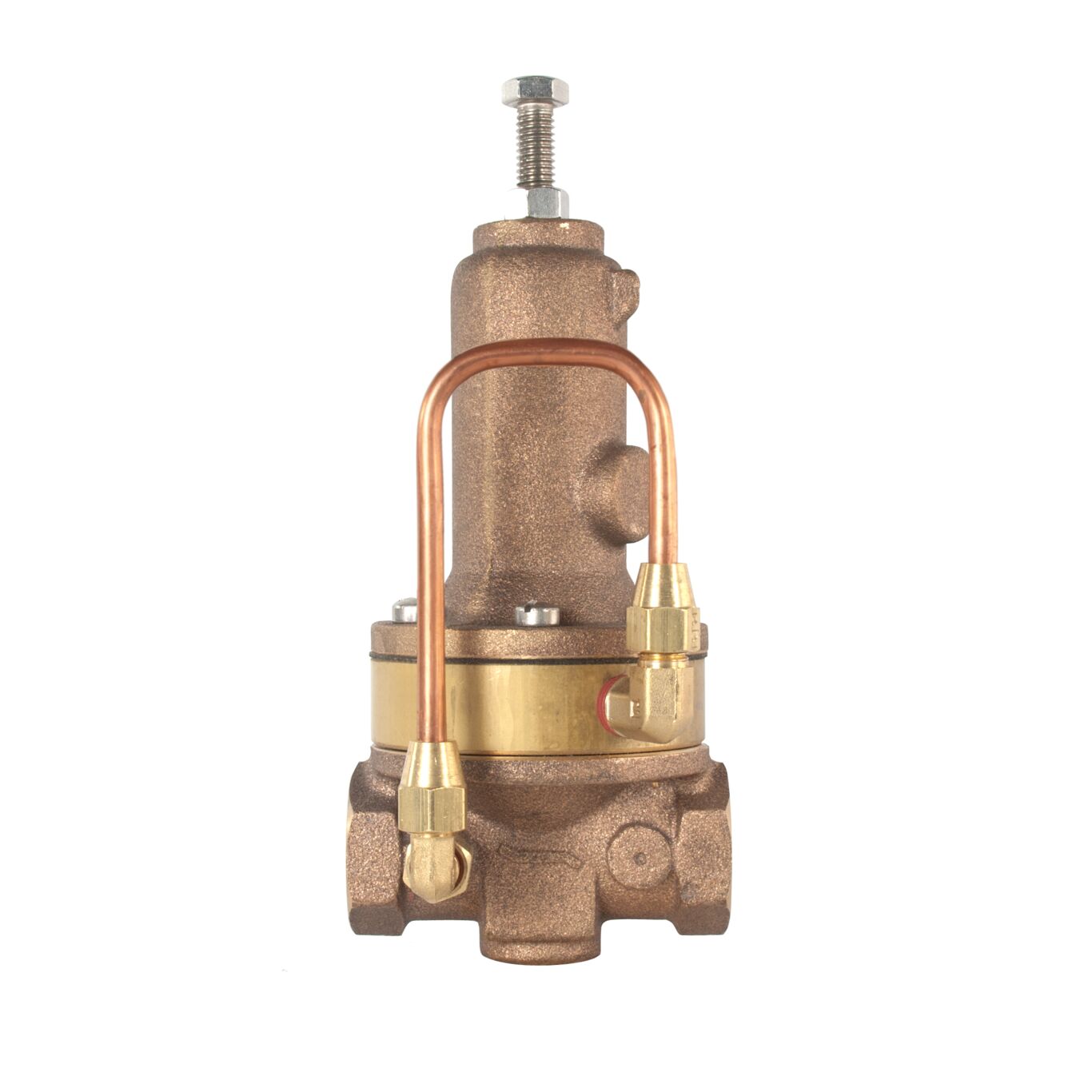

LFPV20CB
Pressure Relief Pilot
LFPV20CB Series is a direct sensed direct acting, diaphragm actuated Pressure Relief pilot. It is normally held closed by the force of the adjustable spring setting above the diaphragm. It modulates toward an open position when control pressure, exerting force below the diaphragm, exceeds the spring setpoint, and modulates toward a closed position when the control pressure falls below the spring setpoint. The LFPV20CB senses upstream pressure through a tapped inlet port. The large diaphragm-to-seat ratio allows it to open and close within close pressure tolerances. Turning the adjustment screw clockwise raises the control setpoint. Turning the adjustment screw counterclockwise lowers the control setpoint.
Features
- Direct sensed, direct acting diaphragm actuated System Pressure Relief Valve
- Used in systems where it is anticipated that the internal pressure of the system components exceeds the rated pressure
- Opens and closes within close pressure tolerances
- Top-mounted adjustment screw raises and lowers the control setpoints
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFPV20CB
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
