962GD
Ductile Iron One-Way Flow Altitude Valve with Pressure Sustaining Feature

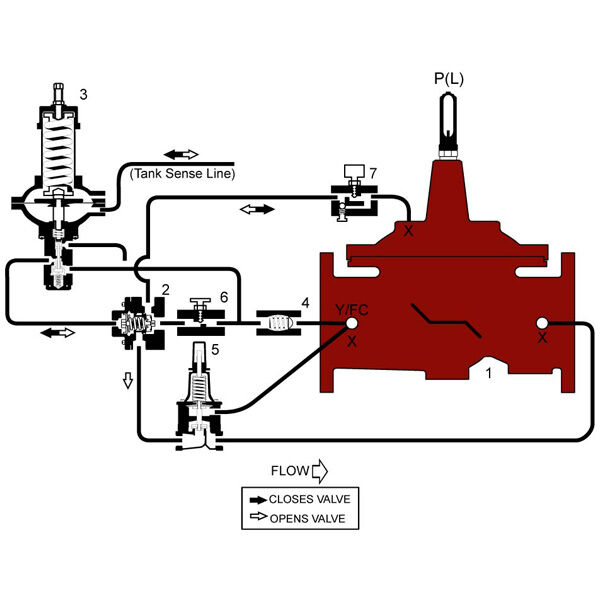

962GD (Globe) and 962AD (Angle) Series is designed to open, allowing flow into a reservoir or elevated storage tank (tank fill), and close drip tight when high water level is achieved. The valve also throttles to sustain a minimum upstream pressure during tank filling operations. It controls water level by remotely sensing static tank head pressure through a field installed sensing line, and opens when the water level is below the adjustable setpoint and closes drip tight when the level is above the adjustable setpoint.
Features
- Designed for tank fill applications
- Sustains a minimum upstream pressure during tank filling operations
- Water level is controlled remotely by sensing static tank head pressure through a field installed sensing line
- Opening and closing speeds and altitude and sustaining setpoints are adjustable
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 962GD
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
