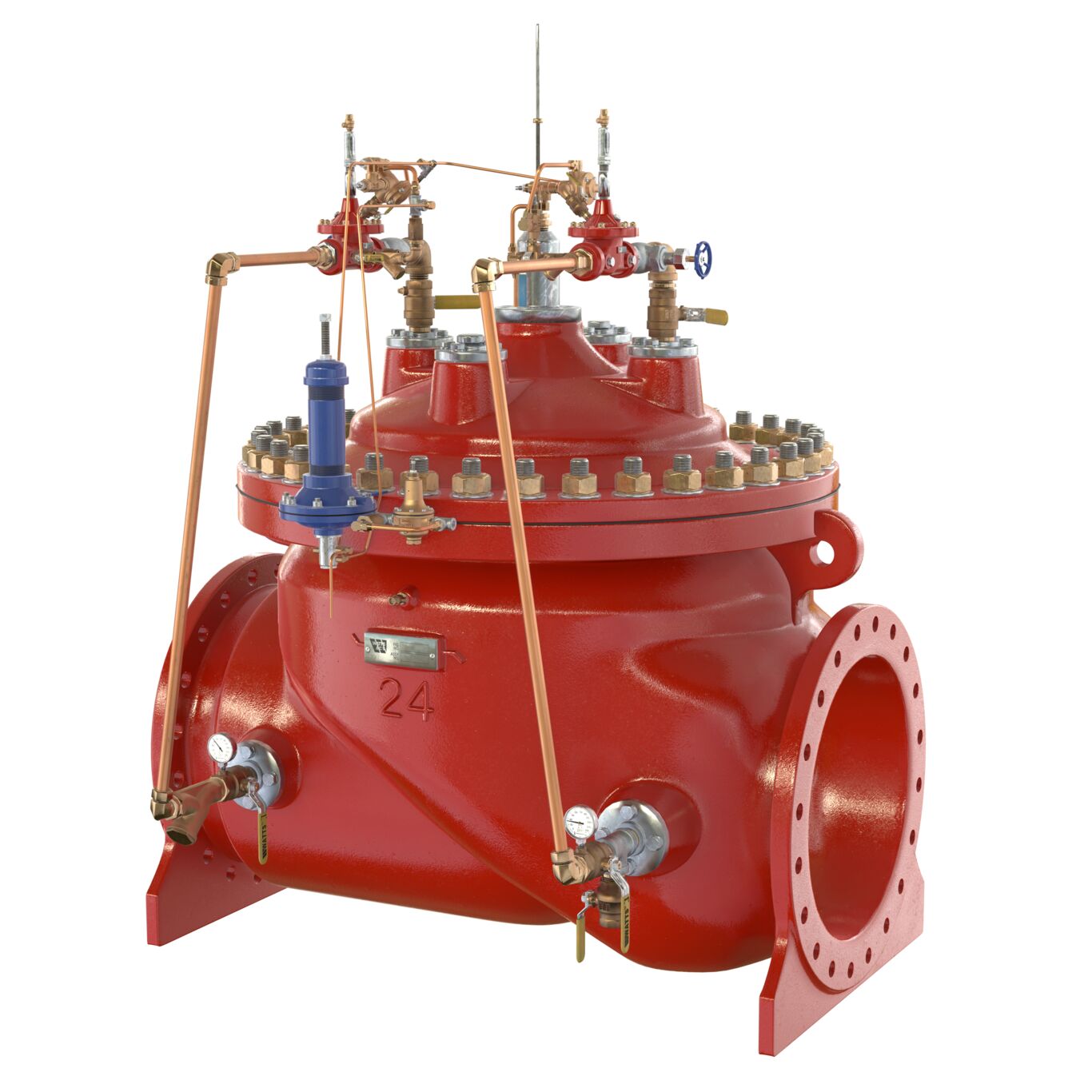

LFM127-11 Large
One-Way Flow Altitude Valve with Delayed Opening, For 20 and 24 IN

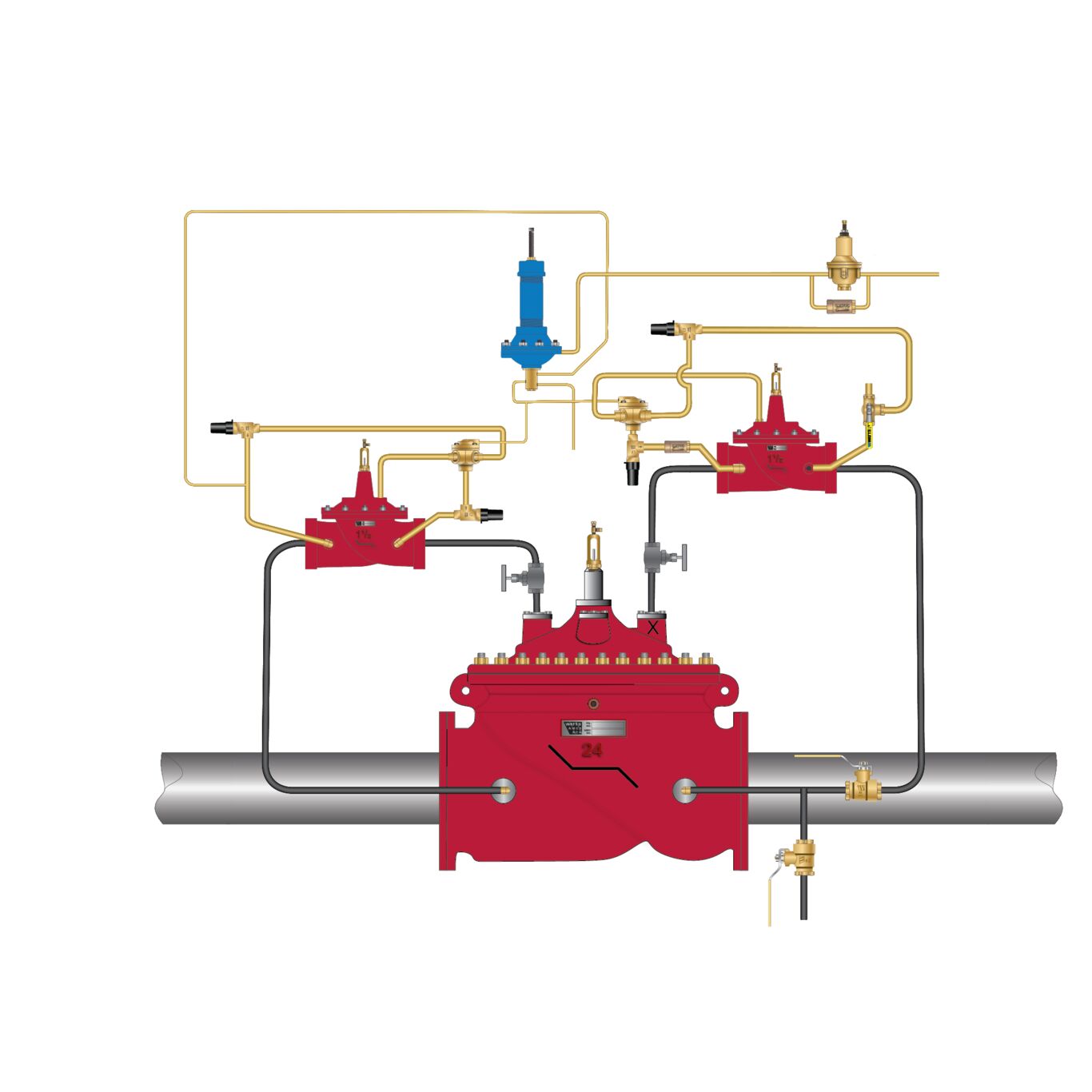

Series LFM127-11 Large, One Way Flow Altitude Valve with Delayed Opening Feature is designed to open, allowing flow into a reservoir or elevated storage tank (tank fill), and close drip tight when high water level is achieved. It controls water level by remotely sensing static tank head pressure through a field installed sensing line and opens when the water level is below the adjustable setpoint and closes drip tight when the level is above the adjustable setpoint. The valve also has an adjustable delayed opening feature, allowing a calculated draw-down of water level, before opening for tank fill operation to increase water circulation through the tank.
Large Diameter Automatic Control valves expand the Watts / Ames portfolio to include large valves for Municipal and other large water distribution systems.
Features
- Allows flow into a reservoir or elevated storage tank
- Allows a calculated "draw-down" of water level to increase tank circulation
- Water level is controlled by a field installed sensing line
- Body and cover are constructed of strong and durable ductile iron (ASTM A536)
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFM127-11 Large
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
