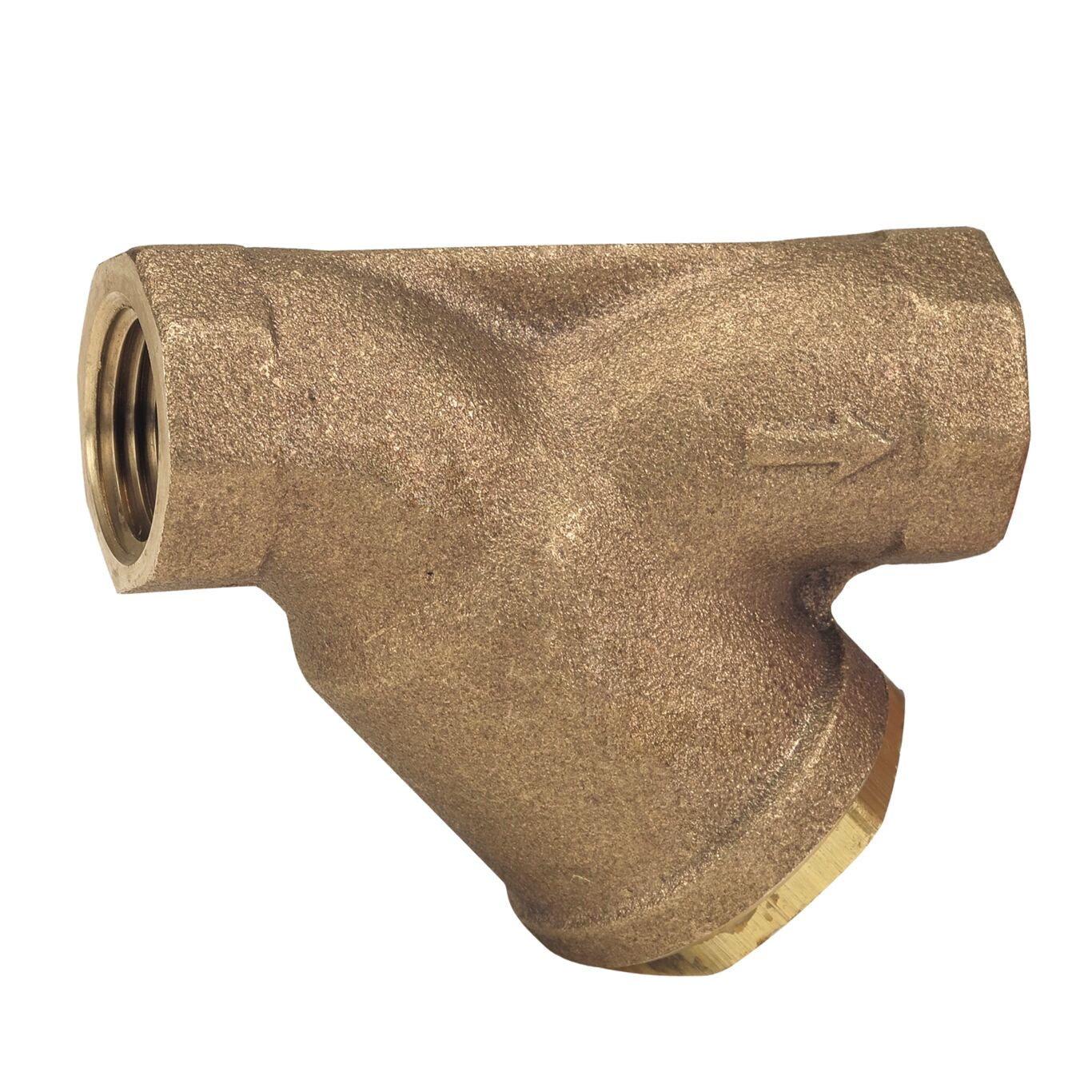

LF60-1
×
![]()
Y-Pattern Strainer
LF60-1 Series Y-Pattern Strainers are used to filter the fluid passing through the pilot circuit, and provide protection to pilot circuit speed controls and pilots. The filter element can be accessed for cleaning by removing the clean-out cap, or may be cleaned by installing an optional “blow-down” ball valve.
Features
- Filters fluids passing through the pilot circuit
- Provides protection to pilot circuit speed controls and pilots
- Clean by removing the clean-out cap, or by installing an optional “blow-down” ball valve
- Sizes 1/4 in. - 3/4 in. NPT
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LF60-1
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
