LFCP14-1
Rate-of-Flow Pilot

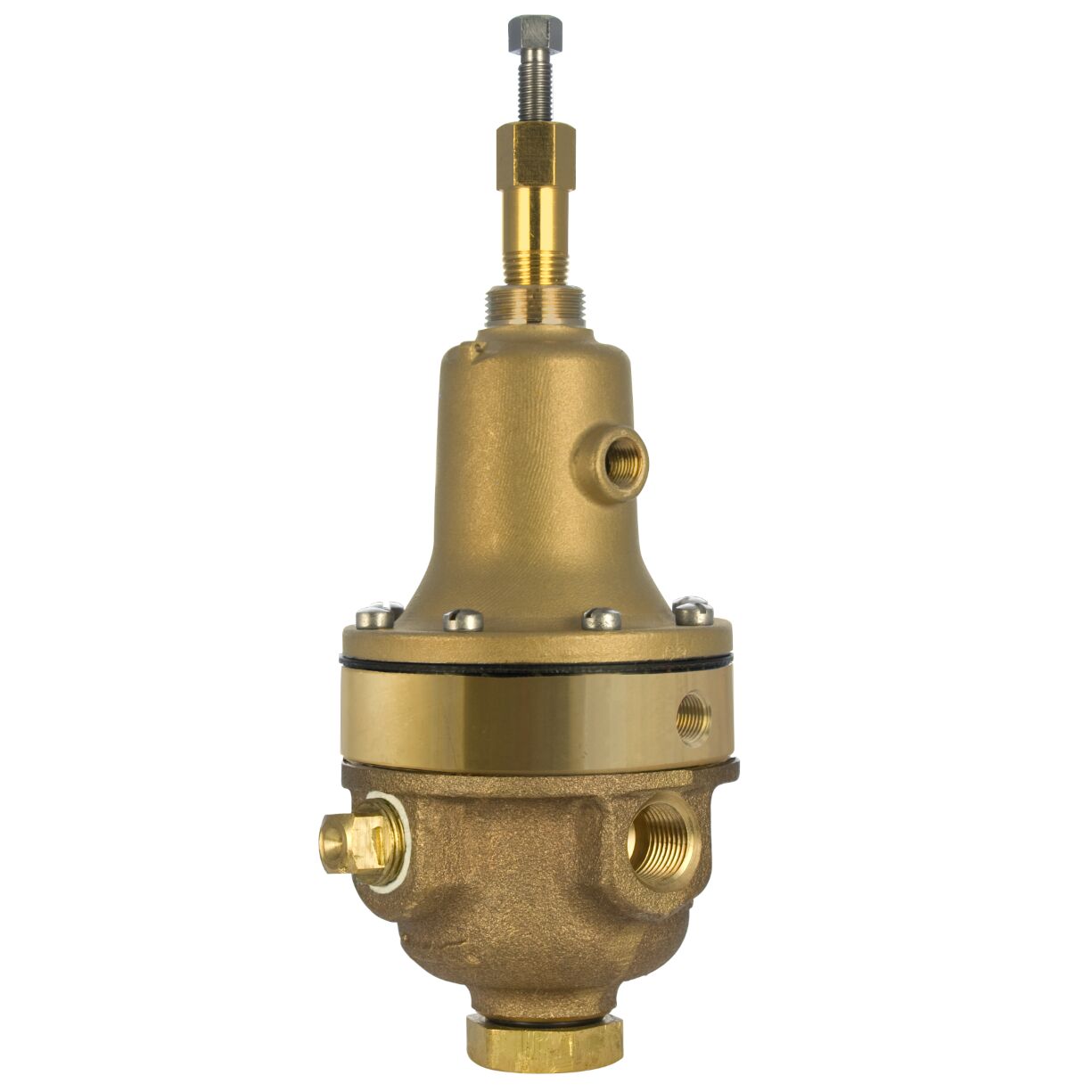

LFCP14-1 Series is a direct acting, diaphragm actuated Pilot that senses and responds to changes in a differential pressure signal. The differential pressure signal is usually created by an orifice plate located inline either upstream or downstream of the Main Valve. The Pilot has two sensing chambers, one above and one below the diaphragm. The low pressure signal is sensed above the diaphragm, and the high pressure signal is sensed below the diaphragm. The LFCP14-1 is equipped with one 3/8 in NPT inlet and three outlet ports for ease of installation, and two 1/8 in NPT sensing ports. The 1/8 in sensing port above the diaphragm is used to monitor the low pressure differential signal, and the sensing port below the diaphragm is used to monitor the high pressure differential signal.
Features
- Pilot senses and responds to changes in a differential pressure signal
- The differential pressure signal is usually created by an orifice plate located downstream of the Main Valve
- Flow rate can be adjusted with a top-mounted screw
- 3/8 in. NPT inlet, three outlet ports, and two 1/8 in. NPT sensing ports
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LFCP14-1
