LF910GD-48
Ductile Iron Pressure Reducing Control Valve with Low Flow By-Pass Feature

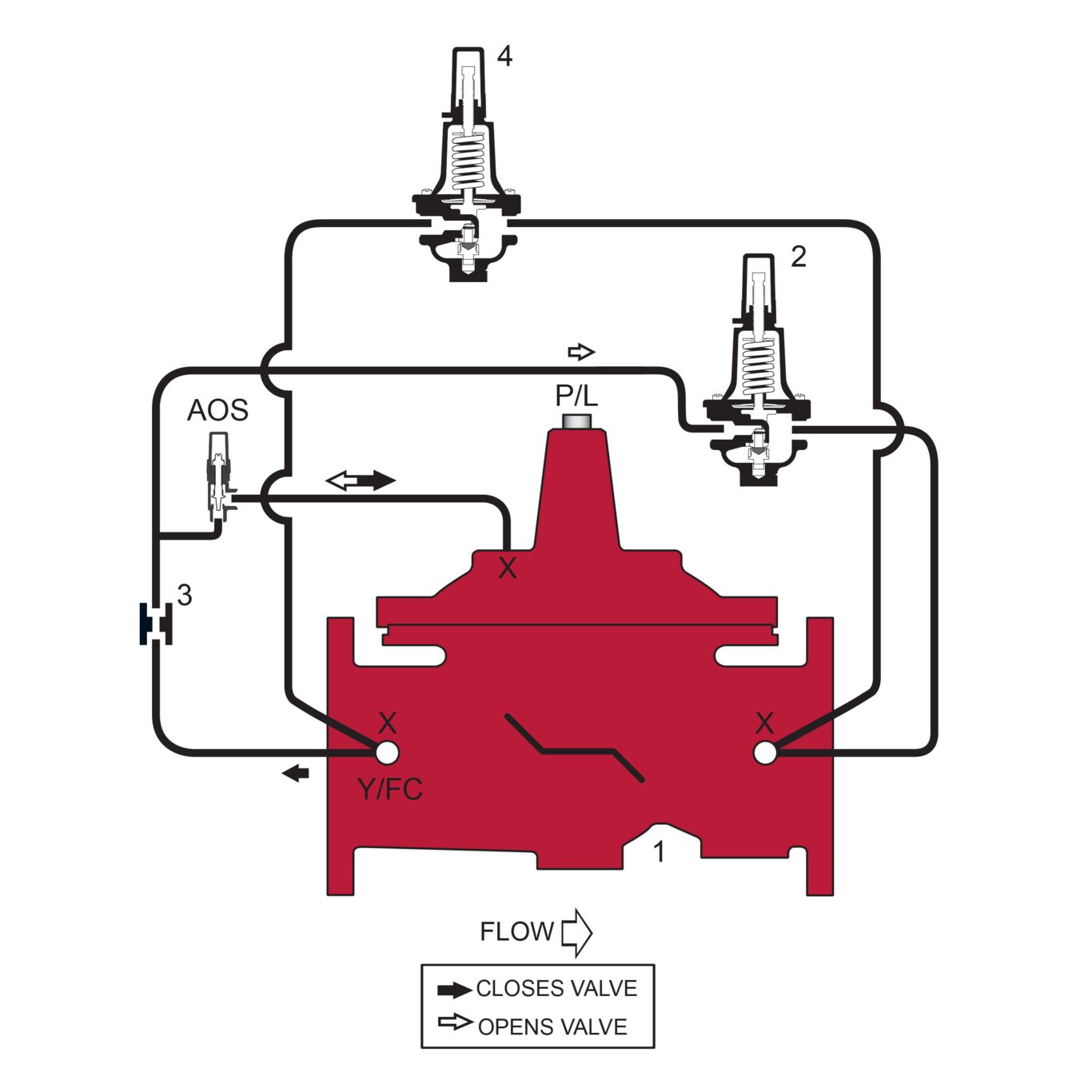

The LF910GD-48 (Globe) and LF910AD-48 (Angle) Series is designed to automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure regardless of varying flow rates. Flow requirements below the range of the main line Pressure Reducing Valve are handled by a separate, valve mounted, direct acting, Low Flow By-Pass Pressure Reducing Valve.
Features
- Automatically reduces a fluctuating higher upstream pressure to a constant lower downstream pressure
- Low Flow By-Pass controls at low flows and Main Line valve controls at high flow
- Reducing and Low Flow By-Pass setpoints are separately adjustable
- Sizes 1 1/4 in. to 16 in. (32mm to 400mm)
