982GD
Ductile Iron Single Chamber Pump Control Valve with Backpressure Feature

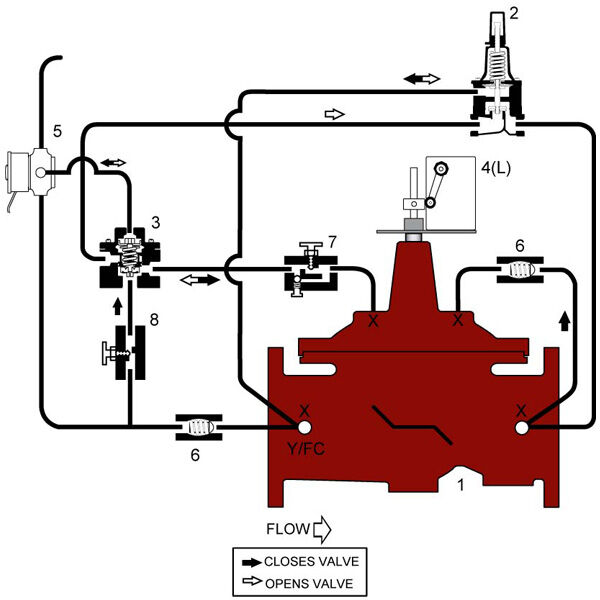

982GD (Globe) and 982AD (Angle) Series is designed to minimize the surges associated with the starting and stopping of pumps, and automatically throttle when pump discharge pressure falls below an adjustable minimum, increasing backpressure against the pump. The valve opens at an adjustable rate upon pump start-up, and closes at an adjustable rate upon pump shut-off. When the valve is near closed the limit switch is tripped, turning the pump off. The pump starts and stops against a closed valve. The Solenoid Pilot has provisions for manual operation in the event of power outage.
Features
- Minimizes the surges associated with the starting and stopping of pumps
- Automatically throttles when pump discharge pressure falls below an adjustable minimum, increasing backpressure against the pump
- Hydraulic Check Feature prevents flow reversal
- The Solenoid Pilot has provisions for manual operation in the event of power outage
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 982GD
No results found
Share this Product
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. For general information regarding any approval certification partners identified in the specification sheet, please visit our certification partners’ websites:
| ASSE | CSA | FM Approvals | NSF |
| UL | ULC | USC | WQA |
